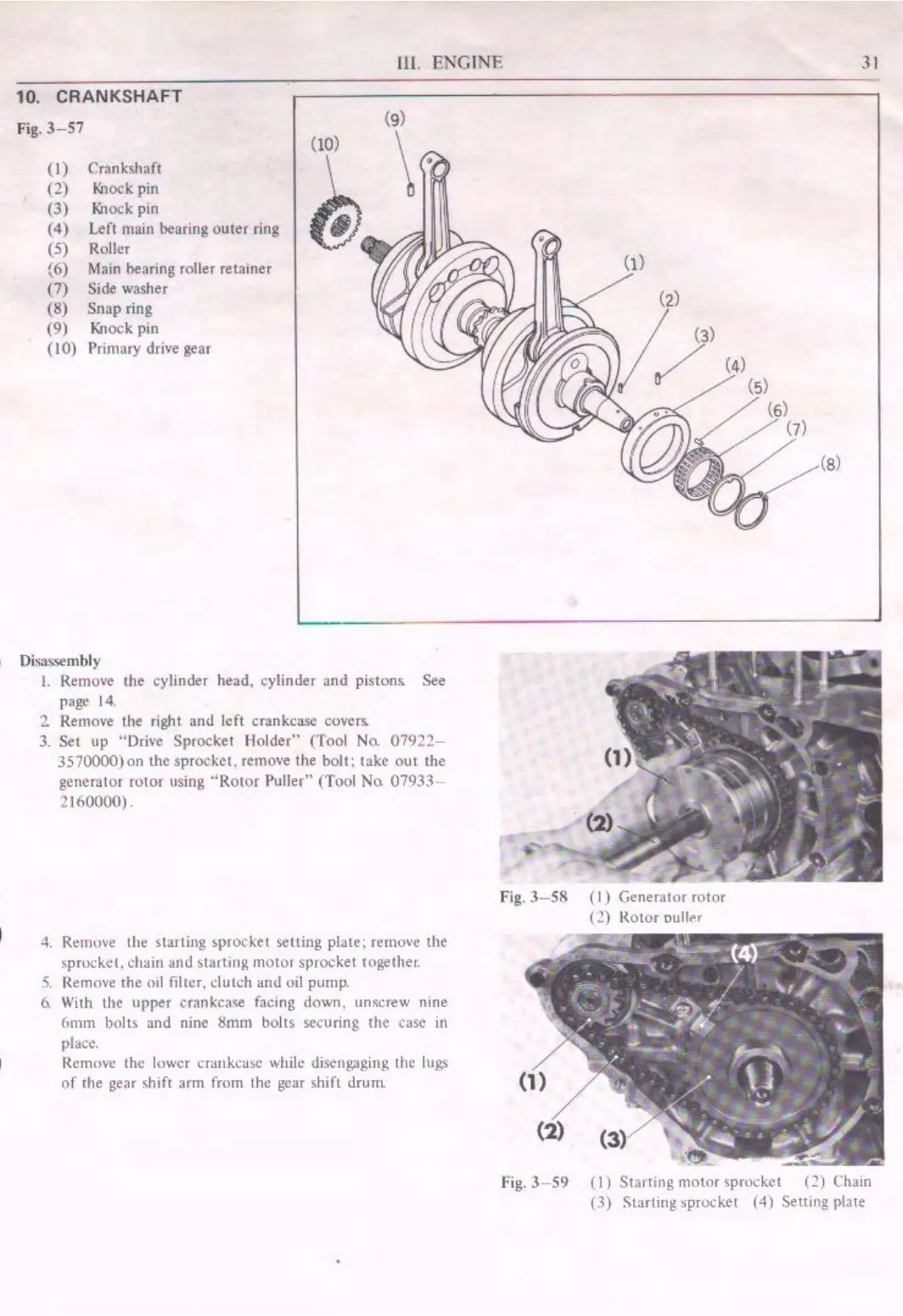

Il l. ENG I NE
31
10 . CRANKSHAFT
Fi g. 3-S7
(I) Crankshaft
(2) Knock pin
(3) I<i1ock pin
(4) Left main bearing outer ring
(5) Roller
(6) Main bearing roller retainer
(7) Side washer
(8) Snap ring
(9) Knock pin
(I 0) Prima,y drive gear
, Disassembly
I. Remove the cylinder head, cylinder and piston, See
page
14.
2 Remove the right and l eft crankcase covers.
3. Set up "Drive Sprocket Holder'' (Too l No. 07922-
3570000\on the sprockct,remove the bolt: take out the
generator ro tor using ''Rotor Pul ler" (Tool No 07933-
2160000).
4. Remove the starting sprocket selling plat e~ remo"e the
sprocket. dmin and starting motor spl'ocket rngether.
5. Remove the oil filter. dutch aml oil pump.
6. With the upper crankcase facing down , unscrew nine
(,mm
bolts and nine 8mm bolts securing the case in
place.
Remove the l
ower crankcase while disengaging the lugs
of the gear shift 11rm from the gear shift drum
•
(4)
Fig. 3-58 (I) Generatorrotor
( '.!) Rot or oull,r
(5)
(6)
(7)
(8)
fig. 3-59 (1) Starting mot.or sprocket (~) Chain
(3) Starting sprocket (4) Setting plate
