Honda CB200 User Manual

52
IV. FRAME
6. STEERING STEM

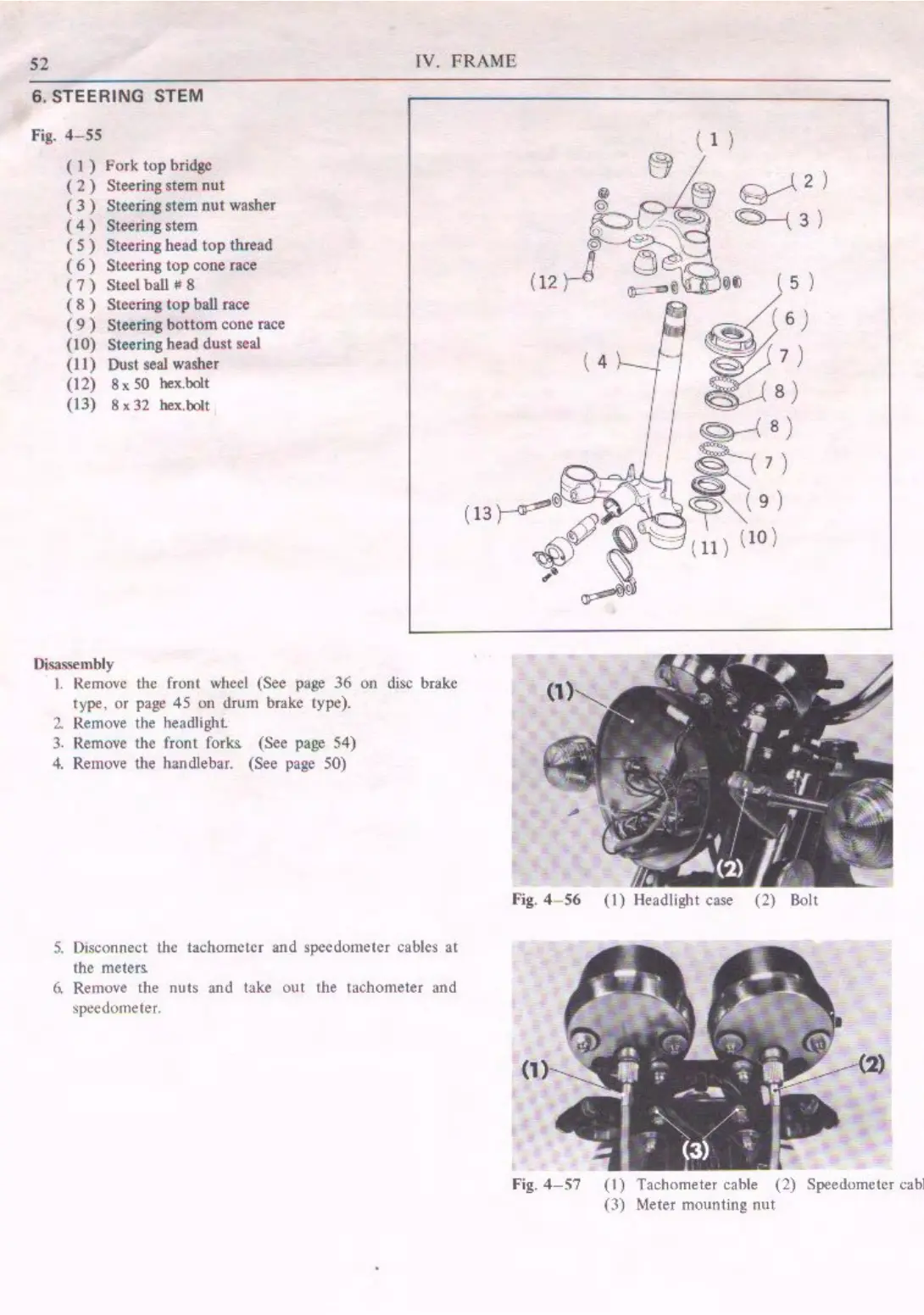

Fig. 4- 55
( 1 )
Fork top bridge
( 2 ) Steering stem
nut
( 3 ) Steering stem nut washer
( 4 ) Steering stem
( 5 ) Steering head top thread
( 6) Steering top cone race
( 7 ) Steel ball
~ 8 @fl
( 8 ) Steering top ball race
( 9 ) Steering bottom cone race
(10) Steering head dust seal
(II) Dust seal washer
(12) 8 dO hex.bolt
(13) 8 X 32 hex.bolt
Disassembly
I. Remove the front wheel (See page 36 on disc brake
type. or page 45 on drum brake type).
2 Remove the headlight
3. Remove the front forks (See page 54)
4. Remove the handlebar. (See page 50)
5.
Disconnect the tachometer and speedometer cables at
the meter~
6. Remove the nuts and take out the tachometer and
speedometer.
Fig . 4 - 56 (I) Headlight case (2) Bolt
(1)
Fi g. 4-57 (1) Tachometer ca hie (2) Speedometer cabl
(3) Meter mounting nut

Honda CB200 Specifications

General

Compression Ratio	9.0:1
Fuel System	Carburetor
Transmission	5-speed
Front Suspension	Telescopic fork
Rear Brake	Drum
Fuel Capacity	12 Liters
Rear Suspension	Twin shock absorbers
