V.
ELECTRICAL
69
4.
STARTING
SYSTEM
w
:t:
'.~>
'
'~
=
(I)
: ' =
(5)=
~-.:r--"
.&il'I.//
; : ( 4)
;,,
c _
___
, I

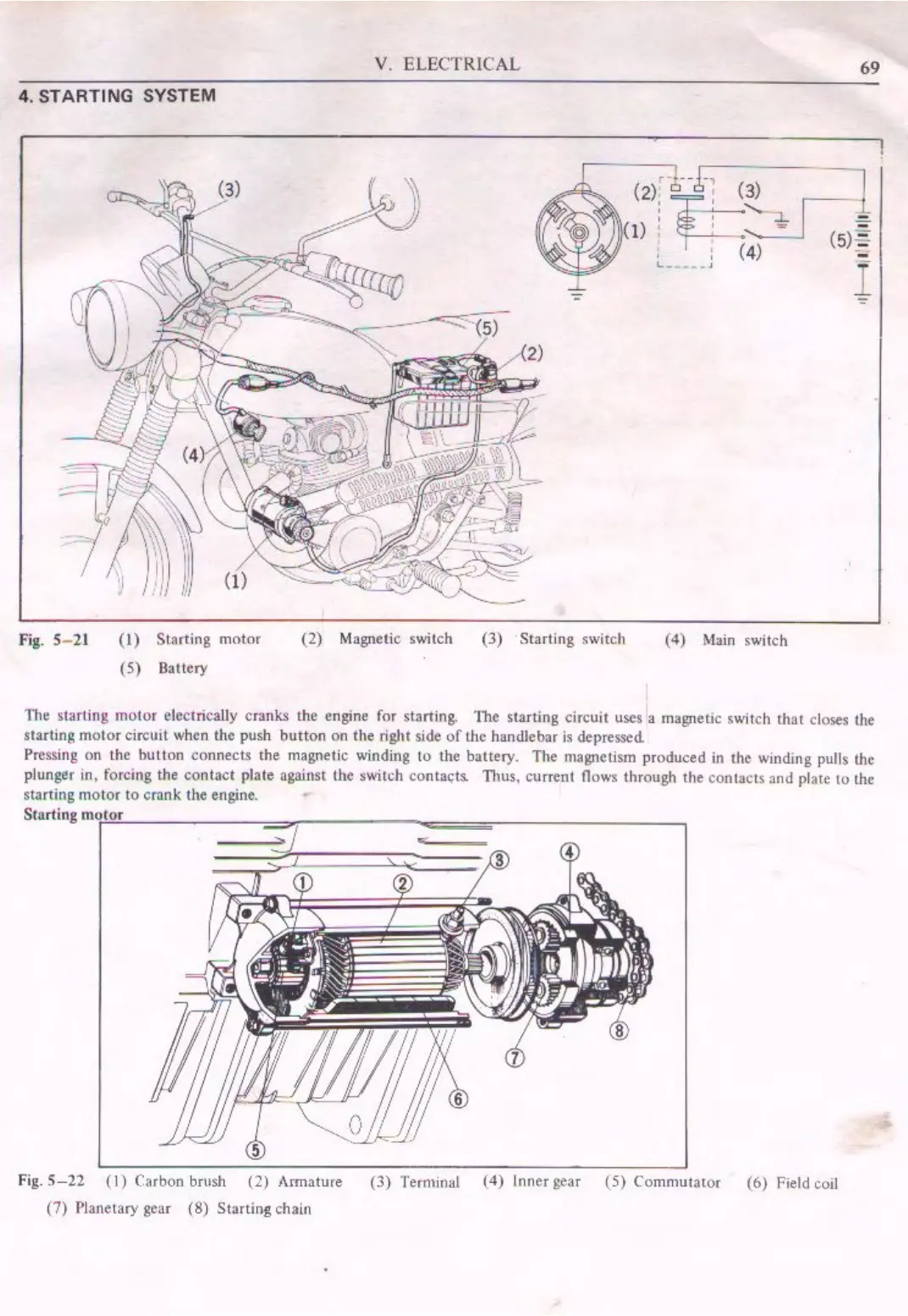

Fig. 5-
21
(1) Starting motor
(S}
Battery
(2) Magnetic switch
(3)
·Starting switch
(
4}
Main
switch
The starting motor electrically cranks the engine for starting. The starting circuit uses a magnetic switch rhar c
lose
s the
starling
motor
circuit when the push button on the right side
of
the handlebar
is
depressed
Pressing
on
the button connects the magnetic winding
lo
the battery. The magnetism produced in the winding pulls
Ute
plunger in,
fo
rcing the contact plate againsr the swirch conta~ts. Tims, current
Oows
through the contacts and plate to the
starting motor
to
crank the engine.
Starting
mort
e,
o
,._r
________
=
r---
--
..._
= =
=---
-
----
- -
Fig.
5-22
(l}
Carbon brush
(2)
Armature
(3)
Terminal (
4)
loner gear
(5)
Commutator
(6)
Field coil
(
7)
Planetary gear
(8
) Starting chain
