100 Servicing Your Honda
Piston/Piston Rings/Piston Pin
1. Place clean shop towels (1) over the crankcase
opening to keep the piston pin clips from
falling into the crankcase.
2. Apply molybdenum disulfide oil (a mixture of
1/2 engine oil and 1/2 molybdenum disulfide
grease containing more than 3% molybdenum
disulfide additive Moly Paste 77) to the
connecting rod small end (2) inner surface.
3. Install the piston (3) with the “IN” mark (4)
and/or the large valve recesses (5) facing the
intake side of the engine.
Apply molybdenum disulfide oil (a mixture of
1/2 engine oil and 1/2 molybdenum disulfide
grease containing more than 3% molybdenum
disulfide additive Moly Paste 77) to the piston
pin (6) outer surface. Apply engine oil to the
piston outer surface and piston pin hole inner
surface. Install the piston pin and new piston
pin clips (7).
NOTICE
Be careful not to damage or shock the piston pin.
Use new pin clips. Never reuse old clips.
Do not let the clips fall into the crankcase.
Do not align the piston pin clip end gap with the
piston cutout (8).

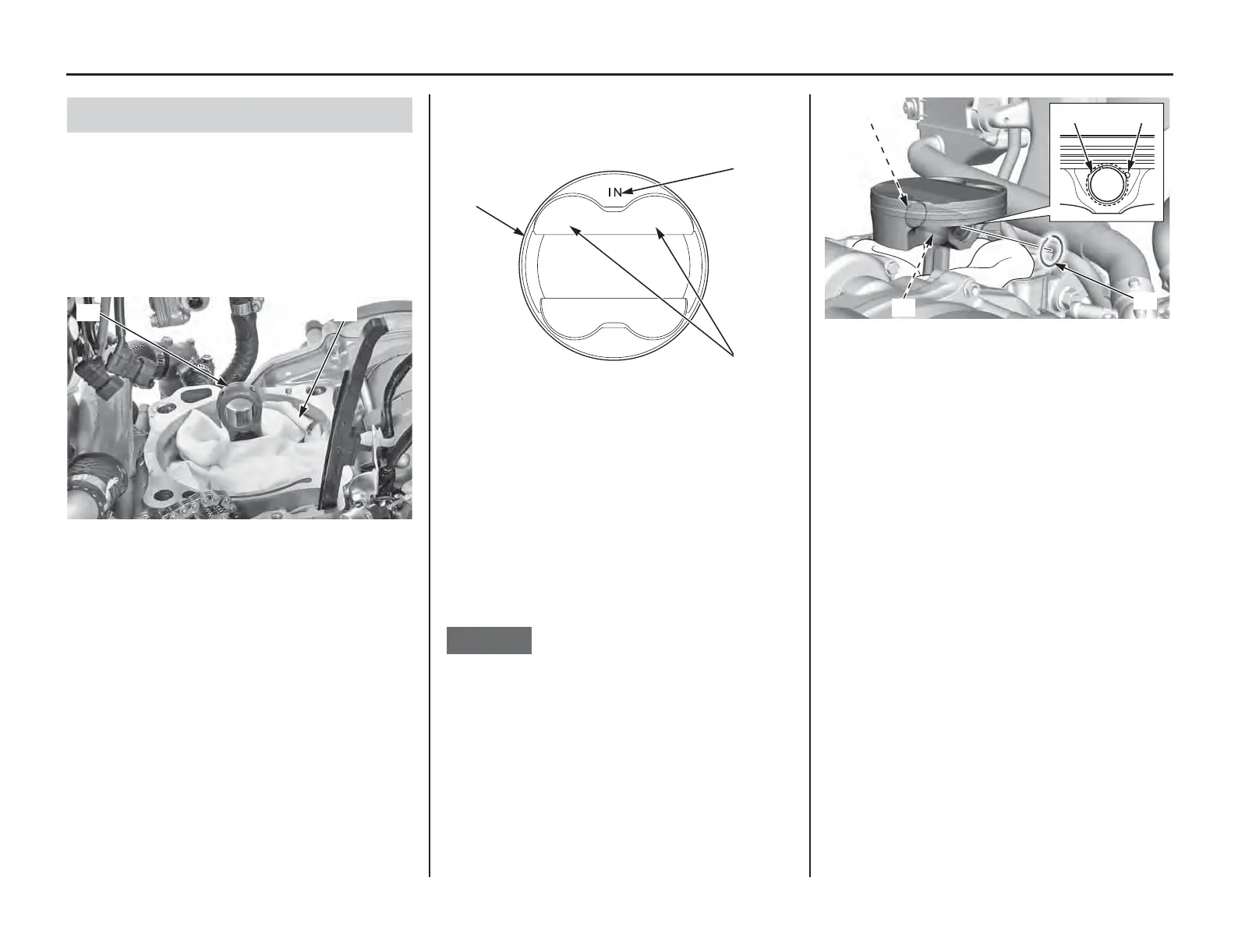

Piston Installation
(1) shop towels
(2) connecting rod small end
(1)
(2)
(3) piston (5) large valve recesses
(4) “IN” mark
(4)
(5)
(3)
(6) piston pin (8) piston cutout
(7) piston pin clips (new)
(7)
(7)
(7)
(8)
(6)

Honda CRF450L 2019 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Fuel System	Programmed Fuel Injection (PGM-FI), 46mm throttle body
Transmission	6-speed
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-18
Rake (Caster Angle)	28.5°
Wheelbase	58.9 inches
Seat Height	37.1 inches
Fuel Capacity	2.0 gallons
Ignition	Full transistorized ignition
Ground Clearance	12.4 inches
Front Suspension	49mm inverted fork; 12.0 inches of travel
Rear Suspension	Pro-Link Showa single shock, adjustable spring preload, compression and rebound damping
Front Brake	Single 260mm disc
Curb Weight	289 pounds
Valve Train	Unicam four-valve
Final Drive	Chain
Trail	4.6 inches (118mm)
