10 Instruments & Controls
Indicators & Displays
1 SEL button Uses this button for the following purposes.
• To change the 12/24 hour
• To adjust time
• To adjust display illumination
• To select and reset the fuel mileage meter
• To change the mileage units for the odometer/tripmeter and available
driving distance
• To select and reset the tripmeter
2 High coolant temperature
indicator
Lights when the coolant is over the specified temperature.
If the indicator comes on, pull safely to the side of the road.
See page 170. Lamp Check.
3 PGM-FI (Programmed Fuel
Injection) malfunction indicator
lamp (MIL)
Lights when there is any abnormality in the PGM-FI (Programmed Fuel
Injection) system. Should also light for a few seconds and then go off when
the ignition switch is turned ON and the engine stop switch is at (Run)
position. If the indicator comes on at any other time, reduce speed and take
your motorcycle to your dealer as soon as possible. Lamp Check.
4 Turn signal indicator Flashes when either turn signal operates.
5 Multi-function display The display includes the following functions. Display check.
Speedometer Shows riding speed in miles or kilometers per hour (page 12).
Digital clock Shows hour and minute (page 13).
Odometer Shows accumulated mileage (page 12).
Tripmeter A & B Shows the number of miles or kilometers ridden since you last reset the
meter (page 12).
Fuel mileage meter Shows current fuel mileage, average fuel mileage, or fuel consumption
(page 12).
6 Fuel reserve indicator When this indicator comes on while riding, fuel reserved in the tank is about:
0.58 US gal (2.2 ℓ)
Lamp Check.
7 Neutral indicator Lights when the transmission is in neutral.
8 High beam indicator Lights when the headlight is on high beam.
The multi-function display includes the following
functions:
speedometer
odometer
tripmeter A & B
fuel mileage meter
digital clock
The digital clock will reset if the battery is
disconnected.

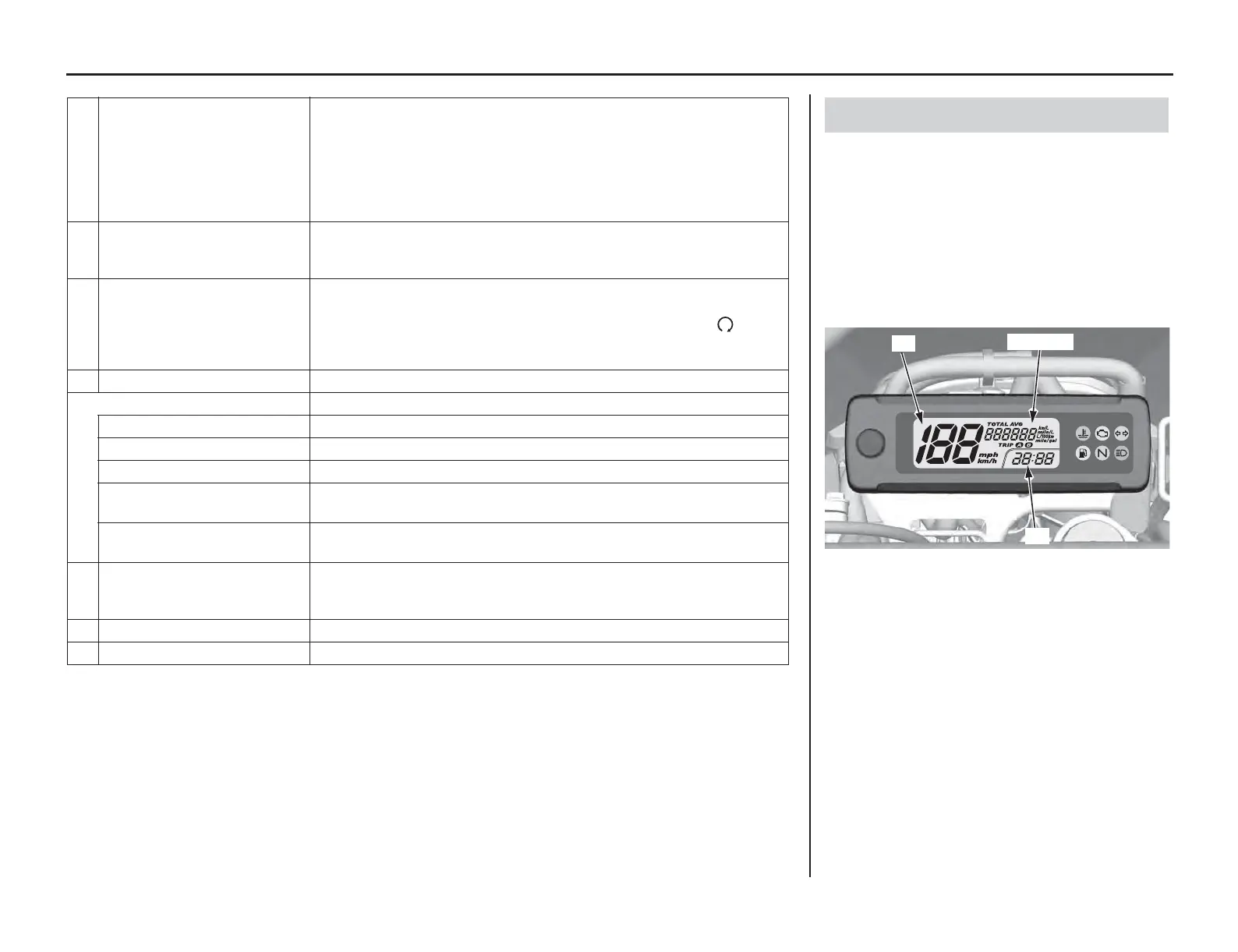

Multi-function Display
(1) speedometer
(2) odometer
(3) tripmeter
(4) fuel mileage meter
(5) digital clock
(1)
(2)(3)(4)
(5)
