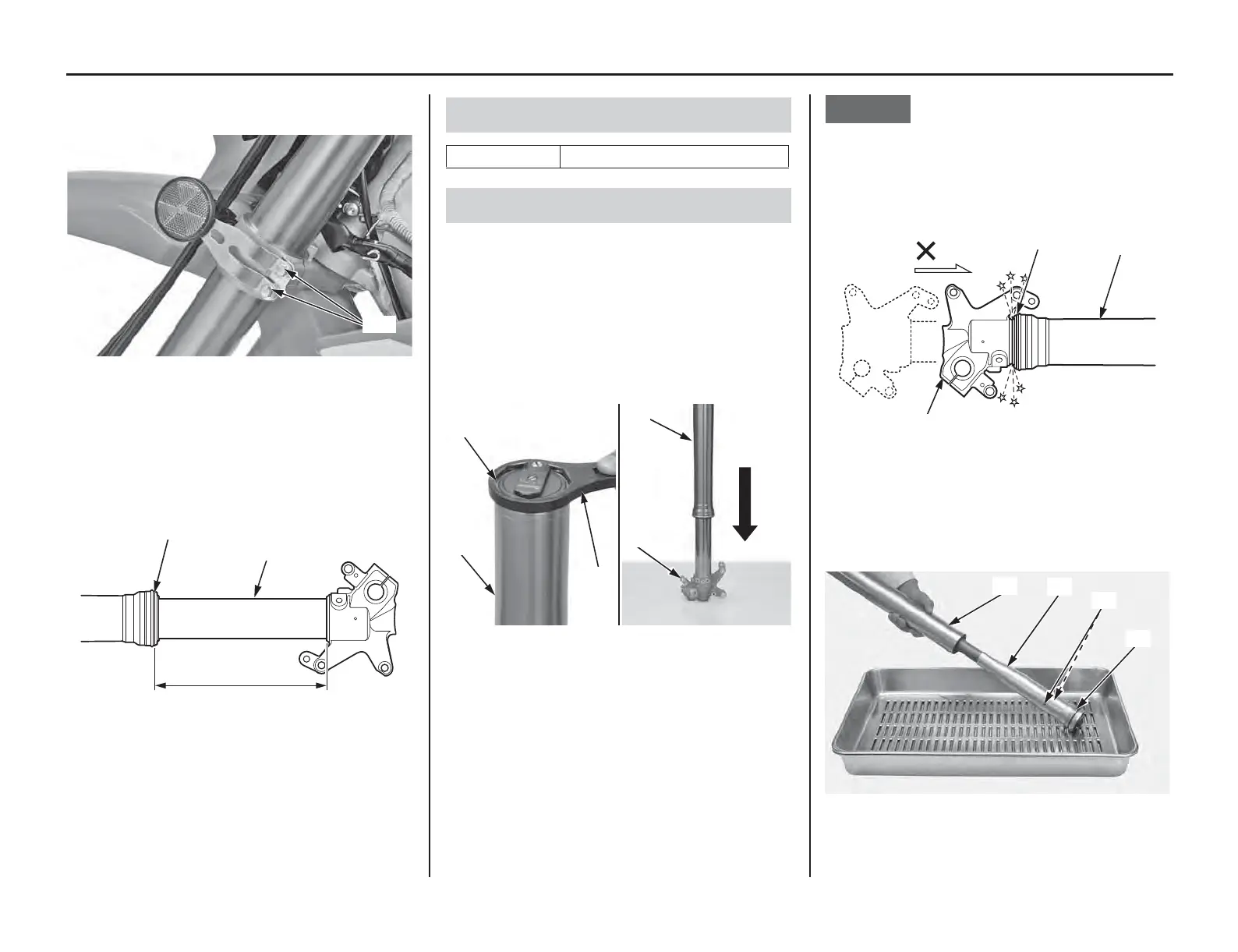

Suspension
12. Loosen the fork bridge lower pinch bolts (27),
then pull the fork legs down and out.
13. Clean the fork assembly, especially the sliding
surface (28) of the slider and fork dust seal
(29).
14. Measure the length (30) between the axle
holder and outer tube and record it before
disassembling the fork.
Refer to Front Suspension Removal on page 106.
1. Clean the fork assembly, especially the sliding
surface of the slider and dust seal.
2. Hold the outer tube (1), then remove the fork
damper assembly (2) from the outer tube using
the lock nut wrench (3). Gently slide the outer
tube down onto the lower end (axle holder) (4).
• Lock nut wrench 07WMA-KZ30100
NOTICE
The outer tube (1) can drop on the axle holder (4)
and damage the fork dust seal (5). To avoid
damage, hold both the outer tube and slider when
removing the fork damper.
3. Drain the fork oil from the outer tube (1) and
oil holes (6) of the fork damper assembly (2).
Remove the O-ring (7) from the fork damper
assembly.
(27) fork bridge lower pinch bolts
(28) sliding surface (30) length
(29) fork dust seal
(27)
(30)
(29)
(28)
Recommended Fork Oil
suggested oil Pro Honda HP Fork Oil, SS-19
Fork Outer Tube Disassembly
(1) outer tube (3) lock nut wrench
(2) fork damper assembly (4) axle holder
(1)
(4)
(2)
(1)
(3)
(1) outer tube (5) fork dust seal
(4) axle holder
(1) outer tube (6) oil holes
(2) fork damper assembly (7) O-ring
(1)
(5)
(4)
(1)
(2)
(7)
(6)
