HRN216 HANDLEBAR/ CABLES/CONTROLS

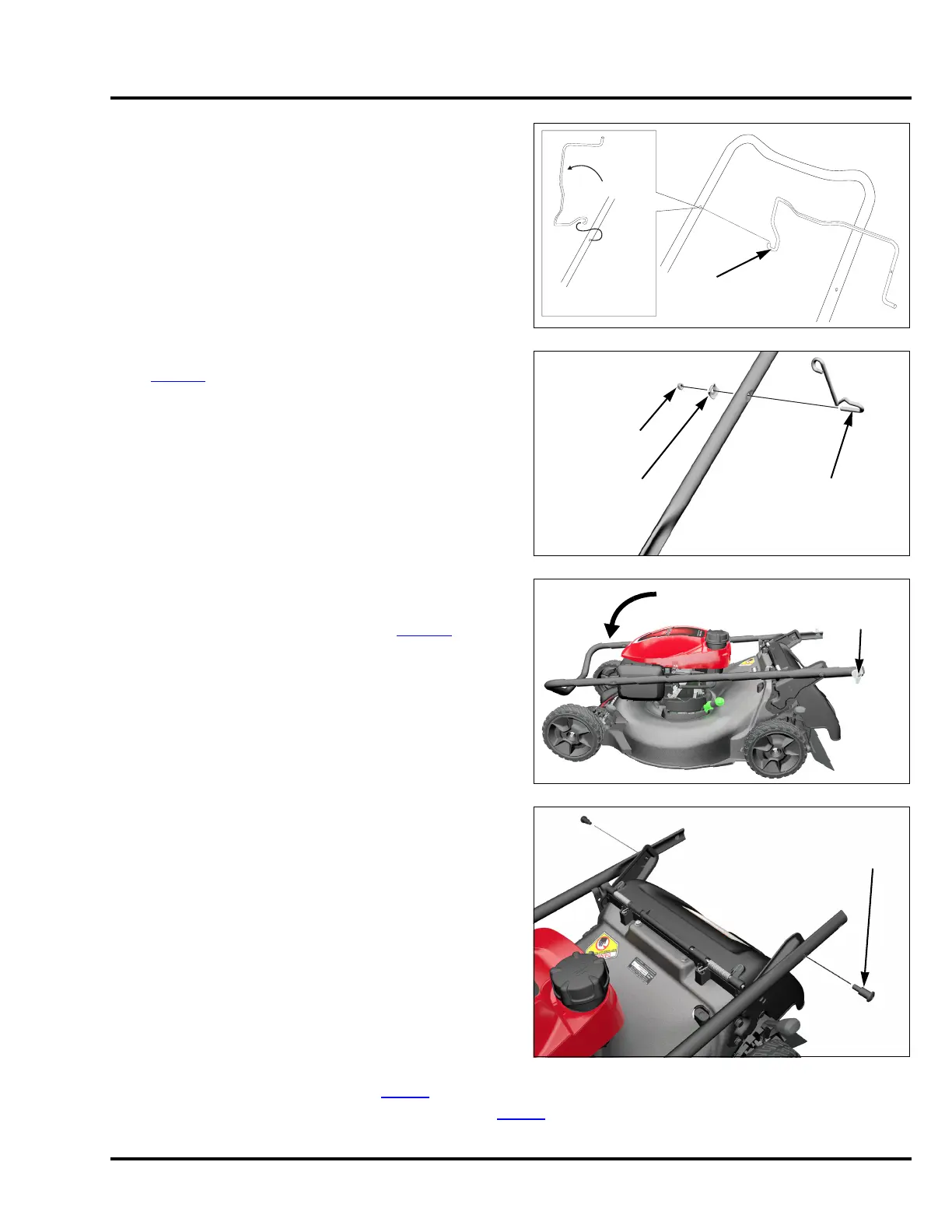

7. Remove the flywheel brake lever from the handlebar by
pulling inward on the left-hand side of the lever until the
end slides out of the handlebar. The right-hand side of
the lever has a hooked end. Rotate the lever over the
right-hand side of the handlebar to release the lever.
8. Remove the recoil starter rope from the rope guide
(P. 11-12
), and then remove the 6 mm locking nut,
frame washer, and rope guide from the handlebar.
9. Unlock both handle locking knobs and fold the
handlebar over the mower into the storage position.
10. Remove both handle locking knobs (P. 11-1 0
).
11. Have an assistant hold and support the handlebar and
then remove the two special bolts and the handlebar
from the handle stays.
12. Install the handlebar in the reverse order of its removal.
• Readjust the Smart Drive cable (P. 3-10
).
• Install new cable ties and position them properly (P. 2-21
).
FLYWHEEL
BRAKE
LEVER
FLYWHEEL
BRAKE
LEVER
ROPE GUIDE
FRAME
WASHER
6mm
LOCKING
NUT
