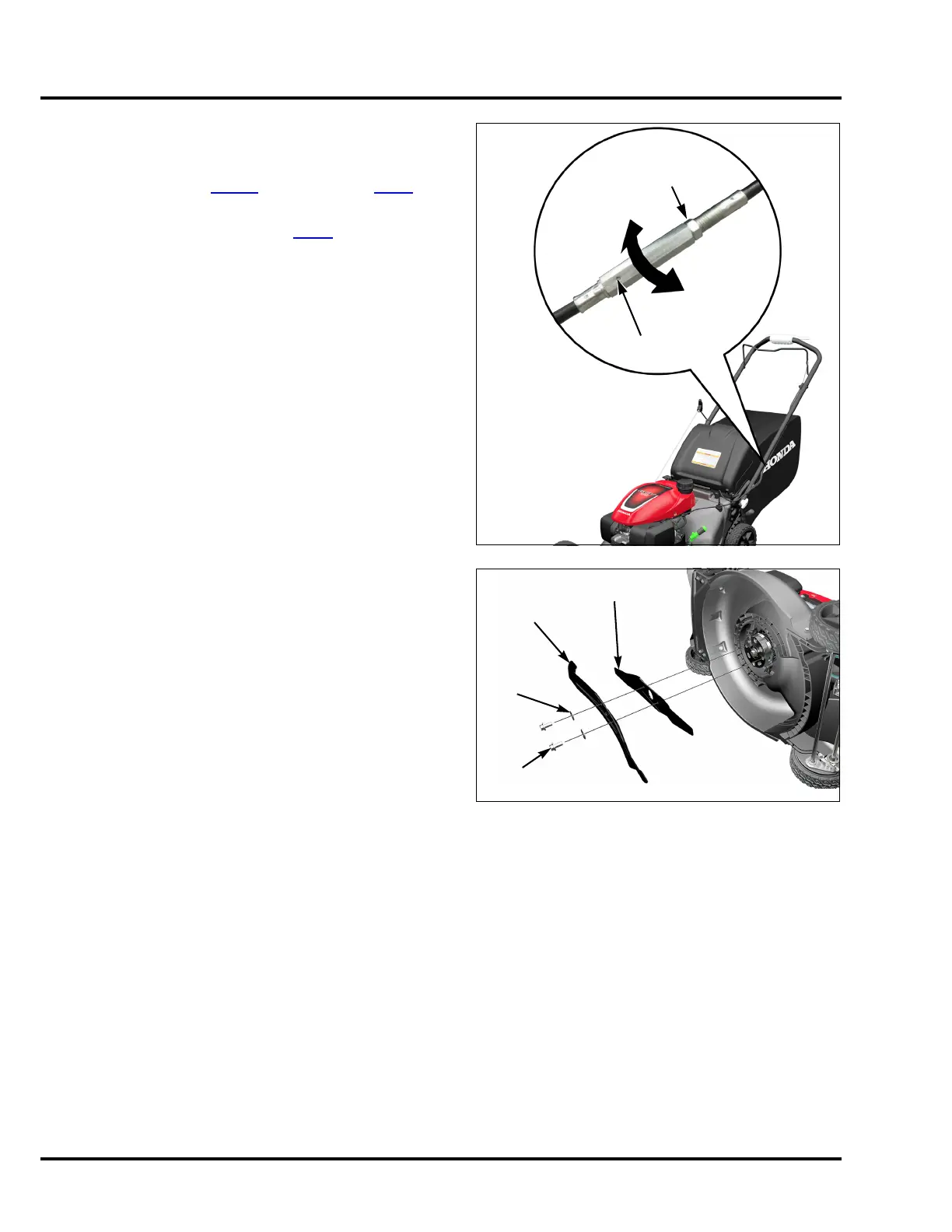

13-4
TRANSMISSION/DRIVE BELT HRN216
VYA TYPE
REMOVAL
1. Drain the fuel tank (P. 3 -11
) and engine oil (P. 3 - 6 ).
2. Disconnect the spark plug cap (P. 3 -8
).
3. Fully loosen the Smart Drive cable adjuster.
4. Remove the blades. Use a pair of thick leather gloves to
hold the blades with your hand to prevent the blades
from turning, and then remove the two blade bolts and
special washers.
JAM NUT
LOOSEN
TIGHTEN
ADJUSTER
MARK
UPPER BLADE
LOWER
BLADE
SPECIAL
WASHER (2)
BLADE BOLT (2)
