HRN216 SPECIFICATIONS

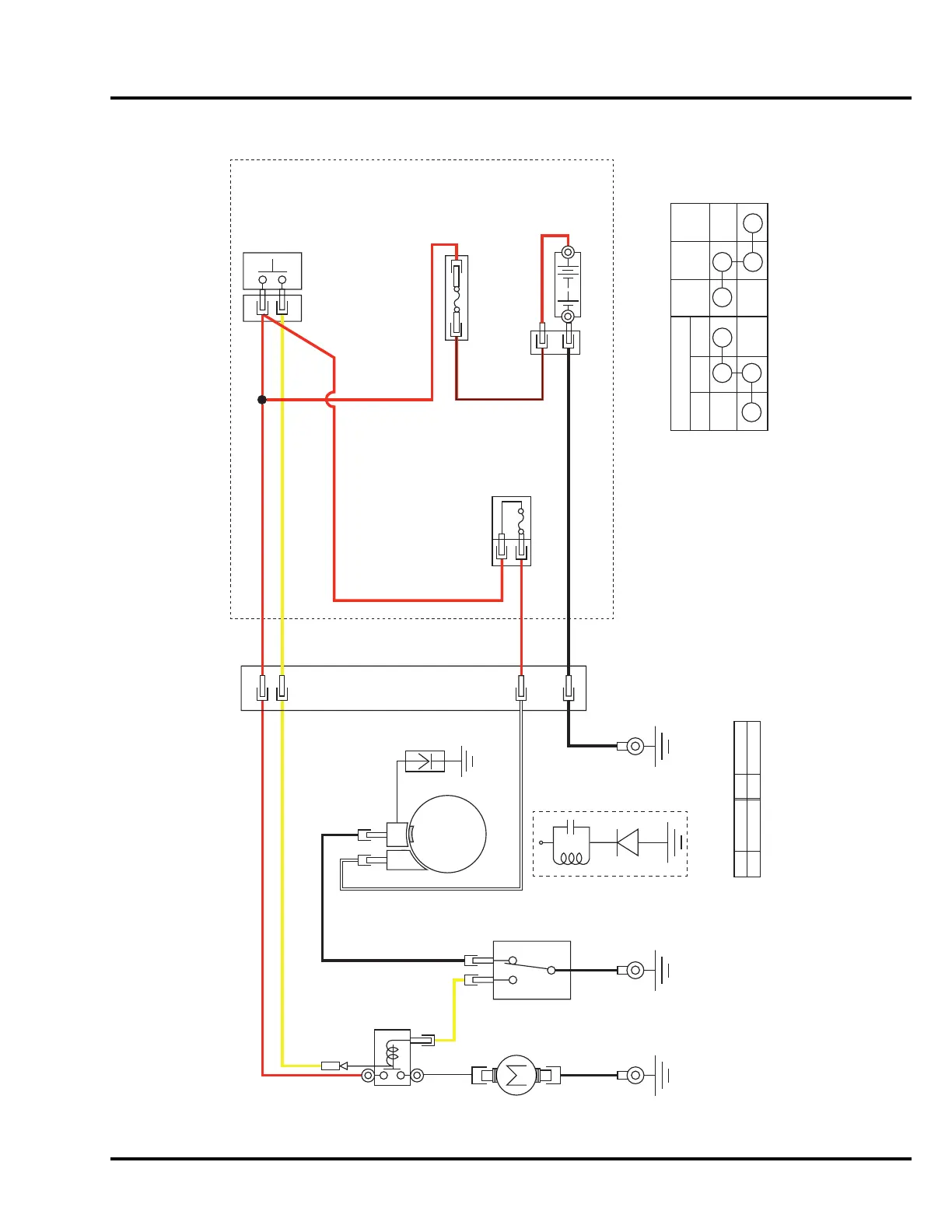

3. WIRING DIAGRAM (VLA TYPE)
STARTER
ENG STOP SW
CHARGE COIL
ENG EARTH
ST. MAG
MINI BLADE HOLDER
FUSE
BATTERY BOX
BATTERY
FUSE
30A SLO-BLO
START SWITCH
4P250
2P250
2P250
3A
B (–)
R (+)
B
B
B
B
B
B
B
B
B
R/B
R/B
R
R R
R
R
R
Y
R Y
R Y
W
Y
W
SPARK PLUG
N.O.
N.C.
COM
CHG
IGN
COIL
COIL
W
Y
W
R
Y
STOP SW
N.O.
COM N.C.
IGN
GND
ST. MAG
SW CONNECTING DIAGRAM
B
Y
R W
BLACK
YELLOW
RED
WHITE
WIRE COLOR
R
B

Honda HRN216VKA Specifications

General

Engine	Honda GCV170
Cutting Width	21 inches
Starter	Recoil
Deck Material	Steel
Mulching Capability	Yes
Bag Capacity	2.5 bushels
Bagging Capability	Yes
Cutting Height Range	1.0 - 4.0 inches
Discharge	Side
Drive Type	Self-Propelled, Variable Speed
