Honeywell 60 Series IP Camera Software Configuration Guide

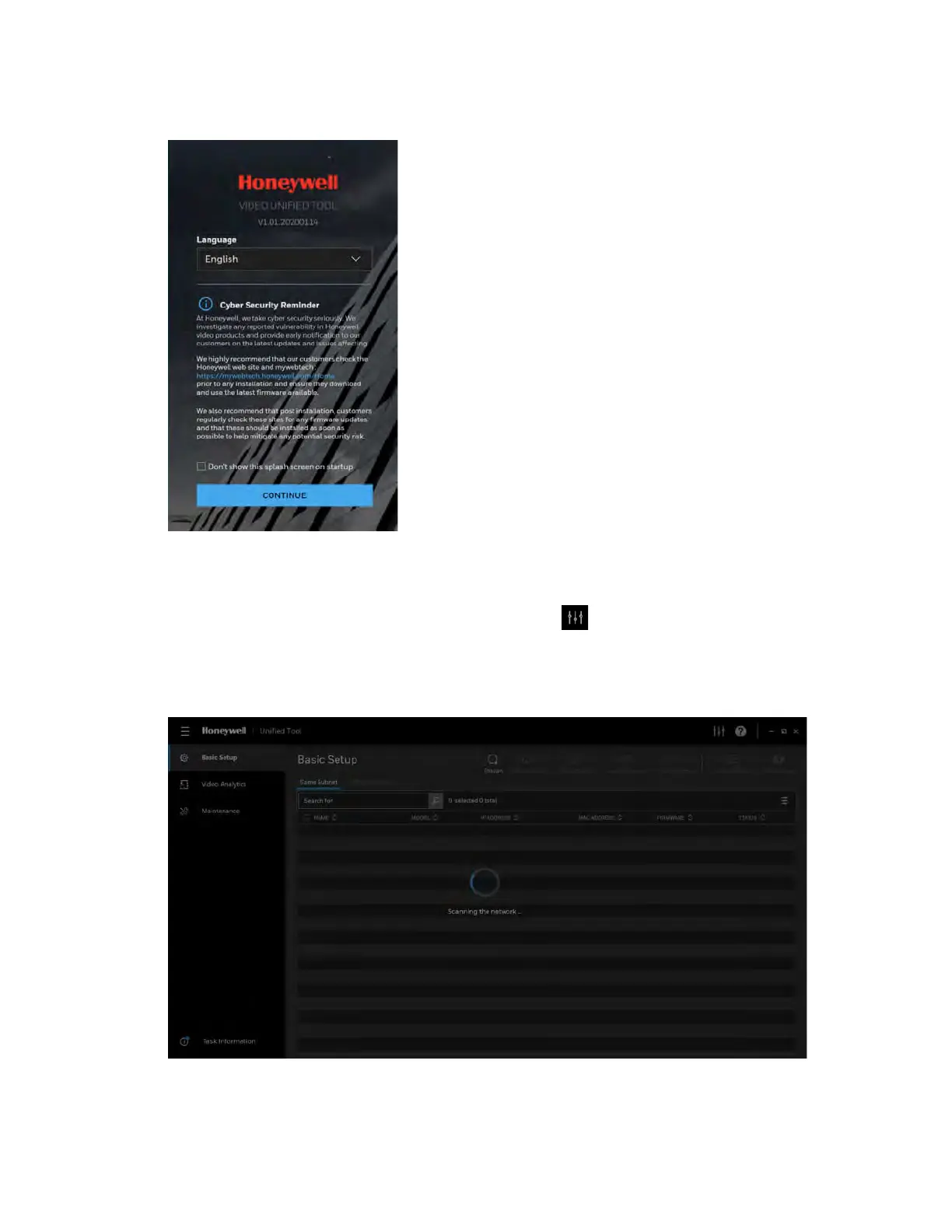

Figure 2-4 Splash Screen

1. Select your language from the dropdown list of Language. Currently, only English is

supported.

2. Check “Don’t show the splash window on startup” and this page can be skipped next time.

If you want to check the splash window again, click as shown in Figure 2-6 and select

the checkbox of Show the splash page on startup.

3. Click CONTINUE. It will scan devices in the network automatically.

Figure 2-5 Scanning the network

After the scanning, all scanned devices in the same subnet and different subnet will be

displayed in the devices list.
