Honeywell 60 Series IP Camera Software Configuration Guide

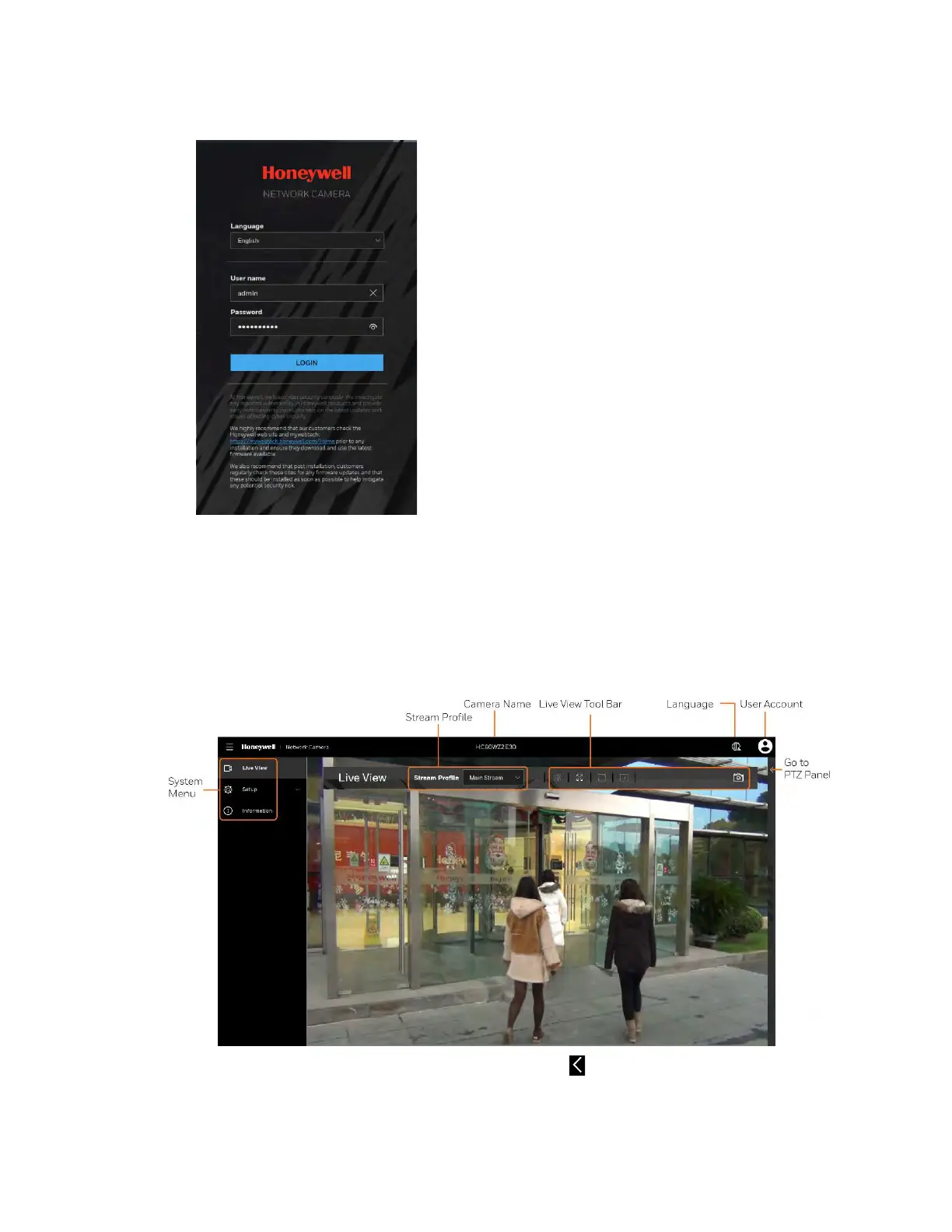

Figure 3-7 Login Page

Using the Main Page

The main page includes the following areas: system menu, live view tool bar, language

selection and user account settings.

Figure 3-8 Main Page

For PTZ model, a PTZ panel can be accessed by clicking on the right.
