Honeywell NOTIFIER AM-8200 User Manual

PAGE - 38 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG

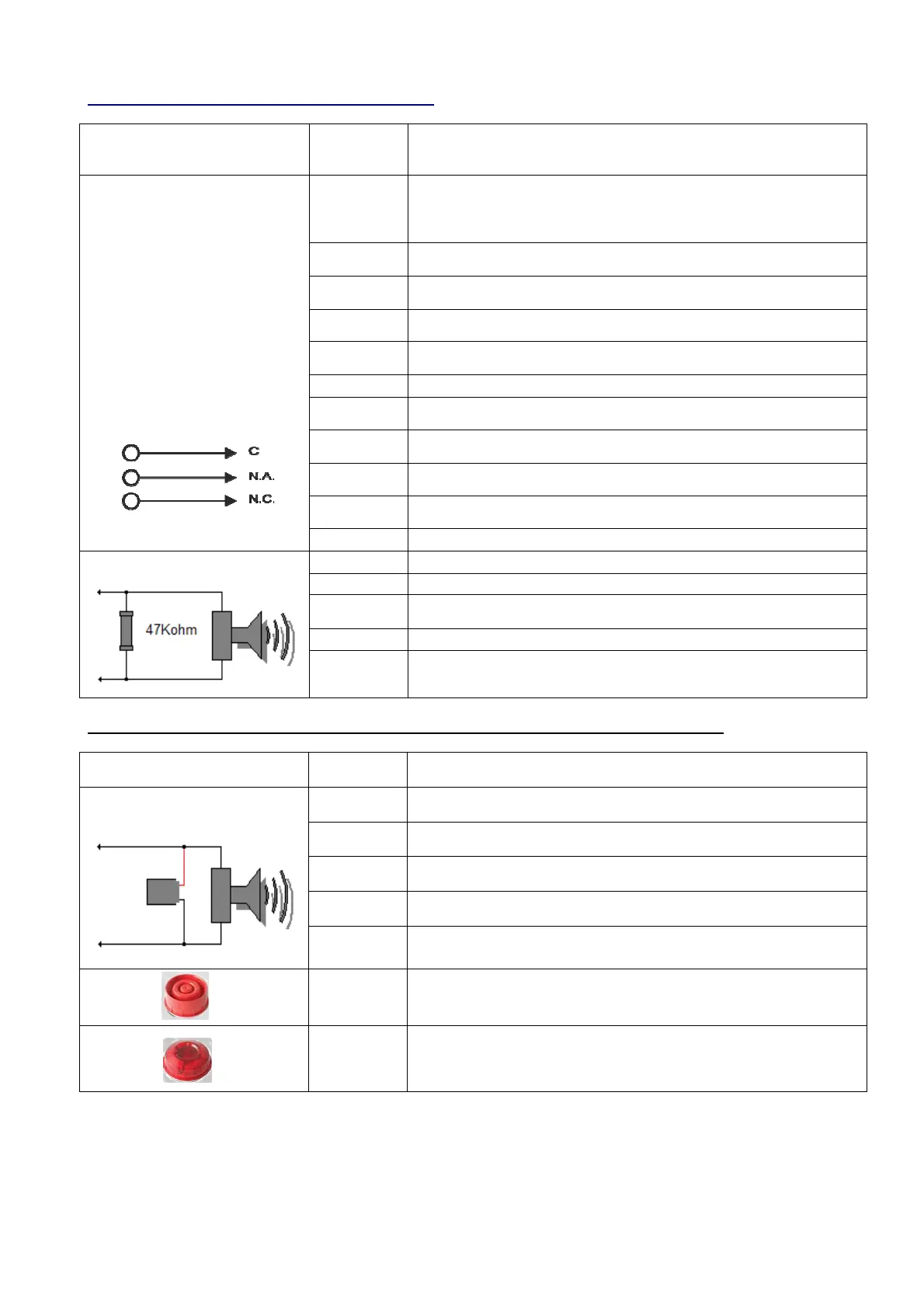

OUTPUT MODULES FOR GENERAL SERVICES
CONNECTION MODE
SOFTWARE
TYPE_id
DESCRIPTION
PWRC
FORC Output module used to temporarily interrupt power supply, during
SYSTEM RESET, for the 4- wire conventional smoke sensors, powered by
a remote power supply. N.B.: this type SHALL NOT be programmed for the
SILENCING
GPND
FORC output module activated at each alarm or Fault It is reset by ACK.
APND
FORC output module activated at each alarm. It is reset by ACK
GAC
FORC output module activated at each alarm. It is reset by RESET.
TPND
FORC output module activated at each fault. It is reset by ACK or through
the Fault RESET
GTC
FORC output module activated at each fault. It is reset by RESET.
TRS
FORC output module activated at each FAULT. It is only reset through the
Fault RESET.
ZFLT
FORC output module activated at each FAULT in the zone where is
associated. It is only reset through <Fault removing from the zone
ZDIS
Output module activated in case of exclusion of a point or a zone.
MAINF
Output module (non supervised output) activated when a MAINS Fault is
present
REM
FORC output module activated from a remote command (supervisory SW)
GAS
CON output module activated at each alarm. It is reset by RESET.
GTS
CON output module activated at each fault. It is reset by RESET.
ZFLTC
Output module activated in case of zone fault to here is associated
MAINFC
Same as MAINF but supervised output
REMC
CON output module activated from a remote command (supervisory SW)
N.B.: the output modules used for the above-mentioned functions, do not accept CBE.
CONNECTION MODE SOFTWARE
TYPE_id
DESCRIPTION
GASV
CON output module activated at each alarm.
It is reset by RESET. (Complies to VdS 2489).
GTS
V
CON output module activated at each fault. It is reset by RESET.
(Complies to VdS 2489).
ZFLTV
Output module activated in case of zone fault to here is associated
(Complies to VdS 2489).
MAINFV CON output module activated in case of Power Supply Fault
(Complies to VdS 2489).
REMV
CON output module activated from a remote command (supervisory SW)
(Complies to VdS 2489).
SND
Software type_ID only for the following Models: WMSS, WMS, WMS,
DBSS, DBS
activated at each alarm
, follow the Sounder Output status
STR
Software type_ID only for the following Models: WMSS, WMSB,, DBSS
activated at each alarm , follow the Sounder Output status
Resistore
Polarizzato
da
47ohm
