PAGE - 42 Programming Manual AM_8200
NOTIFIER ITALIA Doc. M-162.1-AM8200-ENG Rev A2 AM8200_manu-prog-ENG
Example: G301 = TIM (   18.00 08.30) CBE of the high sensitivity group
G302 = TIM (   08.30 18.00) CBE of the low sensitivity group
For the Zones to which this function is to be coupled the parameter “Daytime/Night = YES ”(refer to Zone
programming) must be programmed. In this way the system automatically associates the high and low
sensitivity groups, so that the following two time bands are obtained:
Daytime band (low sensitivity) from 8.30 to 18. (the sensitivity values assumed by the detector are those
programmed in the “Sens-Low” item in the option folder).
Night band (high sensitivity) from 18. to 8.30. (the sensitivity values assumed by the detector are those
programmed in the “Sens-High”item in the option folder).

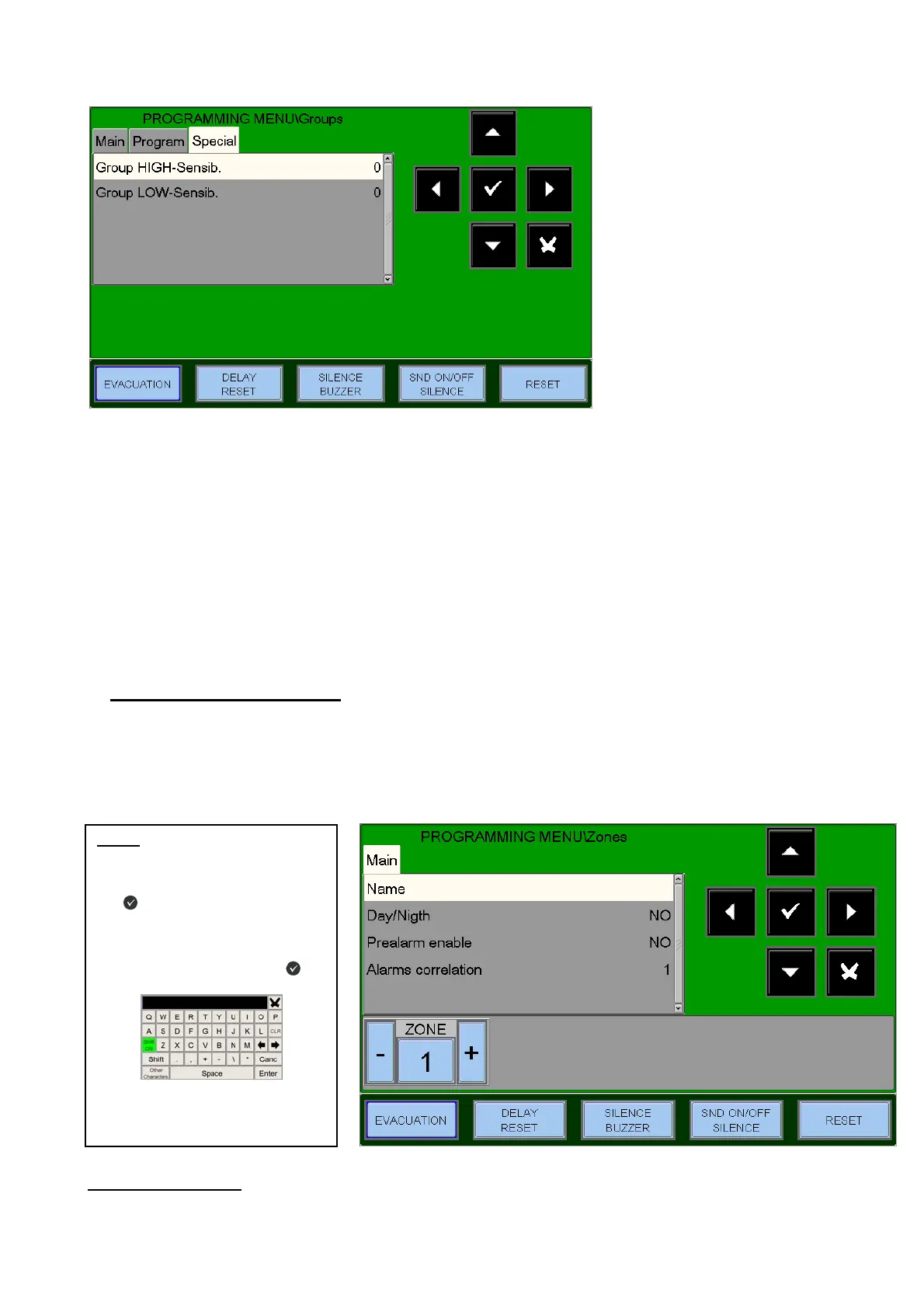

 ZONE programming Menu
By selecting the “Zones” sub-menu you can enter a descriptive text to be associated with the selected zone.
The control unit locates by default on the first zone.
Day / Night : YES/NO
Name:
Programmable text for the ZONE
max. 32 characters
To enter the Text press the enter
key
to enter the editing function
Through the alphanumerical
keyboard enter the zone name
at the end press the enter key
to
store the datum.
