EXCEL 500/600 - INSTALLATION INSTRUCTIONS
EN1R-1047GE51 R0913 14
XI582
166
12 12
12
24
105
141
142
190
95 95
CABLE HOLE
WALL DESK
192 40
170
80

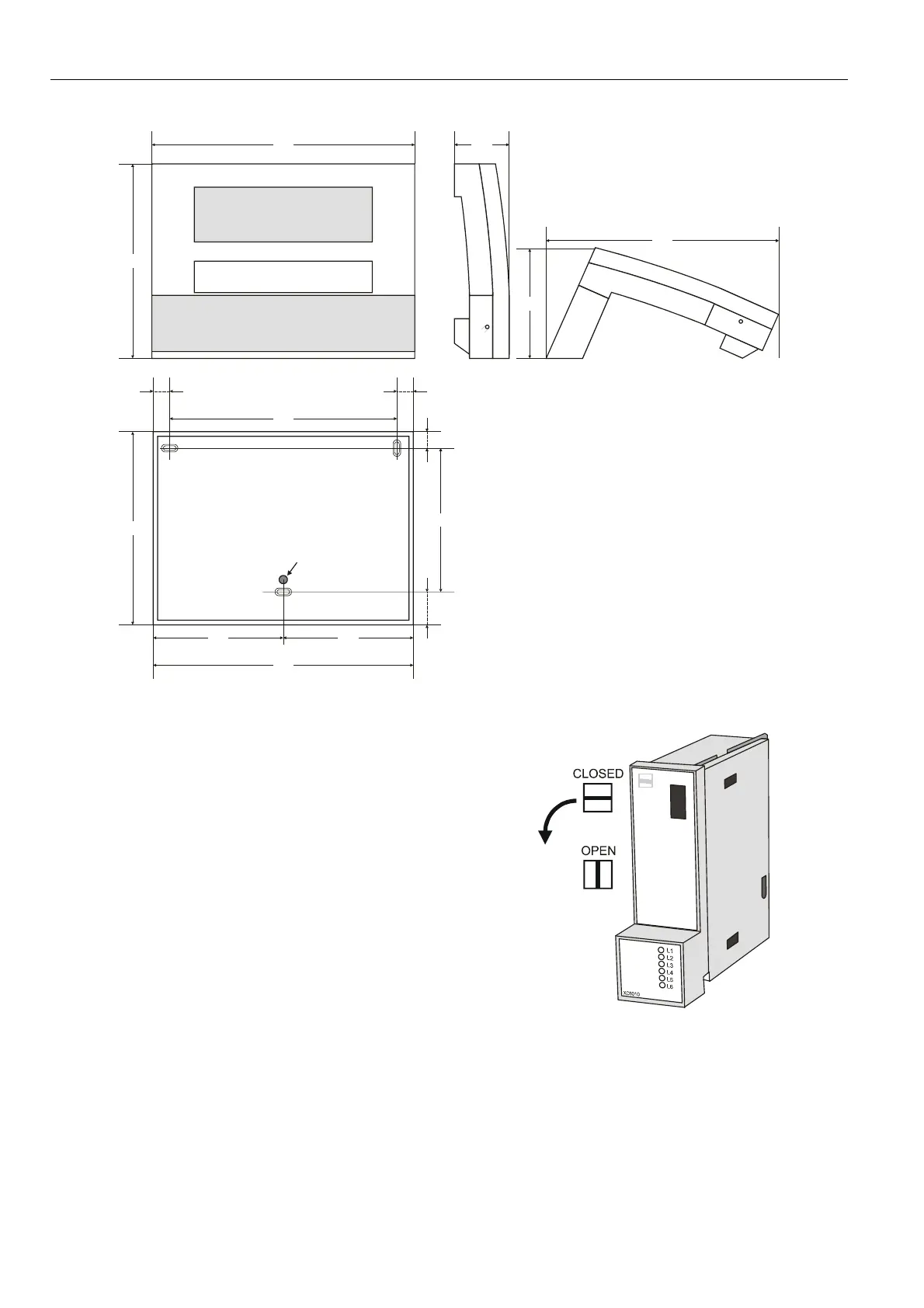

Fig. 33. XI582 dimensions
Battery Activation during Commissioning
(XC6010, only)
The controller is delivered from the factory with the battery in
the CPU module electrically isolated from the internal circuitry
by a safety tag to prevent the battery from discharging in
transit.
1. Unscrew the CPU module cover with a screwdriver.
Fig. 34. Accessing the battery compartment
