EXCEL 500/600 - INSTALLATION INSTRUCTIONS
9 EN1R-1047GE51 R0913
1
2

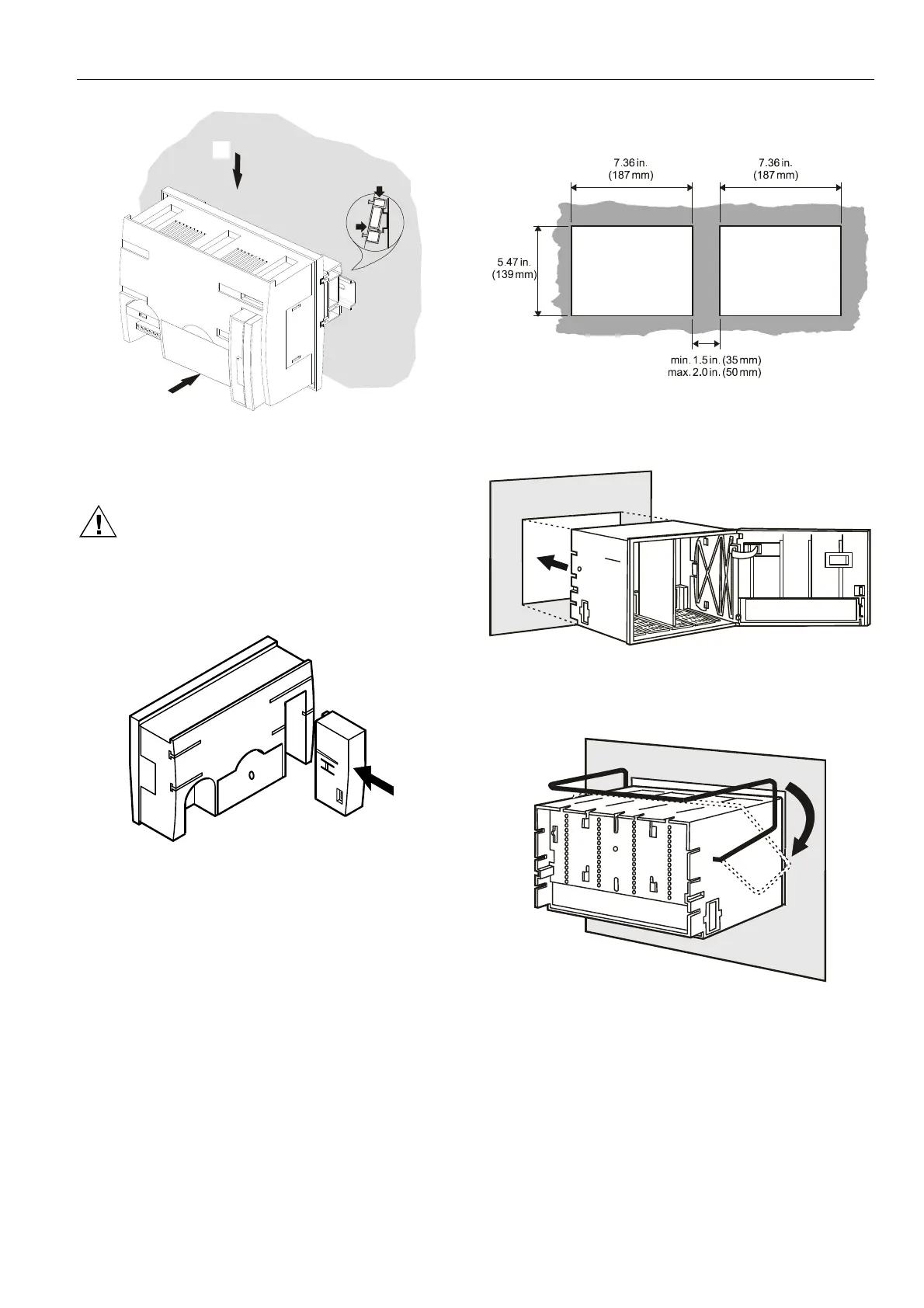

Fig. 17. Mounting XCL5010 on DIN rail (b)
XDL505 Application Module
CAUTION
Always plug in the application module before
connecting the power supply.
Always disconnect the power supply before
unplugging the application module.
0000043a
Fig. 18. Inserting the application module
Plug in the application module until it snaps into the controller
housing
NOTE: If the application module has been replaced or
pulled out and plugged in again, push the reset
button after power on.
Installation through a Control Panel Door
(not XCL5010)
IMPORTANT
When installing more than one housing, observe the
min. spacing of 1.5 in. (35 mm). Do not exceed the
max. spacing; otherwise, the tailor-made internal bus
cables will be too short.
1, Prepare the door in accordance with the following.
dimensions.
Fig. 19. Panel door mounting dimensions
2. Insert the housing.
Fig. 20. Inserting the housing in the panel door
3. Insert the retaining clamp.
Fig. 21. Housing retaining clamp
4. Turn retaining clamp to fix housing.
5. Code the terminal block (see page 6).
6. Install the base.
To Next Page
