EXCEL 500/600 - INSTALLATION INSTRUCTIONS
17 EN1R-1047GE51 R0913
IMPORTANT (FOR EUROPE, ONLY)
To comply with CE requirements, devices with a
voltage in the range of 50...1000 Vac or
75...1500 Vdc which are not provided with a supply
cord and a plug or with other means for discon-
nection from the supply having a contact separation
of at least 3 mm in all poles, must have the means
for disconnection incorporated in the fixed wiring.
Cable Routing
The min. distance to power mains cables is 0.4 in. (10 mm)
for shielded cable and 4 in. (10 cm) for unshielded cable.
All low-voltage signal and output cables should be regarded
as communication circuits in accordance with VDE 0100 and
VDE 0800 (or NEC or other equivalent), and should therefore
be routed separately from mains cables.
Joining sensor cables should be avoided.
Shielding I/O Module, Power Supply Cables
Shielding input and output module and power supply cables
is not necessary if the general guidelines for cable routing are
observed. If, in certain cases, the routing guidelines cannot
be observed, then shielded cable must be used.
The shield must not be terminated at a controller; instead, to
avoid ground loops, the shield must be grounded (at only one
end) at the control panel.
To prevent ground loops, shielding of input/output cables
leading to peripheral devices must be grounded only at the
control panel end.
Shielding of Data-Transmitting Cables
Connect the shield of the system bus (C-Bus) to system
ground on both ends. Each end of the shield on the system
bus should be connected to the system ground terminal of the
respective CPU module. Do not connect it to the control panel
earth or any other earth ground points.
NOTE: The L
ONWORKS bus must not be grounded on the
CPU side.
To connect remote operator interface units, ready-made
cables are available (XW565; XW582, XW583, etc.) with the
shield already connected to the CPU module plug end.
Grounding (XC5010C / XC6010, only)
The controller should be grounded using as short a cable as
possible (min. 16 AWG [1.5 mm²]) between the control panel
and terminal 3 of the power supply module.
System Ground
WARNING
High voltage
Risk of electrical shock or equipment damage.
The controller's system ground must have no
connection with the control cabinet ground!
NOTE: A document providing additional information on
system grounding (if required) is available via the
Honeywell Technical Assistance Center (TAC) or, for
Honeywell employees, on the Docu Server under:
http://web.ge51.honeywell.de/dep/mc/TAC_Tips.
RFI Suppression
Honeywell actuators are RFI (Radio Frequency Interference)
suppressed as standard in accordance with VDE 0871/B and
VDE 0875/N.
XC5010C/XC6010 Cable Lengths and Sizes
Table 3. Cable sizing (use only copper cables)
type of signal
cross-sectional area
300 ft
(100 m)
550 ft
(170 m)
1300 ft
(400 m)
24 Vac power
supply
16 AWG
(1.5 mm
2
)
14 AWG
(2.5 mm
2
)
-
low voltage
signals*
14 – 18 AWG (2.5 – 0.75 mm
2
)
*0…10 V sensors, totalizers, digital inputs, 0 to 10 V signals for
actuators, etc.
TRANSFORMER
PRIMARY
VOLTAGE
24 Vac
24 Vac
GND
GND
Y (0...10 Vdc)
GND
max. 400 m
min. 0.75 mm
2
24 Vac

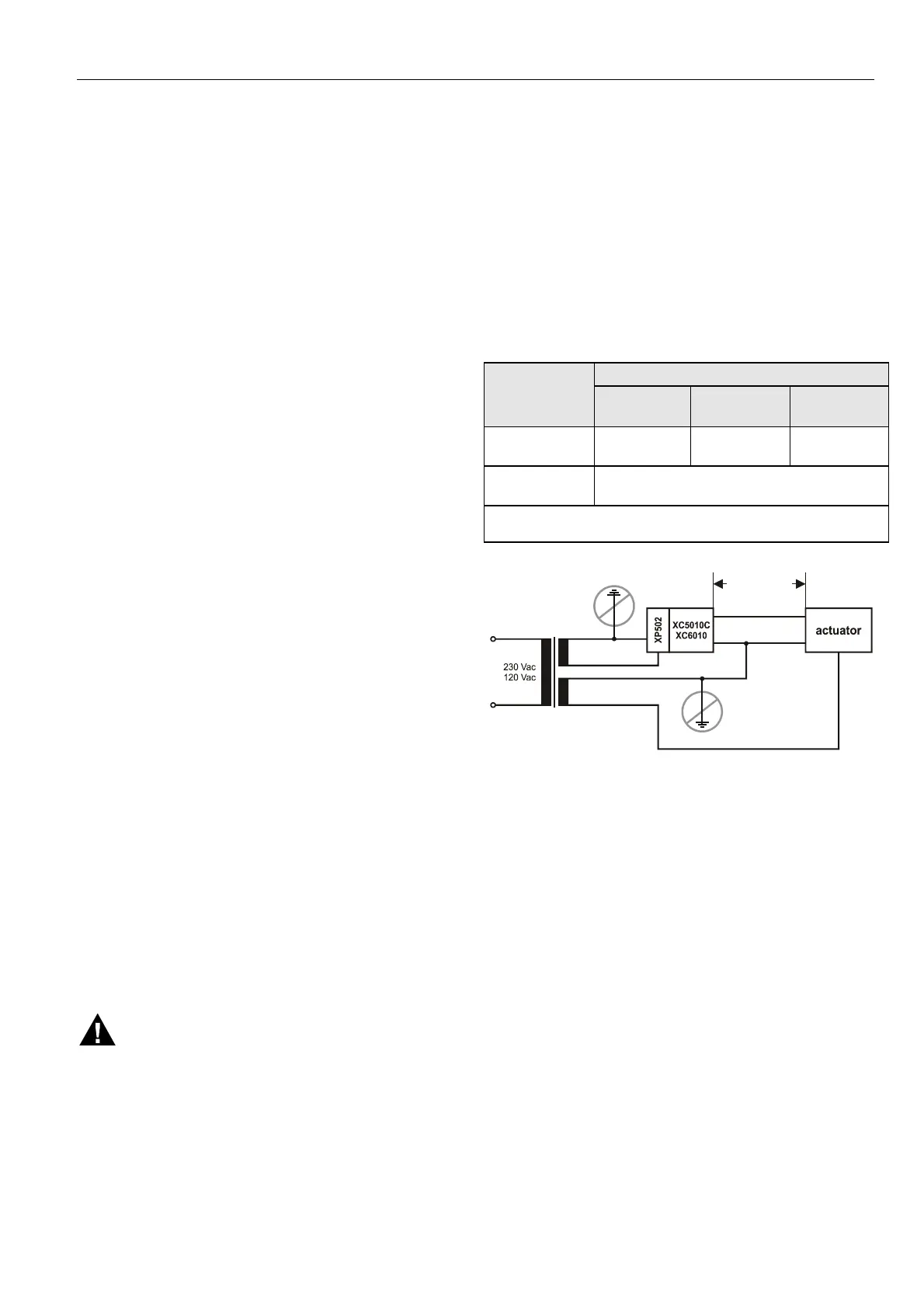

Fig. 41. Power for XC5010C/XC6010 (XP502 power supply
module) with 24 V actuator
A cable length of 1300 ft (400 m) with a cross sectional area
of 0.75 mm
2
(18 AWG) is permissible for a two-core,
0…10 Vdc signal cable.
For cable lengths exceeding 1300 ft (400 m) between the
transformer and the field device, see NOTE in section
"System Ground".
Lightning Protection
Please contact your local Honeywell representative for
information on lightning protection.
