Figure 3-2 gives an example of a cable that will work for the extended
interface with hardware handshake. Keep in mind that this cable should
work if your computer’s serial interface supports the four common RS-232-C
handshake signals as defined by the RS-232-C standard. The four common
handshake signals are Data Carrier Detect (DCD), Data Terminal Ready
(DTR), Clear to Send (CTS), and Ready to Send (RTS).

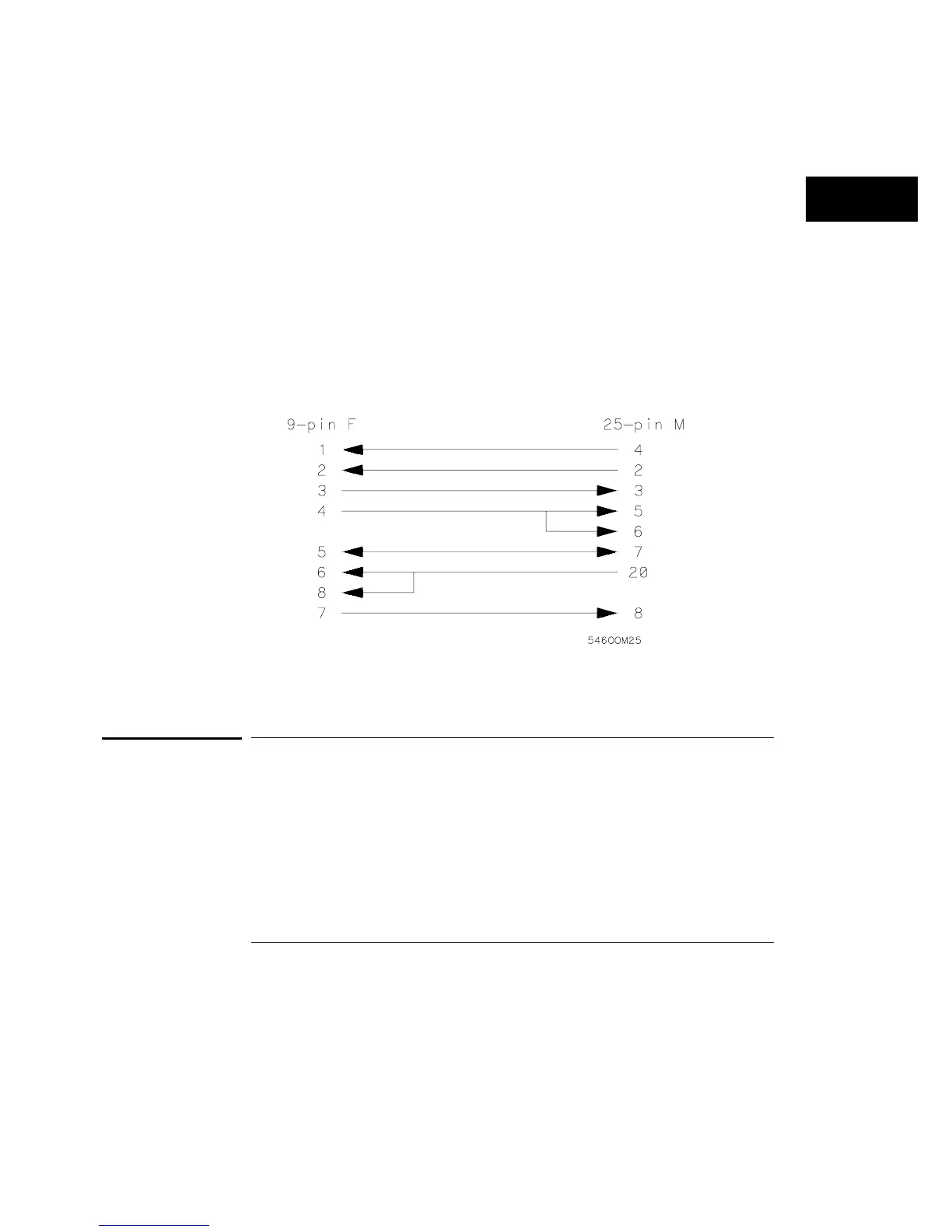

Figure 3-2 shows the schematic of a 9-pin female to 25-pin male cable. The
following HP cables support this configuration:
•
HP 24542G, DB-9(F) to DB-25(M), 3 meter
•
HP 24542H, DB-9(F) to DB-25(M), 3 meter, shielded
•
HP 45911-60009, DB-9(F) to DB-25(M), 1.5 meter
Figure 3-2
9-pin (F) to 25-pin (M) Cable
Configuring the Logic Analysis System Interface
The RS-232 Settings field in the System Configuration Menu allows you
access to the RS-232 Settings menu where the RS-232-C interface is
configured. If you are not familiar with how to configure the RS-232-C
interface, refer to chapter 3, "Configuring Communications," in the
HP 16500C Logic Analysis System User’s Reference.
