VLANs 54
The external Layer 2 switches should also be configured for VLANs and tagging.

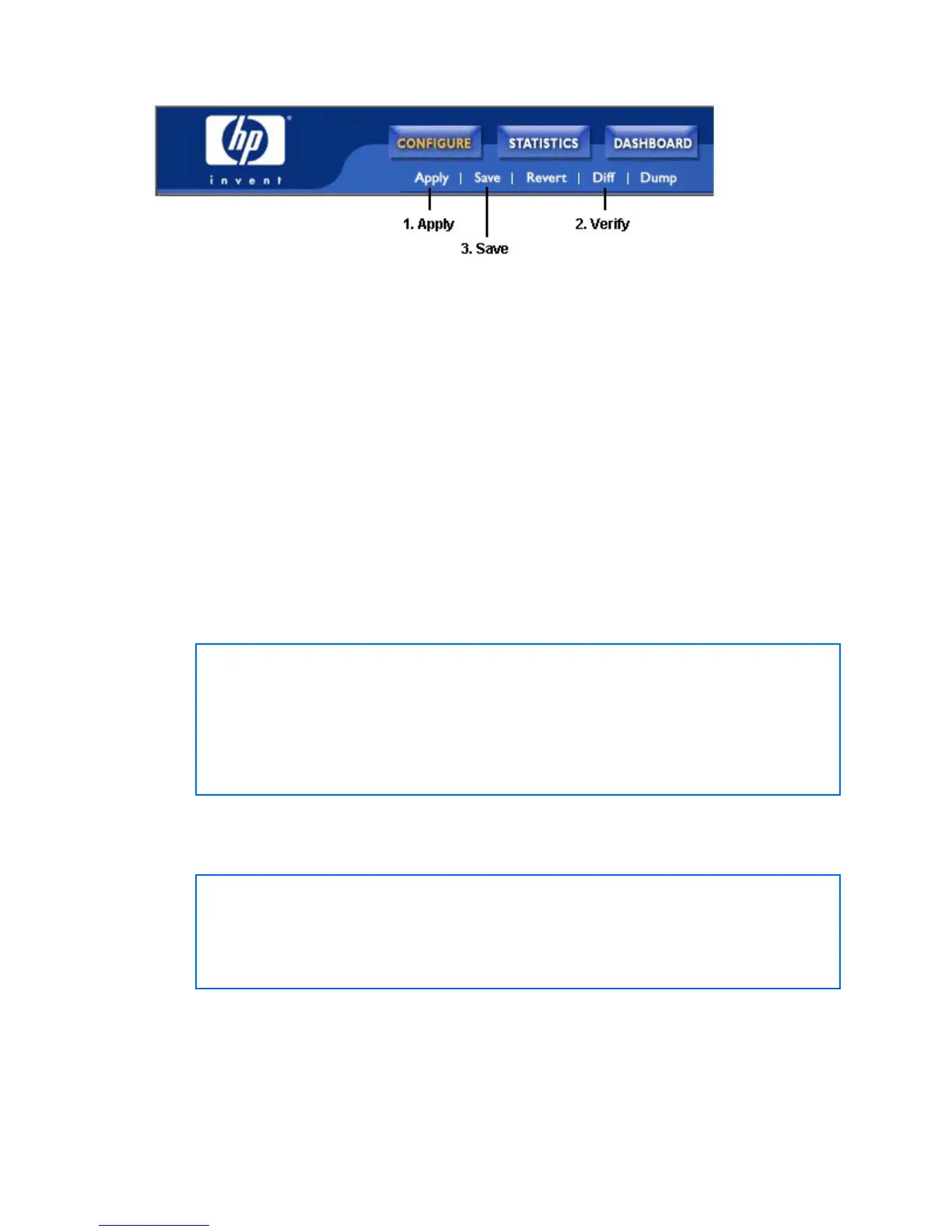

3. Apply, verify, and save the configuration.
FDB static entries
Static entries in the Forwarding Database (FDB) allow the switch to forward packets without flooding ports to perform
a lookup. A FDB static entry is a MAC address associated with a specific port and VLAN. The switch supports 128
static entries. Static entries are manually configured, using the following command: /cfg/l2/fdb/static
FDB static entries are permanent, so the FDB Aging value does not apply to them. Static entries are manually added
to the FDB, and manually deleted from the FDB.
Incoming frames that contain the static entry as the source MAC can use only ports configured for the static entry.
Trunking support for FDB static entries
A FDB static entry can be added to a port that is a member of a trunk group, as follows:
• Static (manually configured) trunk group
• Dynamic (LACP) trunk group
The trunk group supports the FDB static entry. If the port with the static entry fails, other ports in the trunk handle the
traffic. If the port is removed from the trunk, the static entry is removed from the trunk, but remains configured on the
port.
The FDB information commands (/info/l2/fdb) display trunk support for static FDB entries, if applicable:
>> Forwarding Database# dump
MAC address VLAN Port Trnk State
----------------- ---- ---- ---- -----
00:00:2e:9b:db:f8 1 1 TRK
00:00:5e:00:01:f4 1 24 FWD
00:01:81:2e:b5:60 1 24 FWD
00:02:a5:e9:76:30 1 1 TRK
00:03:4b:e2:15:f1 1 24 FWD
Configuring a static FDB entry
Perform the following actions to configure a static FDB entry:
Main# /cfg/l2/fdb/static (Select static FDB menu)
>> Static FDB# add 00:60:af:00:02:30
Enter VLAN number: 2
Enter port (1-24): 2
>> Static FDB# apply (Apply the configuration)
>> Static FDB# save (Save the configuration)
