Component Identification

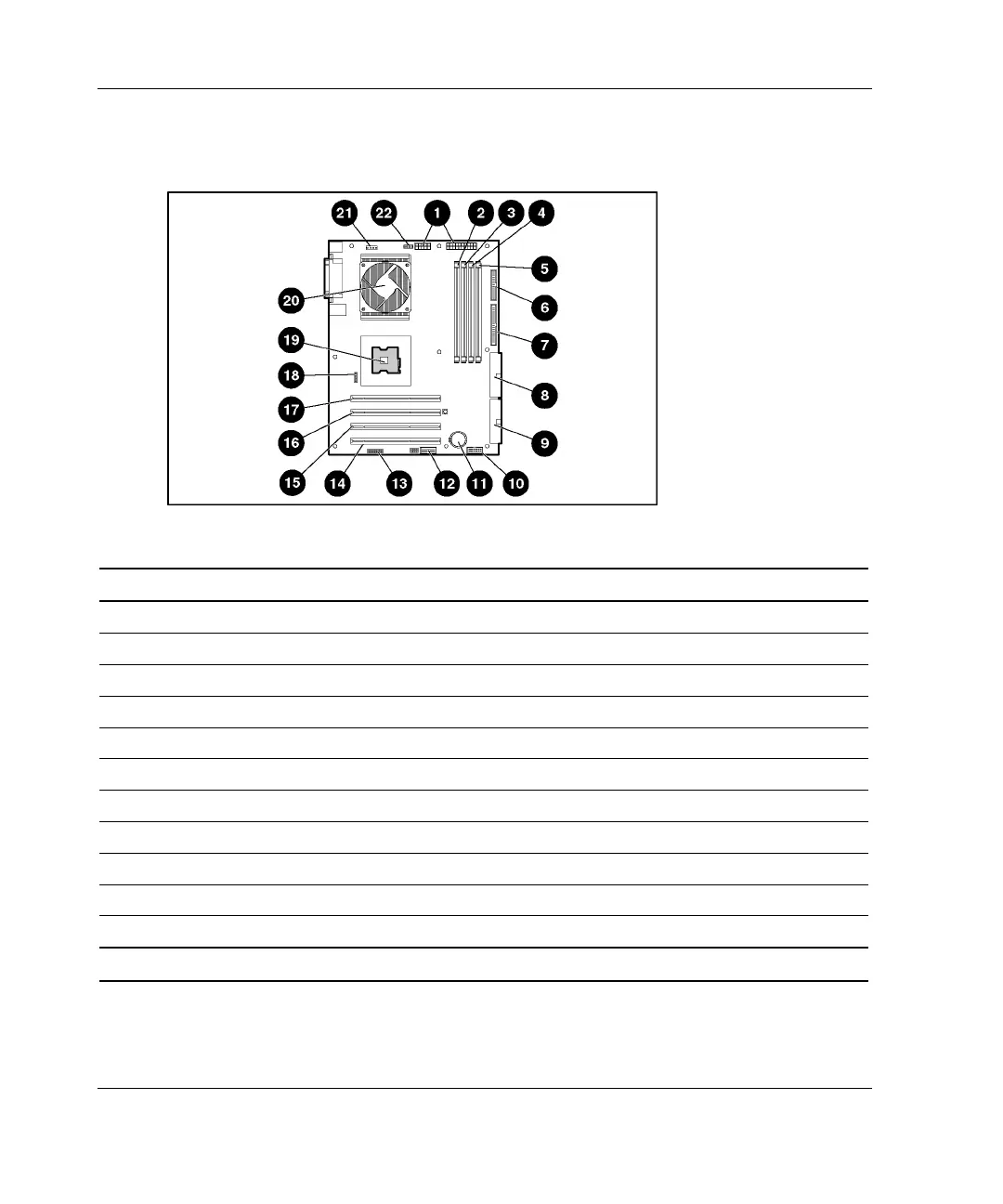

System Board Components
Table 1-6: System Board Components
Item Description Item Description
1 Power supply connectors 12 Remote Insight connector (30-pin)
2 DIMM slot 4 13 System configuration switch
3 DIMM slot 3 14 Expansion slot 4
4 DIMM slot 2 15 Expansion slot 3
5 DIMM slot 1 16 Expansion slot 2
6 Diskette drive connector 17 Expansion slot 1
7 IDE connector (ATAPI devices) 18 Processor fan connector 2
8 ATA/100 RAID primary connector 19 Processor socket 2
9 ATA/100 RAID secondary connector 20 Processor socket 1 (populated)
10 Power button assembly connector 21 System fan connector
11 System battery 22 Processor fan connector 1
Note: In SCSI model servers, the SCSI controller populates expansion slot 1.
1-8 HP ProLiant ML330 Generation 3 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 Component Identification.doc
Codename: Flashback Part Number: 322383-001 Last Saved On: 2/11/03 1:19 PM
