Hardware Options Installation

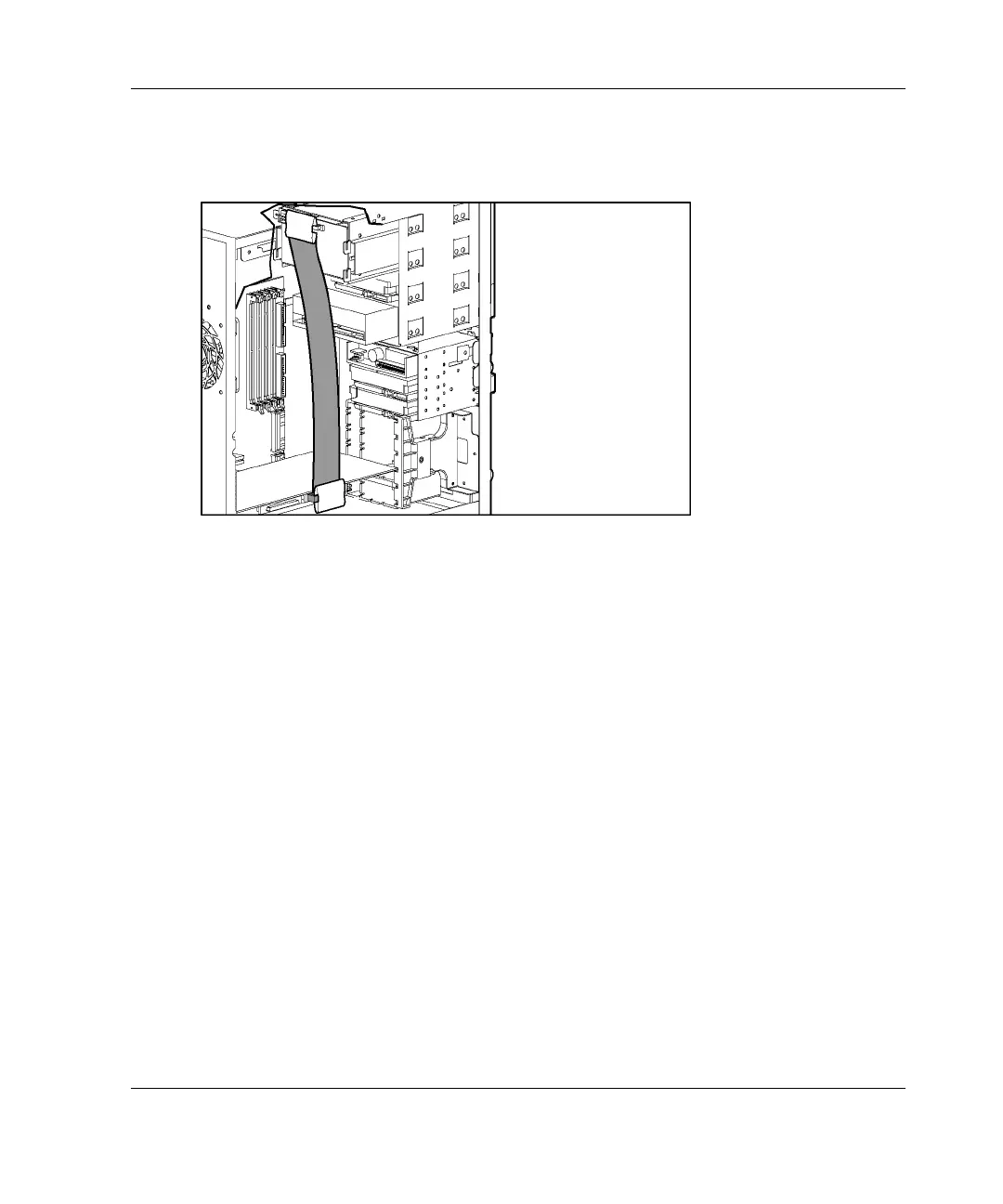

12. Connect the other end of the SCSI cable to the SCSI connector on the SCSI
controller or optional array controller.
For additional information, refer to the HP Internal Two-Bay Hot-Plug SCSI Drive
Cage Installation Instructions.
Expansion Boards
To install an expansion board:
1. Complete the “Preparation Procedures” in this chapter.
2. From inside the chassis, push the expansion slot cover through the rear of the
chassis.
3. Depending on the length of the expansion card, do one of the following:
— If the card is full-length, go to step 4.
— If the card is half-length, go to step 5.
HP ProLiant ML330 Generation 3 Server Setup and Installation Guide 4-27
HP CONFIDENTIAL
Writer: Rob Weaver File Name: e-ch4 Hardware Options Installation.doc
Codename: Flashback Part Number: 322383-001 Last Saved On: 2/11/03 1:24 PM
