Hardware Options Installation

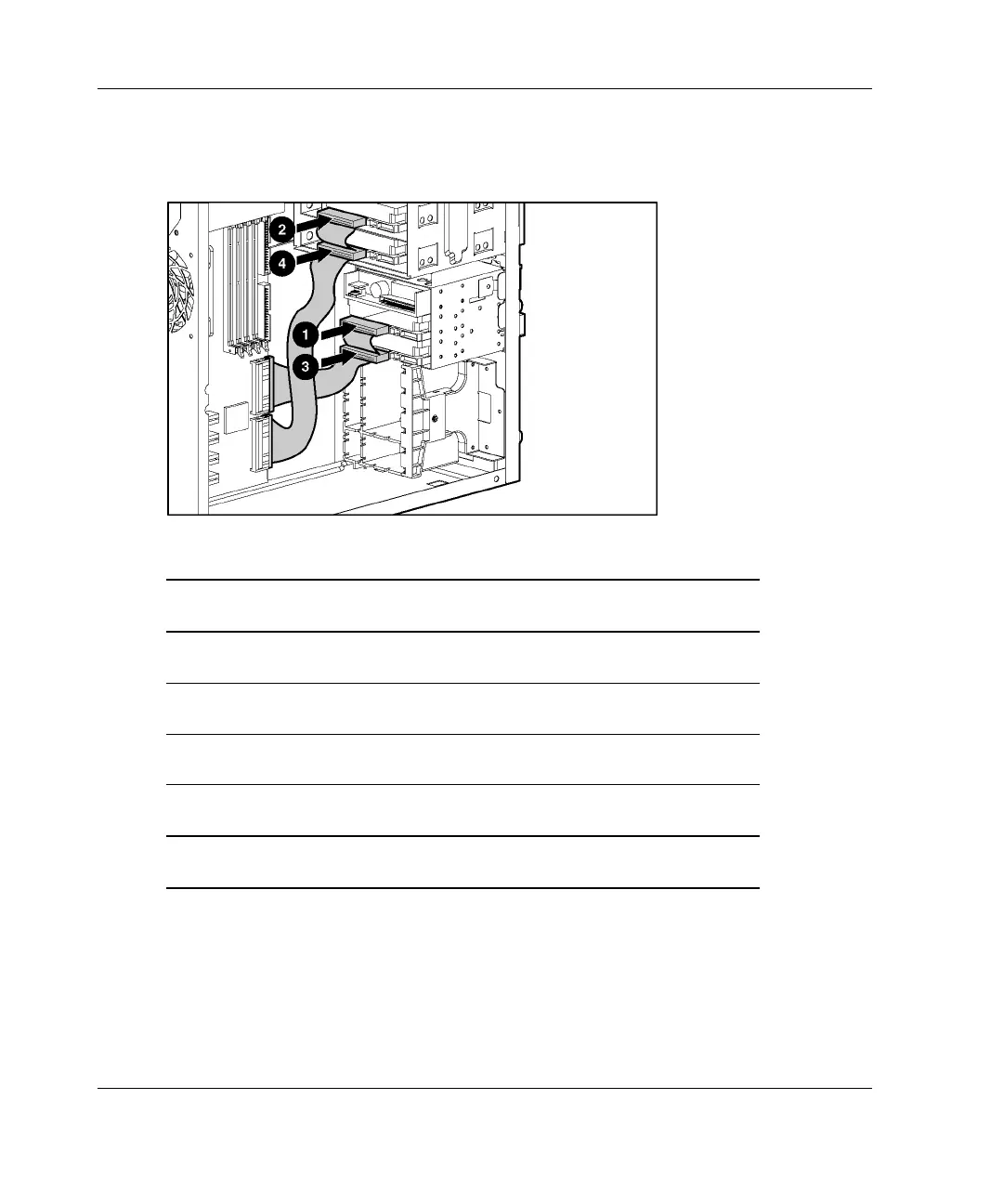

3. Connect the next available ATA cable connector to the hard drive. Use the
following cable sequence.
Table 4-1: ATA Cabling Sequence
Connection
Order
System Board
Connector
Cable
Connector
Drive Location
1 ATA/100 RAID
primary controller
Device 0 Hard drive bay 2
2 ATA/100 RAID
secondary controller
Device 0 Media bay 3
3 ATA/100 RAID
primary controller
Device 1 Hard drive bay 3
4 ATA/100 RAID
secondary controller
Device 1 Media bay 4
Note: For drive bay locations, refer to Chapter 1, “Component
Identification.”
4. Connect the next available power cable connector to the hard drive.
For more information about connecting ATA cables, refer to “Drive Connection
Tips” in Chapter 6, “RAID Configuration and Management.”
4-18 HP ProLiant ML330 Generation 3 Server Setup and Installation Guide
HP CONFIDENTIAL
Writer: Rob Weaver File Name: e-ch4 Hardware Options Installation.doc
Codename: Flashback Part Number: 322383-001 Last Saved On: 2/11/03 1:24 PM
