Hardware Options Installation
Installing a Hard Drive into a Hard Drive Bay
To install a 3.5-in hard drive into a hard drive bay:
1. Complete the “Preparation Procedures” in this chapter.
2. Disconnect the power and data cables from the back of all devices located in the
hard drive compartment.

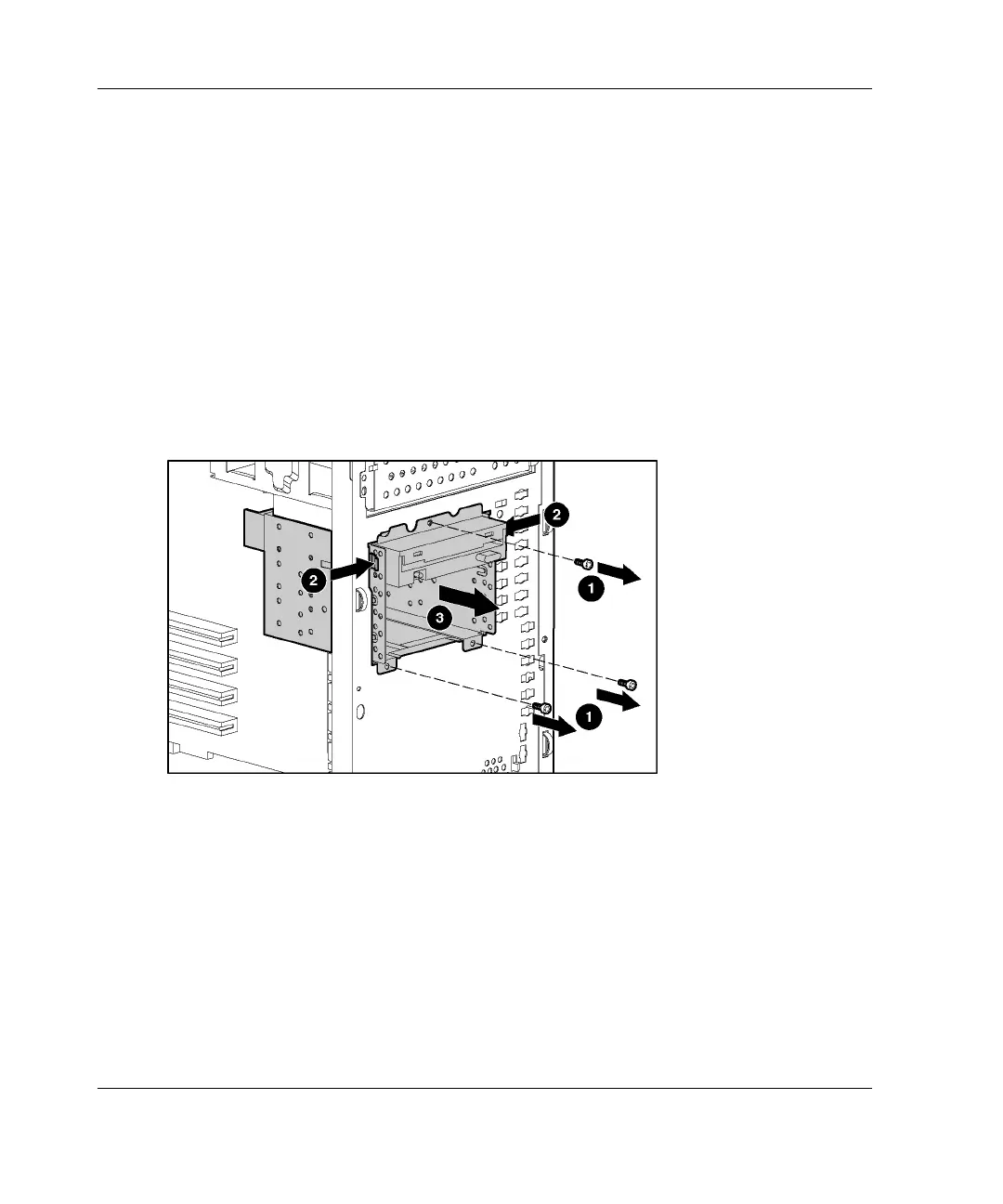

3. Remove the drive compartment:
a. Remove the three shipping screws.
b. Press the tabs on each side of the drive compartment.
c. Pull the drive compartment out of the chassis.
4. Configure the device:
— For SCSI devices, set the SCSI ID on the drive. You must manually set the
SCSI ID on each device to a unique value in the range of 0 to 6 for each
SCSI bus. Refer to the documentation provided with the device for
instructions on how to set the SCSI ID.
— For ATA devices, be sure that the jumper on the drive is set to Cable Select
(CS) so that the drive device ID is determined by the cable. For more
information, refer to “Cabling a Hard Drive” in this chapter.
