Component Identification

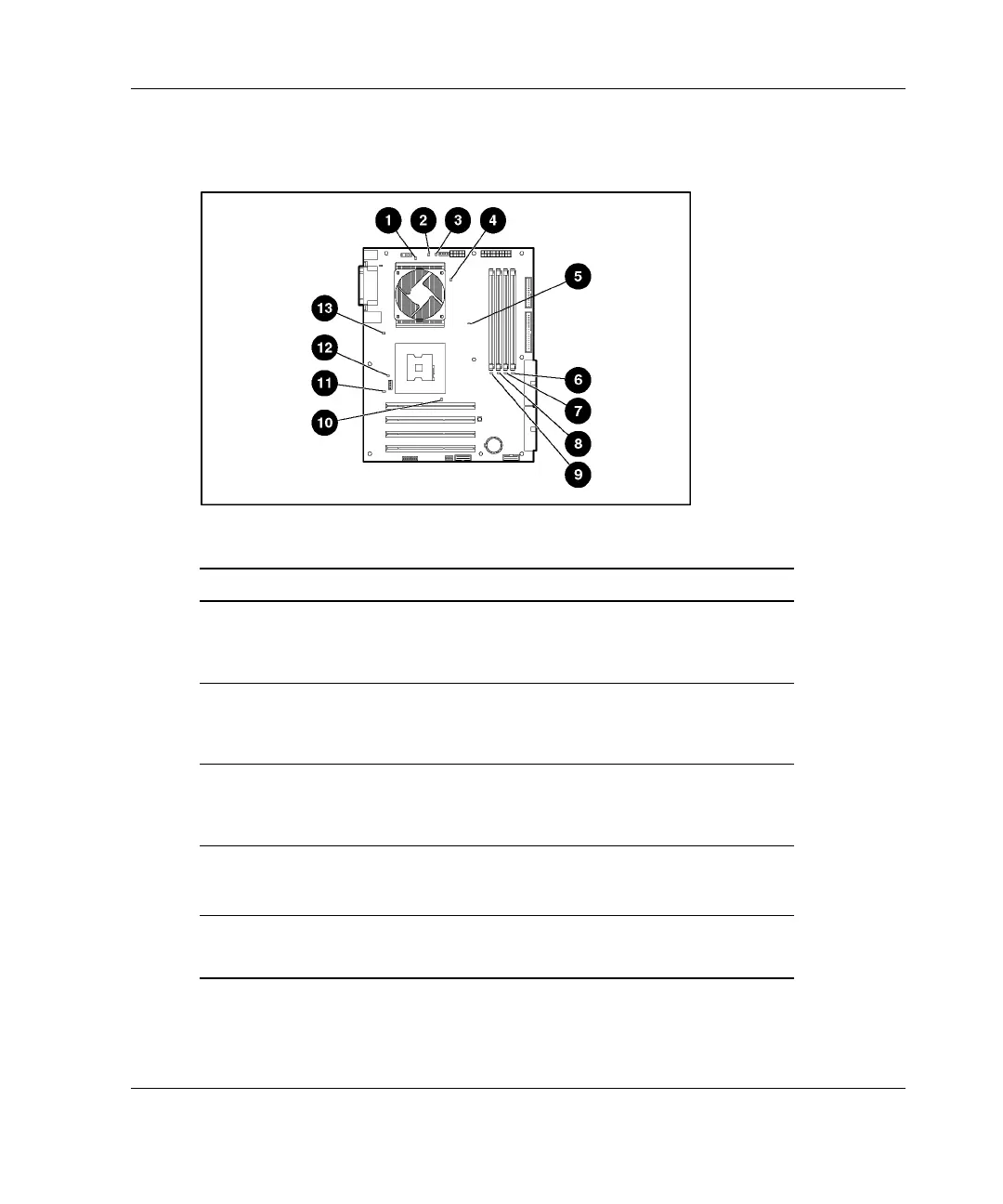

System Board LEDs
Table 1-8: System Board LEDs
Item LED Description Status
1 System fan failure Amber = The system fan has failed or is
not installed.
Off = The system fan is functioning.
2 Processor 1 failure Amber = Processor 1 has failed or is not
installed.
Off = Processor 1 is functioning.
3 Processor fan 1
failure
Amber = Processor fan 1 has failed or is
not installed.
Off = Processor fan 1 is functioning.
4 Processor power
connector not
installed
Amber = Power connector is not installed.
Off = Power connector is installed.
5 Integrated PPM
failure
Amber = The PPM has failed.
Off = The PPM is functioning.
continued
HP ProLiant ML330 Generation 3 Server Setup and Installation Guide 1-11
HP CONFIDENTIAL
Writer: Rob Weaver File Name: b-ch1 Component Identification.doc
Codename: Flashback Part Number: 322383-001 Last Saved On: 2/11/03 1:19 PM
