Removal and Replacement Procedures
PCI-X Slot Release Lever
To remove a PCI-X slot release lever:
1. Power down and remove power from the server. Refer to “Powering Down the Server” in
this chapter.
2. Unlock and open the front bezel (tower server only).
IMPORTANT: You must unlock the tower bezel before removing the access panel. Refer to “Front
Bezel” in this chapter.
3. Remove the access panel. Refer to “Access Panel” in this chapter.
4. Remove the expansion slot cover. Refer to “PCI-X Expansion Slot Cover” in this chapter.
5. From behind the chassis, push up on the lever locking tab (1).
6. Pull the release lever forward to disengage the rear tabs from the server wall (2).

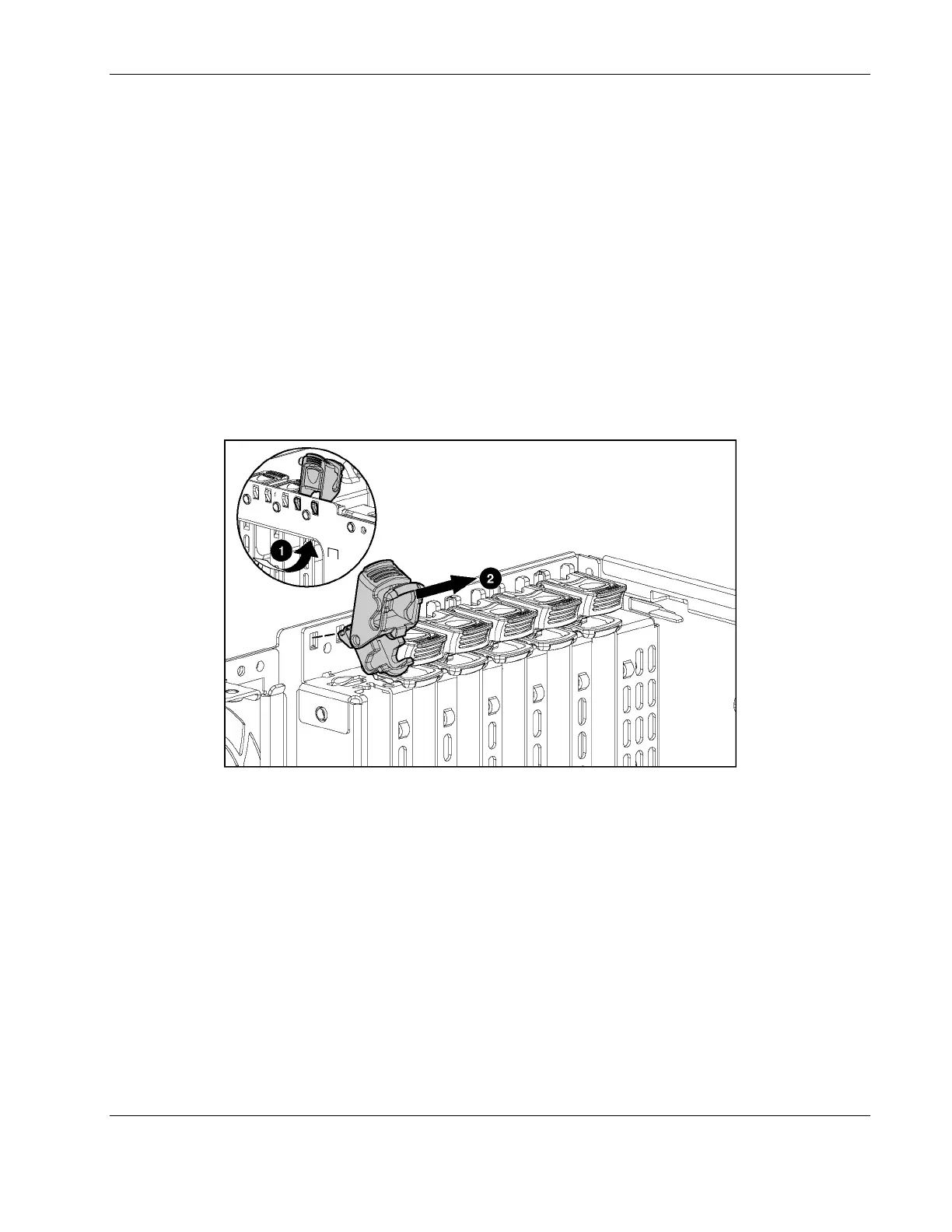

Figure 2-30: Removing a PCI-X slot release lever
7. Remove the slot release lever from the chassis.
8. Repeat steps 5 through 7 to remove other slot release levers.
To replace slot release levers, reverse steps 5 through 7.
IMPORTANT: Be sure that the lever locking tab is locked into place. If it is not, it does not retain the
expansion boards properly.
HP ProLiant ML370 Generation 3 Server Maintenance and Service Guide 2-33
