HP Z400 User Manual

Expansion card slot identification
This section identifies and describes workstation expansion card slots, and presents card configuration
information.
Slot identification and description
The following figure identifies workstation expansion card slots.

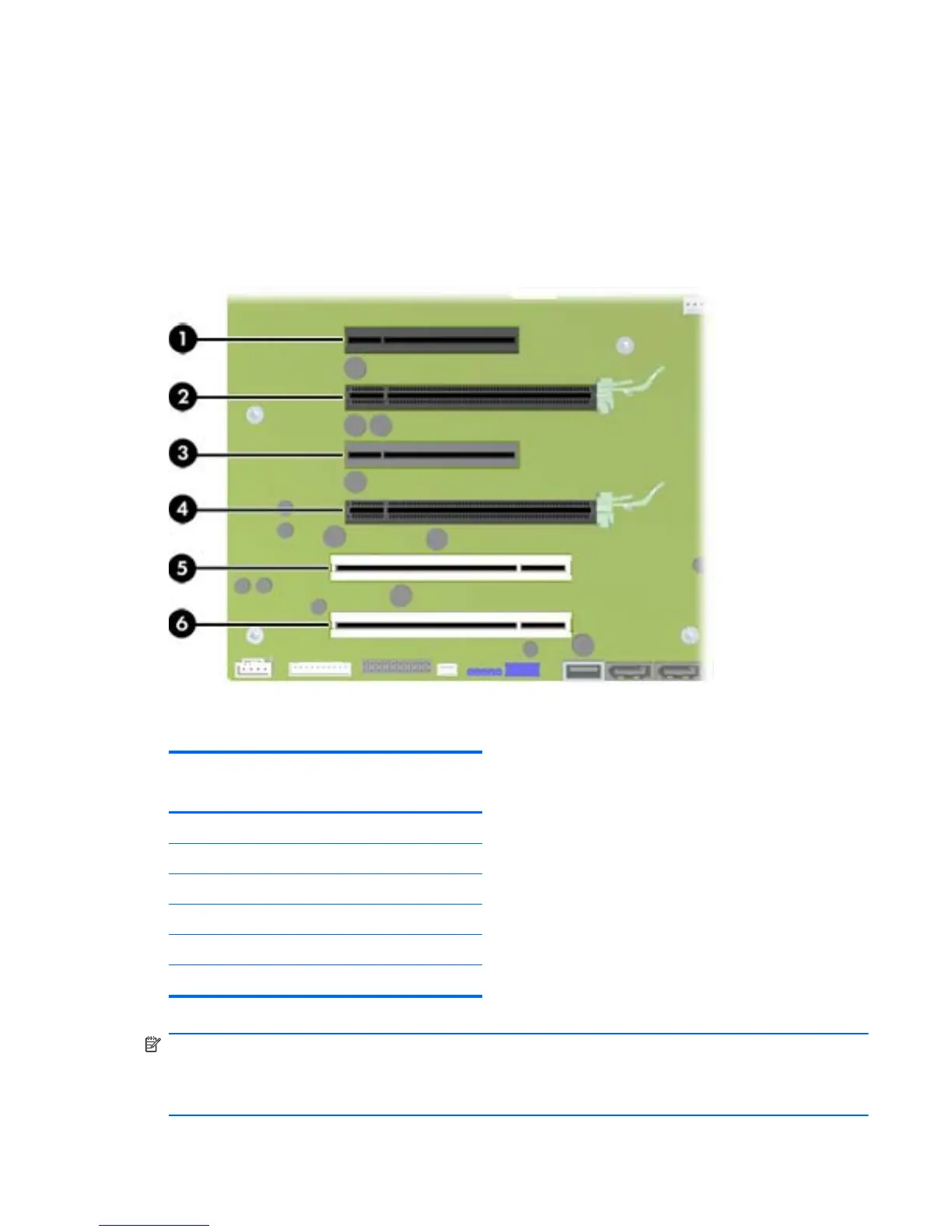

Figure 5-48 Identifying expansion card slots
The following table describes the workstation PCIe card slots.
Table 5-6 PCI slots
Slot Type Slot power
(Maximum)
1 PCIe2 - x8(4) 25W
2 PCIe2 - x16 75W
3 PCIe - x8(4) 25W
4 PCIe2 - x16 75W
5 PCI 32/33 25W
6 PCI 32/33 25W
NOTE: The x1, x4, x8, and x16 designators describe the mechanical length of the slot. The number
in parentheses shows how many electrical PCIe lanes are routed to the expansion slot. For example,
x16(8) means that the expansion slot is mechanically a x16 length connector, with eight PCIe lanes
connected. A x16 PCIe card runs at the bandwidth of the slot it is plugged into.
ENWW
Removing and installing components
121

HP Z400 Specifications

General

Bus type	QPI
Processor cache	4 MB
Processor cores	2
Processor model	W3503
System bus rate	4.8 GT/s
Processor socket	-
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	24 GB
Audio system	Realtek ALC262
Product type	Workstation
Motherboard chipset	Intel® X58 Express
Memory slots	6x DIMM
Internal memory	4 GB
Memory channels	Triple-channel
Memory clock speed	1066 MHz
Memory layout (slots x size)	- GB
Graphics card	Quadro 600
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
HDD speed	- RPM
RAID levels	0, 1, 5, 10
HDD capacity	500 GB
HDD interface	SATA II
Storage media	HDD
Display included	No
USB 2.0 ports quantity	8
Parallel ports quantity	0
Chassis type	Minitower
Country of origin	China
Number of 5.25\" bays	3
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Power supply	475 W
Processor ARK ID	40800
Processor package size	42.5 x 45 mm
Supported instruction sets	SSE4.2

Weight and Dimensions

Depth	455.3 mm
Width	167.9 mm
Height	450.2 mm
Weight	13500 g
