6. Disconnect the CPU heatsink fan cable from the system board (1), as shown in the following
figure.

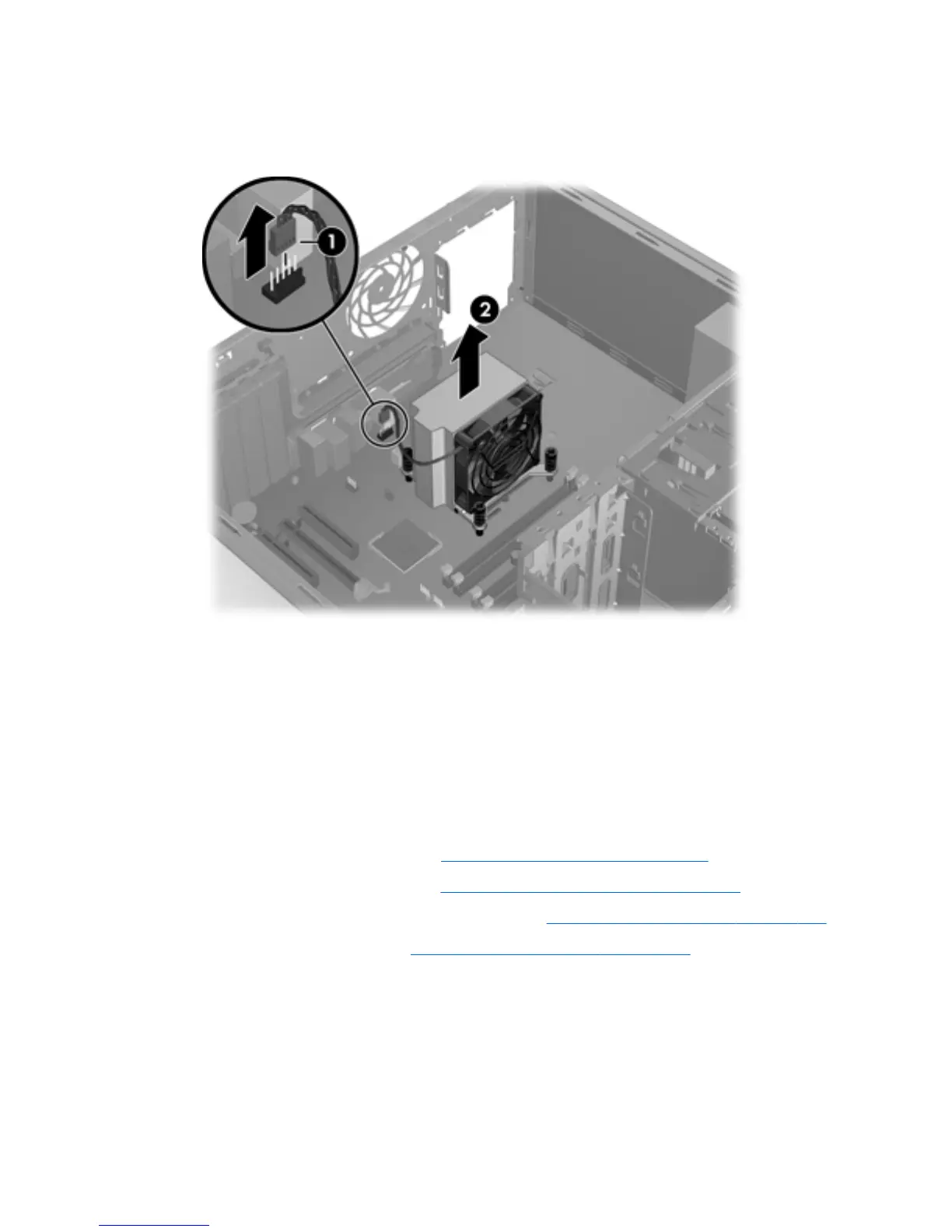

Figure 5-80 Disconnecting the heatsink fan cable
7. Before lifting the heatsink, gently twist the heatsink to break the thermal compound between the
CPU and the heatsink.
8. Lift the CPU heatsink out of the chassis (2).
9. Use alcohol and a soft cloth to clean the thermal interface residue from the CPU and the heatsink,
allowing the alcohol on the CPU and CPU heatsink to dry completely.
Installing the CPU heatsink
To install a heatsink:
1. Disconnect power from the system (
Predisassembly procedures on page 75).
2. Remove the side access panel (see
Removing the side access panel on page 78).
3. If your system has an airflow guide, remove it (see
Removing the airflow guide on page 110).
4. Remove the CPU heatsink (see
Removing the CPU heatsink on page 154).
5. Perform one of the following tasks:
●
If you are reusing the original heatsink, apply thermal compound to the center of the CPU top
surface.
●
If you are using a new CPU heatsink, do not apply thermal compound to the CPU because
the new heatsink already has thermal compound applied to the heatsink surface. Instead,
remove the thermal compound protective liner from the bottom of the new heatsink.
ENWW
Removing and installing components
155

HP Z400 Specifications

General

Bus type	QPI
Processor cache	4 MB
Processor cores	2
Processor model	W3503
System bus rate	4.8 GT/s
Processor socket	-
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor manufacturer	Intel
PCI Express slots version	2.0
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Maximum internal memory supported by processor	24 GB
Audio system	Realtek ALC262
Product type	Workstation
Motherboard chipset	Intel® X58 Express
Memory slots	6x DIMM
Internal memory	4 GB
Memory channels	Triple-channel
Memory clock speed	1066 MHz
Memory layout (slots x size)	- GB
Graphics card	Quadro 600
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
HDD speed	- RPM
RAID levels	0, 1, 5, 10
HDD capacity	500 GB
HDD interface	SATA II
Storage media	HDD
Display included	No
USB 2.0 ports quantity	8
Parallel ports quantity	0
Chassis type	Minitower
Country of origin	China
Number of 5.25\" bays	3
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Power supply	475 W
Processor ARK ID	40800
Processor package size	42.5 x 45 mm
Supported instruction sets	SSE4.2

Weight and Dimensions

Depth	455.3 mm
Width	167.9 mm
Height	450.2 mm
Weight	13500 g
