HP ZBook 15u G5 User Manual

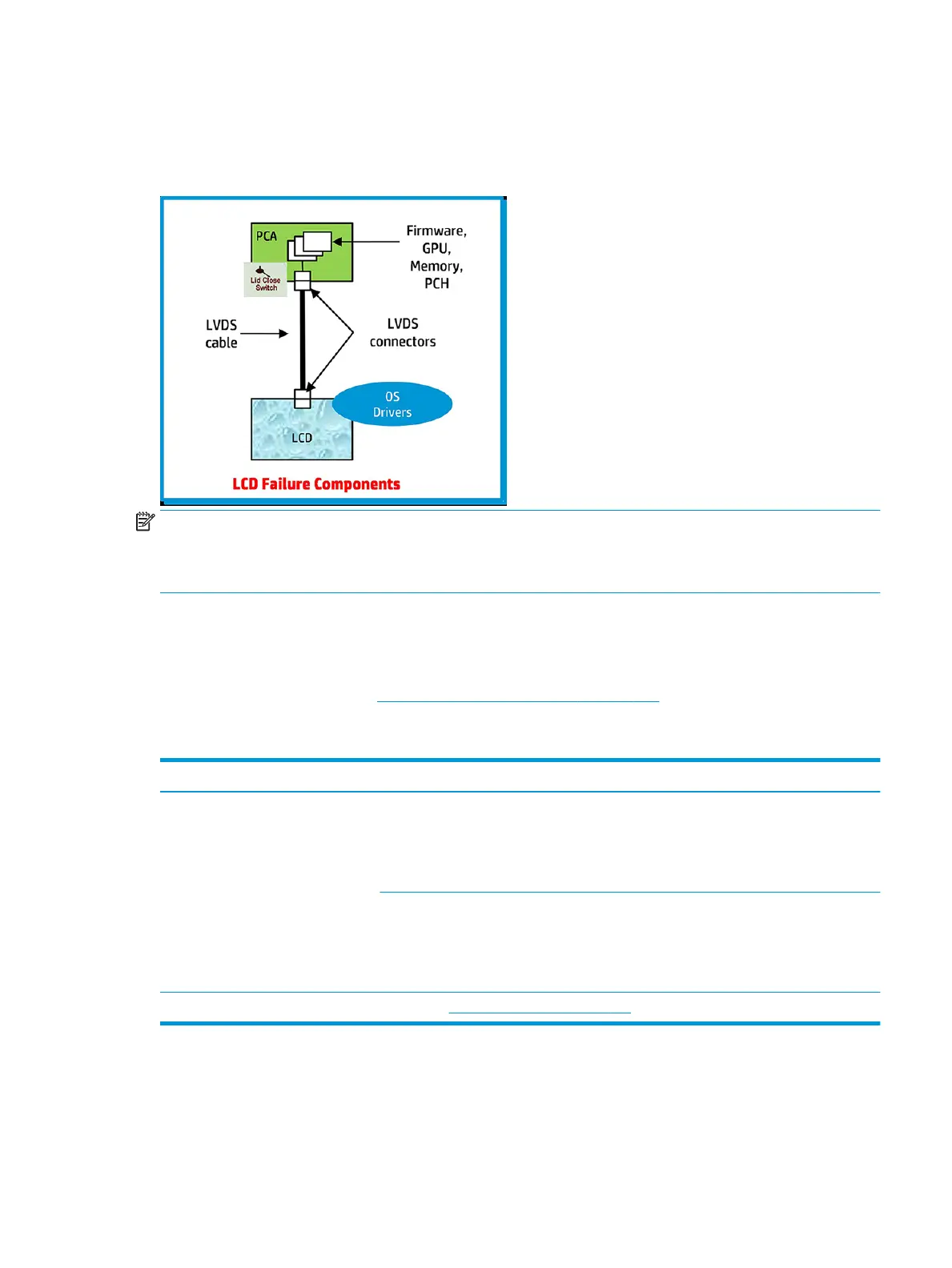

Display assembly diagram
The display assembly diagram shows basic video components: system board, graphics cards, display cables,
display connectors, operating system (OS), graphics driver, and LCD display panel. Any component or a
combination of these components can contribute to a video issue.
NOTE: The lid close switch is a Hall-eect sensor located in the top cover. When the display is closed, the
sensor acts like a switch is closed. A notebook can force a video output to an external monitor, or go to
hibernation or standby mode through power management. If the display screen does not light up when the
display is open, the lid close switch (Hall-eect sensor) could be faulty.
Dead pixel
Display panel may show one or more pixels that are not properly lit when displaying a single color over the
screen area. Use HP PC Hardware Diagnostics (UEFI) tool to determine those defective pixels. There is no
solution for dead pixels. Refer to Display Issue: Pixel Anomalies on page 158 for the HP dead pixel policy.
No video (internal)
Items Procedures
Symptoms
No internal video with certain
programs (i.e., video-intensive games)
Possible causes
Display resolution, brightness, faulty lid switch, running a program requiring a higher
resolution than the display screen can support..
Faulty lid switch may put the system into Sleep or Hibernation mode.
Troubleshooting steps
Use an external monitor with higher resolution.
Test with external monitor using HDMI or HP port. Press the power button and close the
computer lid to force video output to external video. If there is still no video, contact support.
References See section No video (with power) on page 111 for display information.
Common issues and possible solutions 125

HP ZBook 15u G5 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Gray
Country of origin	China
Panel type	UWVA
Touchscreen	-
LED backlight	Yes
Display diagonal	15.6 \
Native aspect ratio	16:9
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Number of built-in speakers	2
HP segment	Business
HP speaker type	HP Dual Speakers
Front camera HD type	HD
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Pointing device	Touchpad
AC adapter power	- W
On-board graphics card ID	0x5917
On-board graphics card model	Intel® UHD Graphics 620
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Battery capacity	56 Wh
Number of battery cells	3
Bus type	OPI
Stepping	Y0
Tjunction	100 °C
Processor cache	8 MB
Processor cores	4
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor socket	BGA 1356
Processor threads	8
Processor codename	Kaby Lake R
Configurable TDP-up	25 W
Processor frequency	1.9 GHz
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	4.2 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR3L8
Processor ARK ID	124968
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	370.8 mm
Height	18.6 mm
Weight	1770 g
