HP ZBook 15u G5 User Manual

Items Procedures
●
http://h20564.www2.hp.com/hpsc/doc/public/display?
docLocale=en_US&docId=emr_na-c00816938.

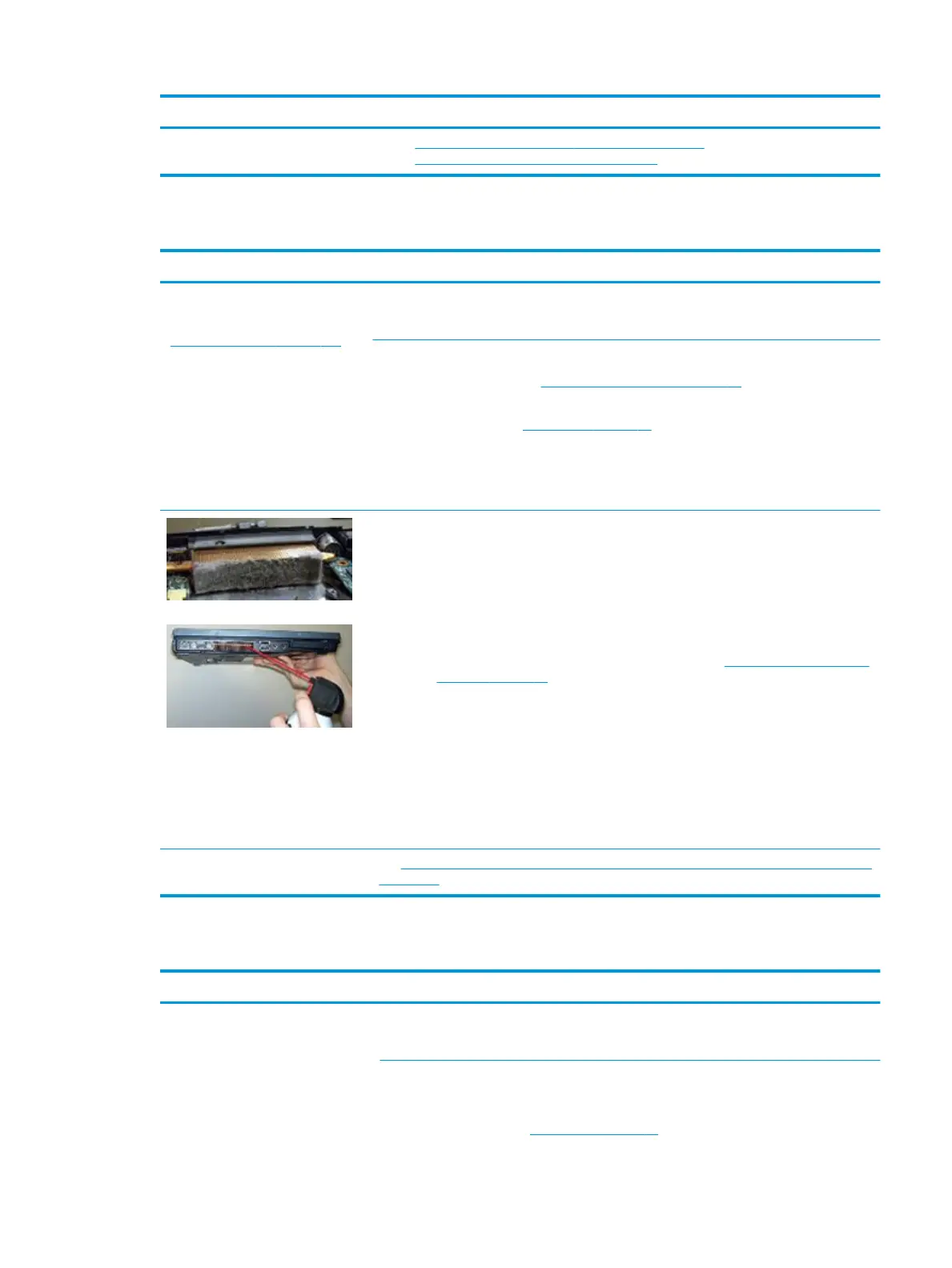

Thermal shutdown (hot)
Items Procedures
Symptoms
Similar to fan runs constantly issue
(Fan runs constantly on page 144)
●
System shutdown
●
Abnormal heat
●
Continually running fan
●
Decreased computer
performance
Possible causes
BIOS not up to date, thermal condition (fan, air ow)
Troubleshooting steps
1. Update BIOS and drivers (4. Update BIOS and drivers on page 90) and reset BIOS to
default. BIOS may implement new fan characteristics and updates for other component.
2. Perform a hard reset (8. Hard reset on page 98). Performing a hard reset can reset
recorded thermal values in memory.
3. Determine whether you are using a correct AC adapter.
4. Be sure to turn power o completely when putting a notebook in a travel bag.
Thermal-related issue
1. Verify thermal condition:
a. Check fan and connection. Reseat fan cable.
b. Be sure that no obstructions or dust are in heat sink fan, n, or vent.
c. Be sure that the notebook is not sitting on a hot surface that blocks vent intakes.
d. Test fan using HP PC Hardware Diagnostics (UEFI) tool (6. HP Hardware Diagnostics
and Tools on page 91). Be sure that the fan is not producing a loud noise and that
fan blades spin correctly.
e. Test with a veried working fan.
f. Remove old thermal compound and pads, and replace properly with new pads.
2. Verify thermal solution:
○
Use Thermal Monitor tool (available only to authorized service providers/
technicians) to run stress test (processor and GPU) and verify that thermal sensors
are within limits after thermal condition is serviced.
Note See http://h20564.www2.hp.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-
c01657439.
Stuck power button
Items
Procedures
Symptoms
●
Rear power indicator light is on
●
Will not turn on when power
button is pressed
●
Automatically powers on
Possible causes
Sticky or defective power button.
Troubleshooting steps
General actions
1. Perform a hard reset (8. Hard reset on page 98).
Common issues and possible solutions 145

HP ZBook 15u G5 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Gray
Country of origin	China
Panel type	UWVA
Touchscreen	-
LED backlight	Yes
Display diagonal	15.6 \
Native aspect ratio	16:9
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Number of built-in speakers	2
HP segment	Business
HP speaker type	HP Dual Speakers
Front camera HD type	HD
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Pointing device	Touchpad
AC adapter power	- W
On-board graphics card ID	0x5917
On-board graphics card model	Intel® UHD Graphics 620
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Battery capacity	56 Wh
Number of battery cells	3
Bus type	OPI
Stepping	Y0
Tjunction	100 °C
Processor cache	8 MB
Processor cores	4
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor socket	BGA 1356
Processor threads	8
Processor codename	Kaby Lake R
Configurable TDP-up	25 W
Processor frequency	1.9 GHz
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	4.2 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR3L8
Processor ARK ID	124968
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	370.8 mm
Height	18.6 mm
Weight	1770 g
