HP ZBook 15u G5 User Manual

USB board
Description Spare part number
USB board (includes bracket) L14380-001
Before removing the USB board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the bottom cover (see Bottom cover on page 36).
5. Disconnect the battery cable from the system board (see Battery on page 50).

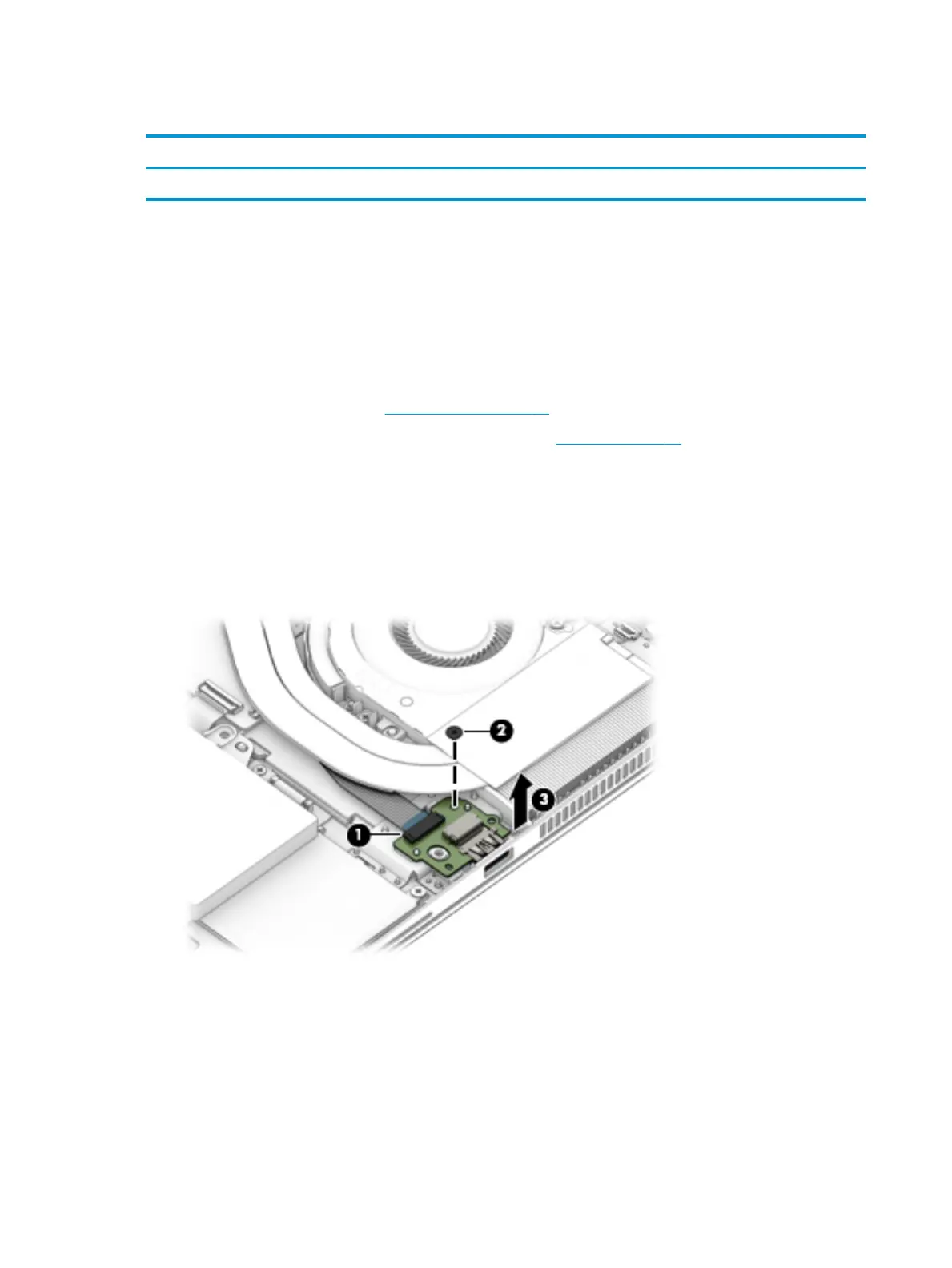

Remove the USB board:
1. Disconnect the cable from the USB board (1).
2. Remove the Phillips M2.0×3.0 screw (2) that secures the board to the computer.
3. Lift the bracket from atop the board (3).
4. Remove the board from the computer (4).
Reverse this procedure to install the USB board.
56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP ZBook 15u G5 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Gray
Country of origin	China
Panel type	UWVA
Touchscreen	-
LED backlight	Yes
Display diagonal	15.6 \
Native aspect ratio	16:9
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Number of built-in speakers	2
HP segment	Business
HP speaker type	HP Dual Speakers
Front camera HD type	HD
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Pointing device	Touchpad
AC adapter power	- W
On-board graphics card ID	0x5917
On-board graphics card model	Intel® UHD Graphics 620
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Battery capacity	56 Wh
Number of battery cells	3
Bus type	OPI
Stepping	Y0
Tjunction	100 °C
Processor cache	8 MB
Processor cores	4
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor socket	BGA 1356
Processor threads	8
Processor codename	Kaby Lake R
Configurable TDP-up	25 W
Processor frequency	1.9 GHz
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	4.2 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR3L8
Processor ARK ID	124968
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	370.8 mm
Height	18.6 mm
Weight	1770 g
