HP ZBook 15u G5 User Manual

Items Procedures
Be sure that external display cables have good connection at both ends (system board and
display panel).
●
If moving cables aects the image, it is display cable. Test with a conrmed working
cable.
●
If moving cables does not aect the image, is display issue. Test with a conrmed
working display
Touch screen
Items Procedures
Symptoms
Unresponsive
Inaccurate
Possible causes
Dirt and smudge, driver, touch display conguration, power management.
Troubleshooting steps
Quick check
Turn o the computer, spray glass cleaner onto a soft, damp cloth, and gently
wipe the screen to remove dirt and smudge.
NOTE: Do not spray cleaner directly onto the screen.
Congure the touch display in Control Panel >
Tablet PC Settings
1. Restart the computer.
2. Verify touch screen and graphics drivers.

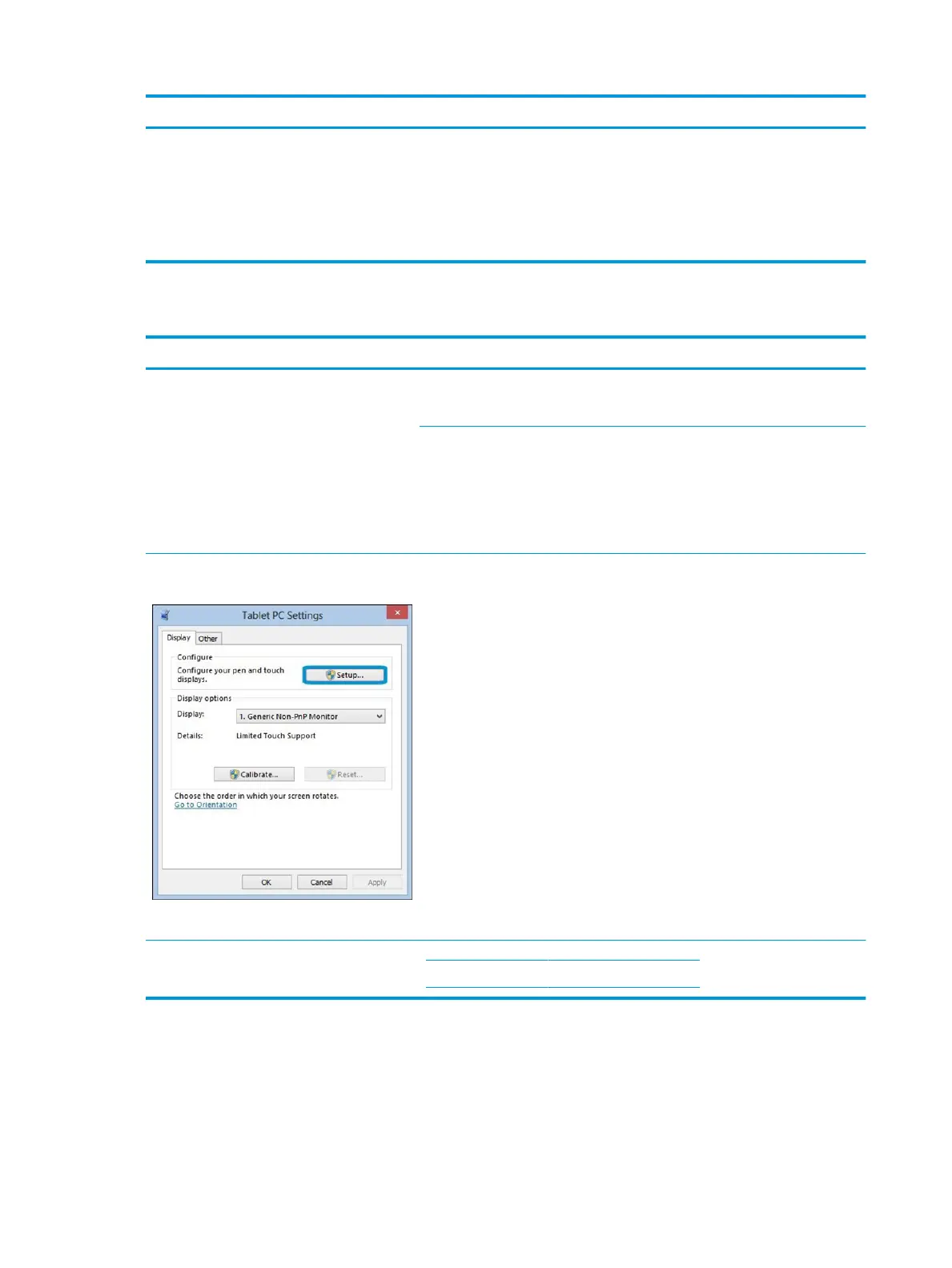

3. Congure the touch display to identify the screen as a touch screen as shown
in the image at left.
4. Calibrate the screen and reset if touch functionality is still not working
correctly.
5. Perform diagnostic test in HP Hardware Diagnostics under Component Tests
> Touch Screen.
If the diagnostics tests pass but the touch screen still does not respond,
continue following the steps.
6. Adjust the power management settings for your touch screen.
If the touch screen stops working after waking from sleep, adjust the power
management settings so that the touch screen device stays active while the
computer is in sleep mode.
7. Perform Microsoft System Restore and restore to a time when the system
was working.
8. Perform HP System Recovery if none of the above actions resolves the issue.
References http://support.hp.com/us-en/document/c04789449
http://support.hp.com/us-en/document/c04676089
128 Chapter 8 Troubleshooting guide

HP ZBook 15u G5 Specifications

General

Form factor	Clamshell
Product type	Mobile workstation
Product color	Gray
Country of origin	China
Panel type	UWVA
Touchscreen	-
LED backlight	Yes
Display diagonal	15.6 \
Native aspect ratio	16:9
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
Storage media	SSD
Total storage capacity	512 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Number of built-in speakers	2
HP segment	Business
HP speaker type	HP Dual Speakers
Front camera HD type	HD
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Pointing device	Touchpad
AC adapter power	- W
On-board graphics card ID	0x5917
On-board graphics card model	Intel® UHD Graphics 620
On-board graphics card family	Intel® UHD Graphics
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1150 MHz
Battery capacity	56 Wh
Number of battery cells	3
Bus type	OPI
Stepping	Y0
Tjunction	100 °C
Processor cache	8 MB
Processor cores	4
System bus rate	4 GT/s
Processor family	Intel® Core™ i7
Processor socket	BGA 1356
Processor threads	8
Processor codename	Kaby Lake R
Configurable TDP-up	25 W
Processor frequency	1.9 GHz
Configurable TDP-down	10 W
Processor lithography	14 nm
Processor manufacturer	Intel
PCI Express slots version	3.0
Processor boost frequency	4.2 GHz
Processor operating modes	64-bit
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR3L8
Processor ARK ID	124968
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	251 mm
Width	370.8 mm
Height	18.6 mm
Weight	1770 g
