Table 6-3 Specifications of the ground cable
Item Description
Cable type Power cable
Color Green-yellow
Connector type (X1/X2) OT/OT naked crimping terminal
Gauge
10 AWG (cross-sectional area ≈ 5.2 mm
2
[0.0081 in.
2
])
Cable type
l Standards compliance: H07Z-K UL3386
l Length: 0.3 m
Maximum current 50.0 A
Fireproof level VW-1, CSA FT1
6.4 Console Cable
A console cable is used to debug or maintain a local device.
Application
A console cable connects the console port of the device to the serial port of an operation terminal
to transmit configuration data. A shielded cable or an unshielded cable can be used according
to the onsite situation.
A console cable connects the device and terminal as follows:
l The 8-pin RJ45 connector is inserted into the console port of the device.
l The DB9 male connector is connected to an operation terminal, which is usually a PC.
Appearance and Structure

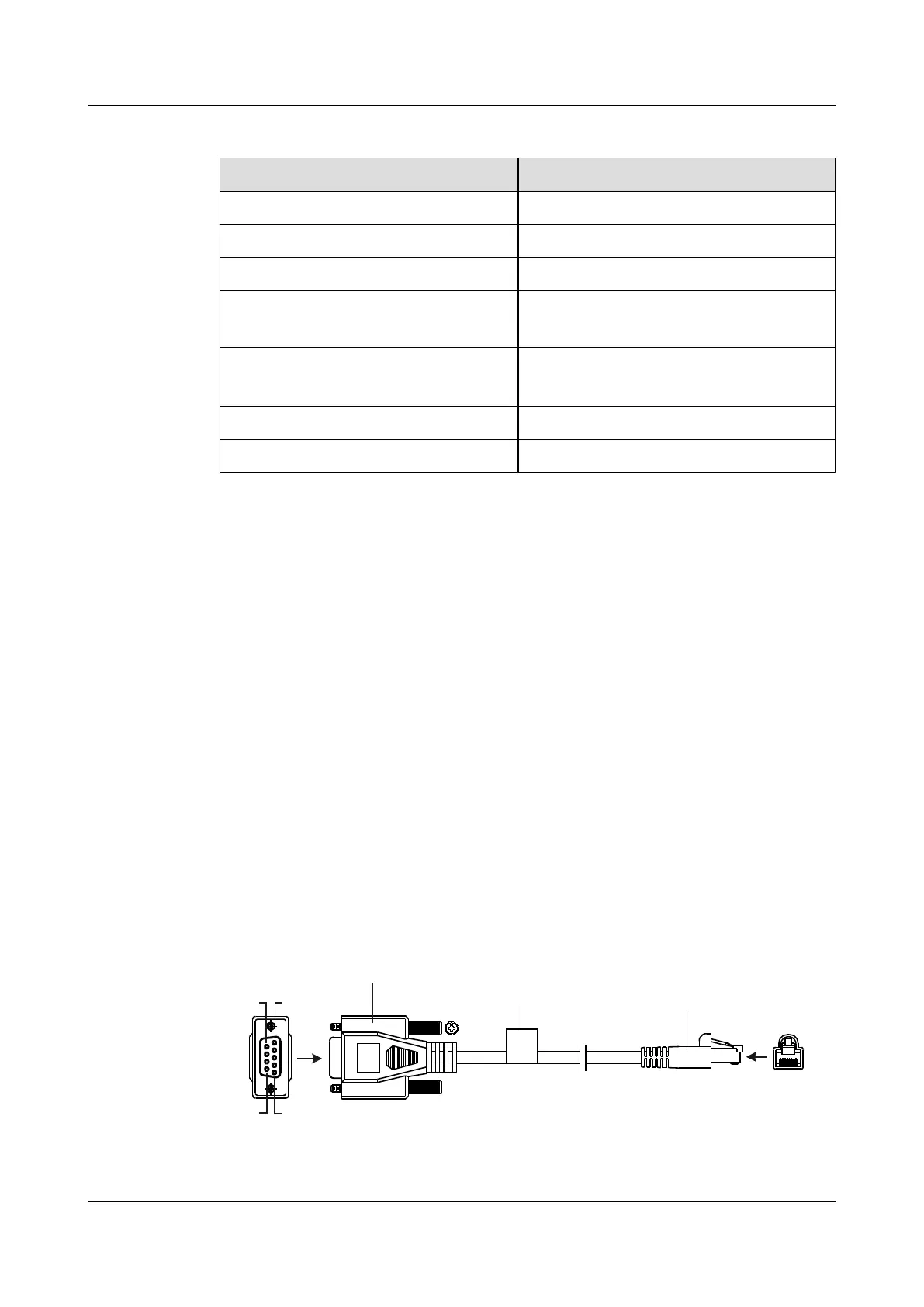

Figure 6-5 shows the structure of the console cable.
Figure 6-5 Structure of the console cable
X1
Pos.1
Pos.9
Pos.6
Pos.5
X2
1 8
Network port connector
(8-pin, RJ-45)
D-type connector
(9-pin, male)
Label
Huawei AR1200&2200&3200 Series Enterprise Routers
Hardware Description 6 Cables
Issue 03 (2012-04-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
135
