Huawei TaiShan 200 2280 User Manual

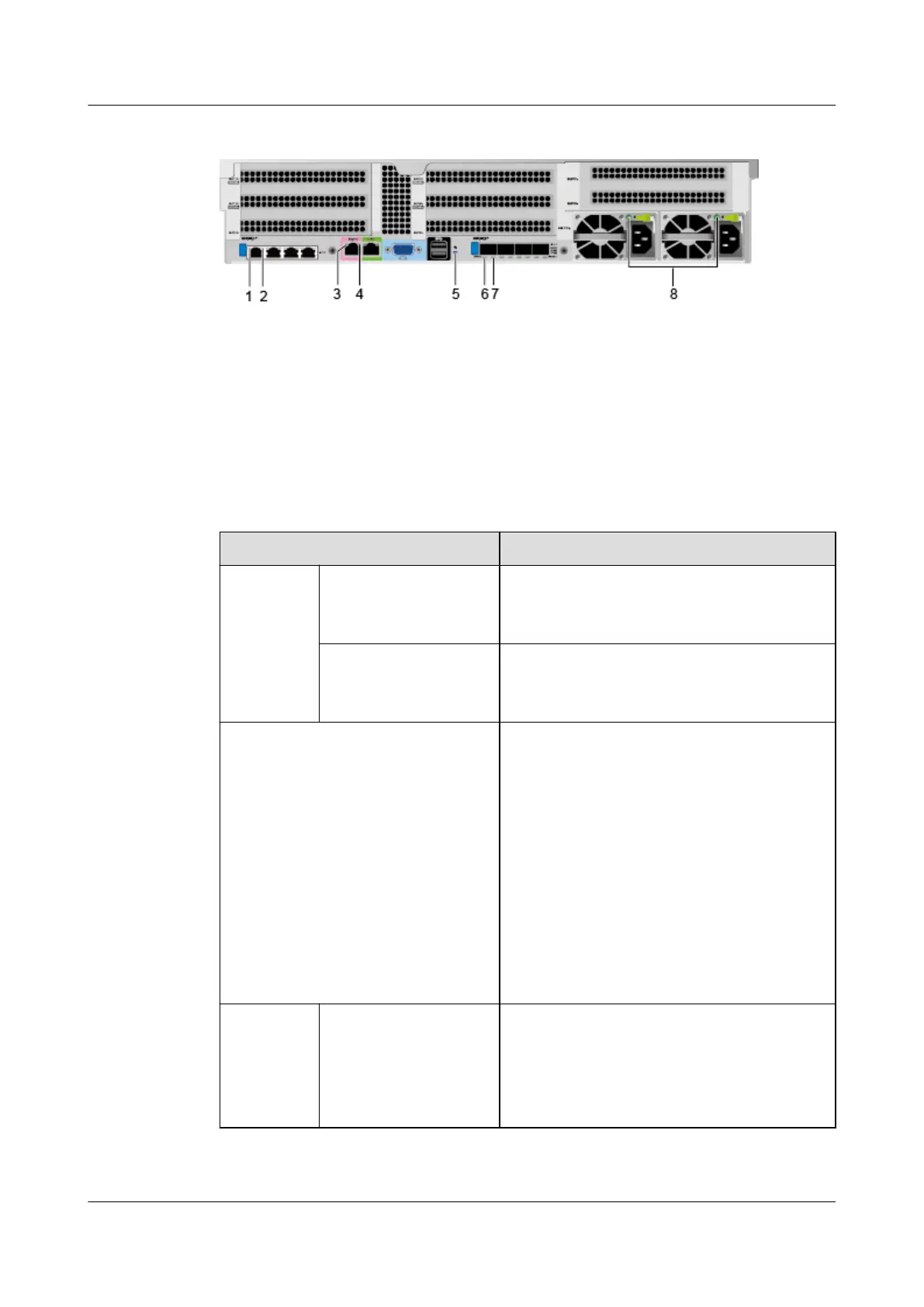

Figure 2-11 Rear panel indicators
1 GE electrical port data transmission status
indicator
2 GE electrical port connection status
indicator
3 Management network port data transmission
status indicator
4 Management network port connection
status indicator
5 UID indicator 6 Optical port transmission rate indicator
7 Optical port connection status indicator/data
transmission status indicator
8 PSU indicator
Table 2-5 Indicators on the rear panel
Indicator State Description
GE
electrical
port/
Managem
ent
network
port
Data transmission
status indicator
● Blinking yellow: Data is being
transmitted.
● O: No data is being transmitted.
Connection status
indicator
● Steady green: The network port is
properly connected.
● O: The network port is not connected.
UID indicator The UID indicator helps identify and locate
a device.
● O: The device is not being located.
● Blinking blue (blinking 255 seconds):
The device has been located and is
dierentiated from other devices that
have also been located.
● Steady blue: The device is being
located.
NOTE
You can turn on, turn
o, or blink the UID
indicator by pressing the UID button or
remotely running a command on the iBMC CLI.
25 GE
optical
port
Transmission rate
indicator
● Steady green: The data transmission
rate is 25 Gbit/s.
● Steady yellow: The data transmission
rate is 10 Gbit/s.
● O: The network port is not connected.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 2 Components
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 13
