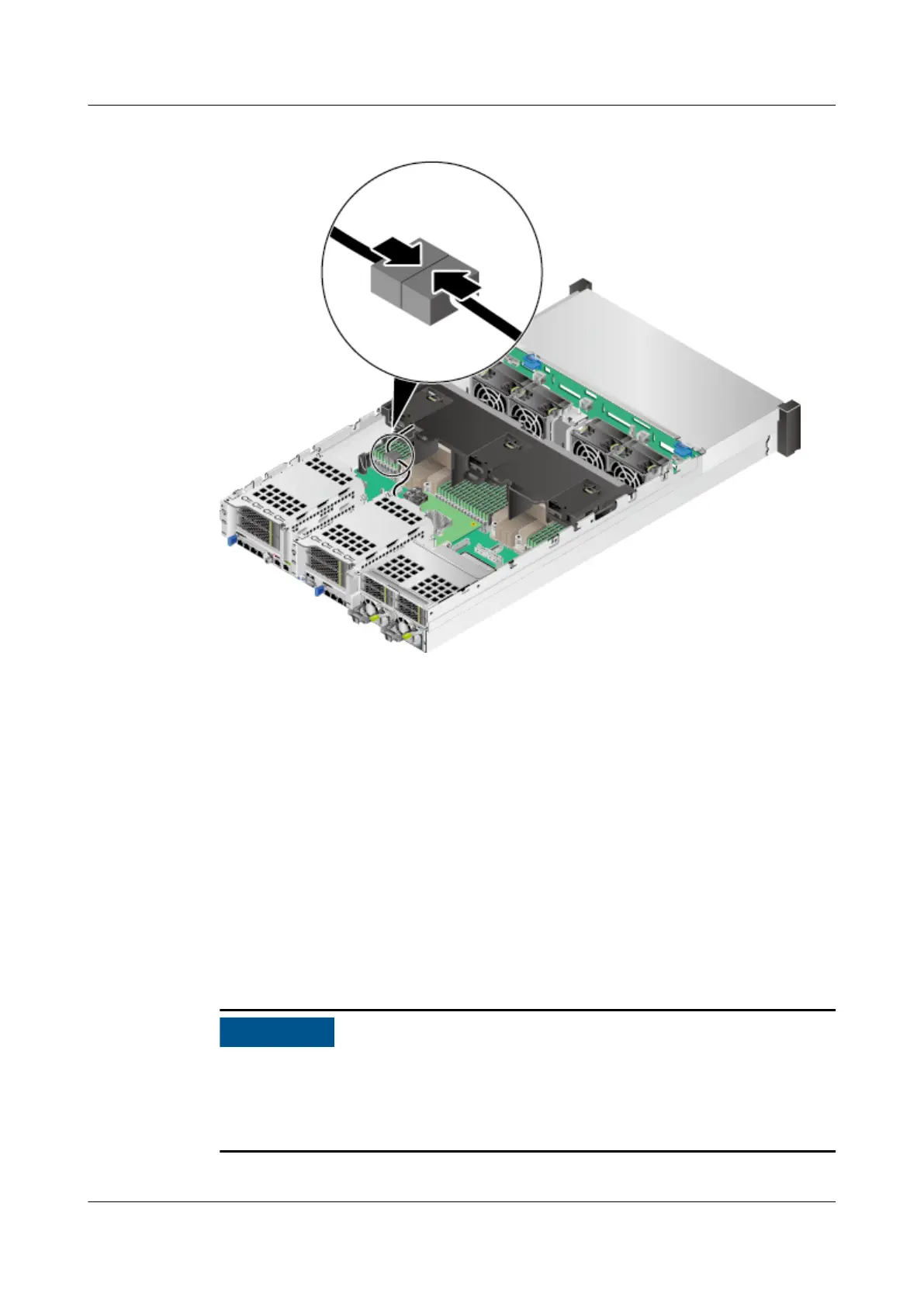

Figure 5-38 Connecting a supercapacitor
Step 10 (Optional) If a server is congured with a full-height full-length riser module,
install the full-height full-length riser module in I/O module 1 or 2. For details, see
5.11 Riser Module.
Step 11 Install the chassis cover. For details, see 5.8 Chassis Cover.
Step 12 Install the server. For details, see 5.4.3 Installing the Server on Guide Rails.
Step 13 Connect the power cables. For details, see 5.7 PSU.
Step 14 Power on the server. For details, see 5.4.1 Powering On the Server.
----End
5.10 Fan Module
This section uses the server with Kunpeng 920 7260, 5250, or 5230 processors as
an example to describe the internal structure of a server. The procedures for
removing and installing fan modules are the same for the server
congured with
Kunpeng 920 5220 or 3210 processors.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 106
