Removing a Fan Module
Step 1 Wear an ESD wrist strap. For details, see 5.2 ESD Protection.
● You can skip steps Step 2 to Step 4 when you can open the chassis cover without
removing the server. The scenarios include but are not limited to: (1) the server is
installed on adjustable guide rails and (2) the server is not installed in a cabinet.
● To maintain a proper cooling eect during system operation, remove only one fan at a
time.
Step 2 Power
o the server. For details, see 5.4.2 Powering O the Server.
Step 3 Remove the power cables. For details, see 5.7 PSU.
Step 4 Remove the server. For details, see 5.4.4 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 5.8 Chassis Cover.
Step 6 Press the latches on both sides of the fan module to unlock it. See (1) Figure
5-39.

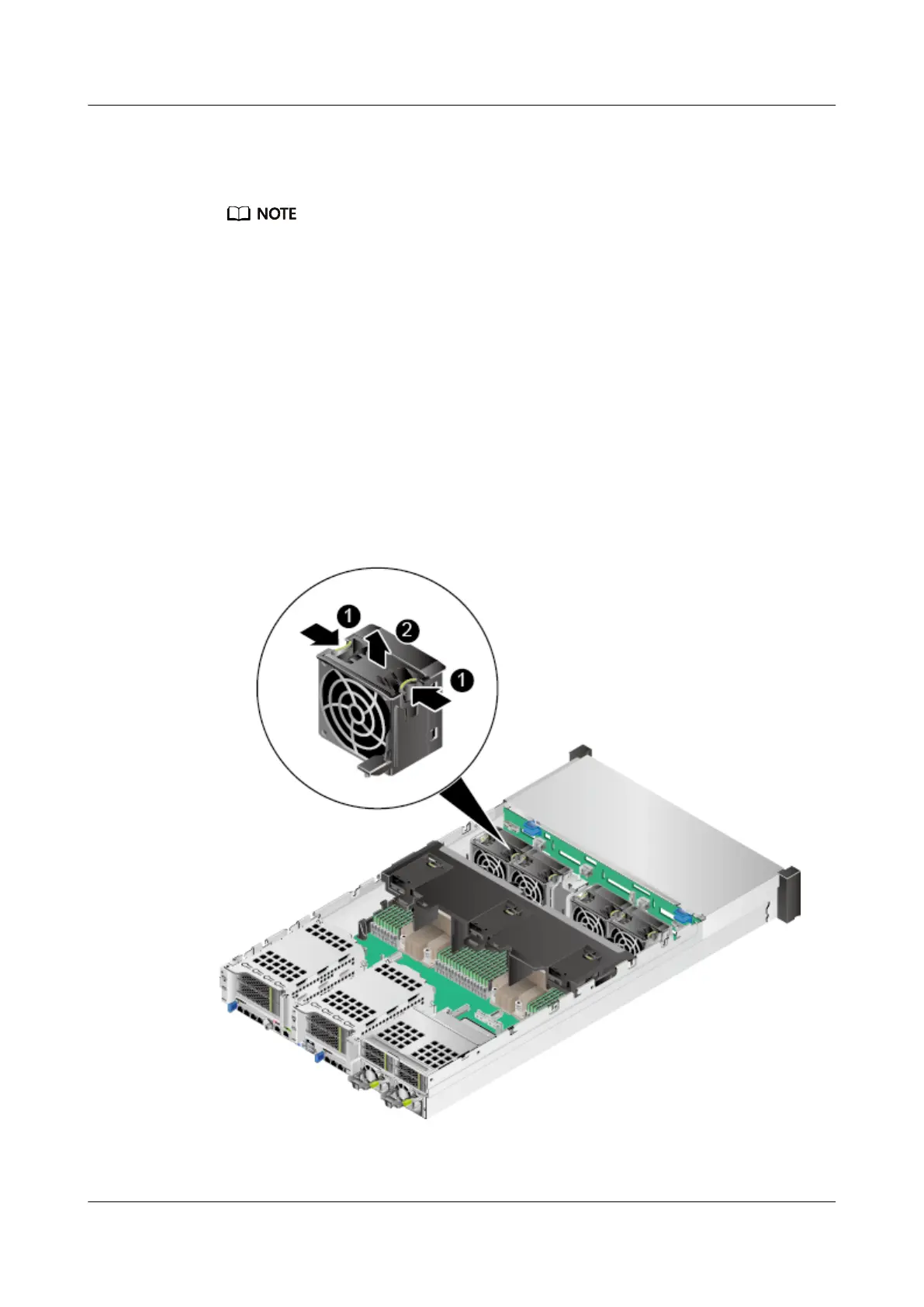

Figure 5-39 Removing a fan module
Step 7 Lift the fan module slowly until it is completely out of the slot. See (2) in Figure
5-39.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 107
