Installing the Air Duct
Step 1 Wear an ESD wrist strap. For details, see 5.2 ESD Protection.
Step 2 Power o the server. For details, see 5.4.2 Powering O the Server.
Step 3 Remove the power cables. For details, see 5.7 PSU.
Step 4 Remove the server. For details, see 5.4.4 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 5.8 Chassis Cover.
Step 6 (Optional) If a full-height full-length riser module is installed in I/O module 1 or
2, remove it. For details, see 5.11 Riser Module.
Step 7 Take a spare air duct out of its ESD bag.
Step 8 Align the positioning pins on the air duct with the
xing holes on the chassis
according to the instructions on the air duct. Vertically place the air duct
downwards. See Figure 5-37.

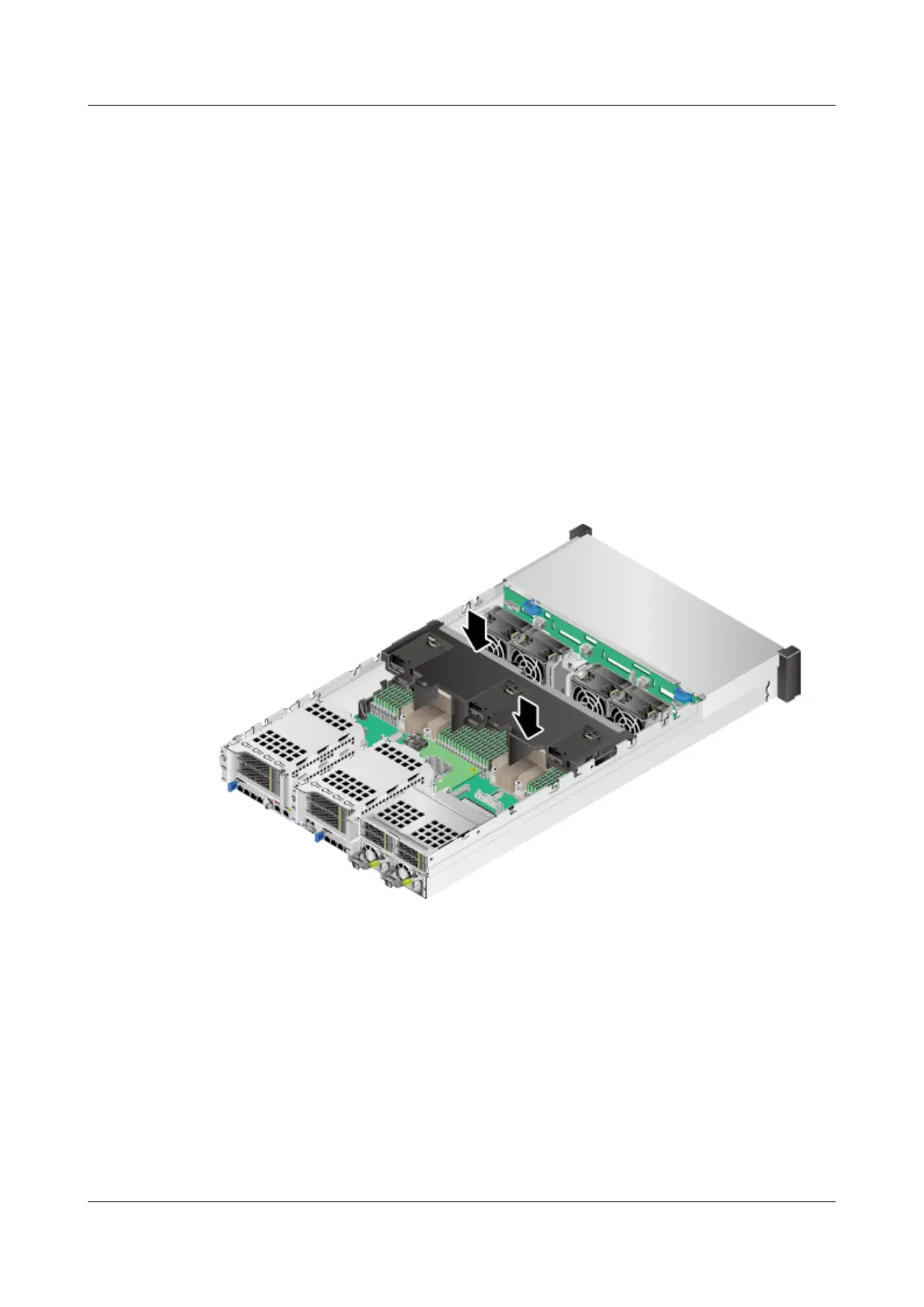

Figure 5-37 Installing the air duct
Step 9 If a supercapacitor is required, connect the cable between the supercapacitor and
RAID controller card. See Figure 5-38.
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 5 Removal and Installation
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 105
