Front Drive Backplane Power and Low-speed Signal Cabling

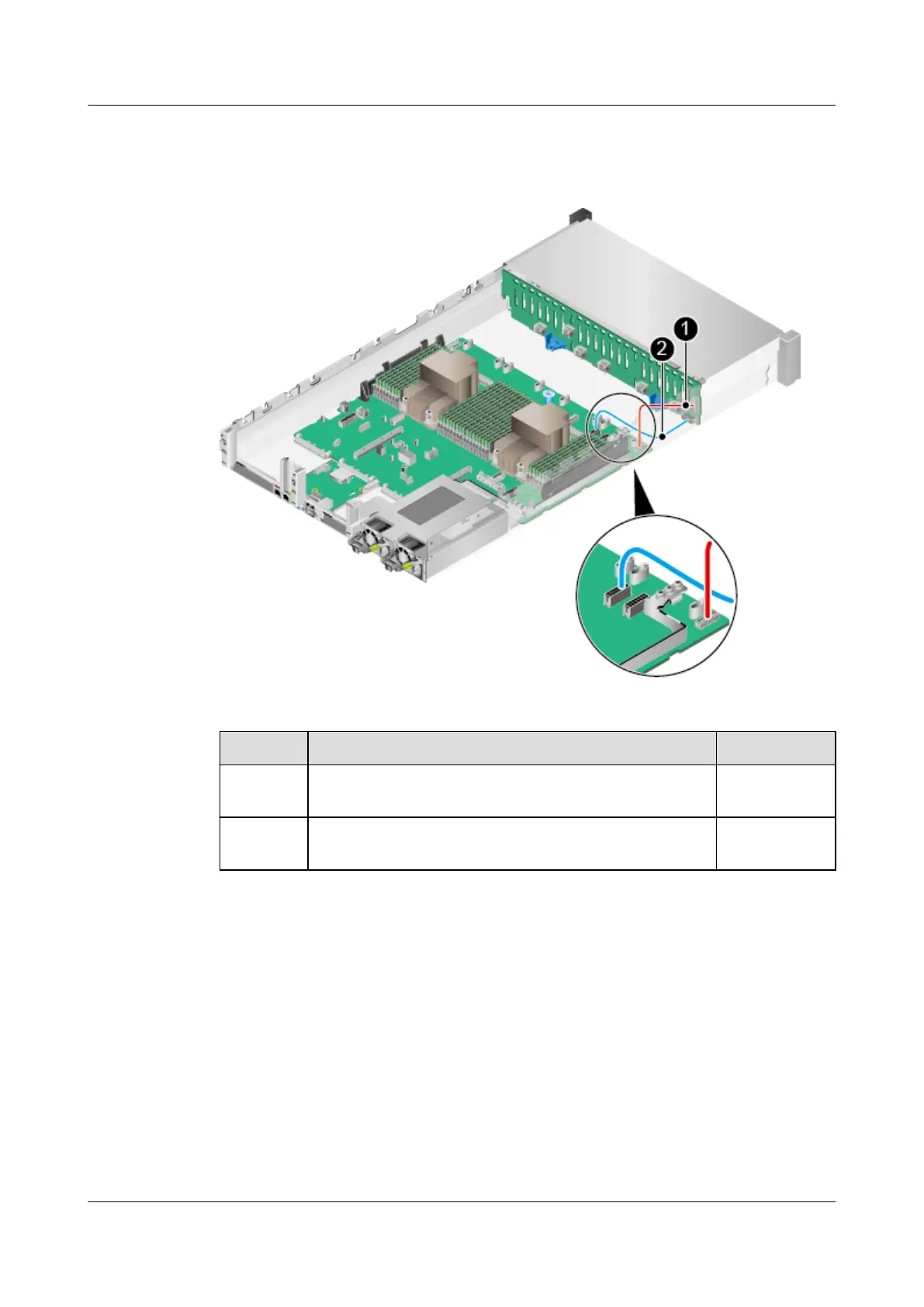

Figure 3-19 Front drive backplane power and low-speed signal cabling
Table 3-19 Front drive backplane power and low-speed signal cabling
No.
Connectors and Cable Part No.
1 Low-speed signal cable for connecting the
mainboard (J93) to the front drive backplane (J1)
04080588
2 Power cable for connecting the mainboard (J5) to
the front drive backplane (J24)
04152145-00
4
TaiShan 200 Server
Maintenance and Service Guide (Model 2280) 3 Internal Cabling
Issue 04 (2020-01-16) Copyright © Huawei Technologies Co., Ltd. 59
