ELECTRICAL SYSTEM 15
105

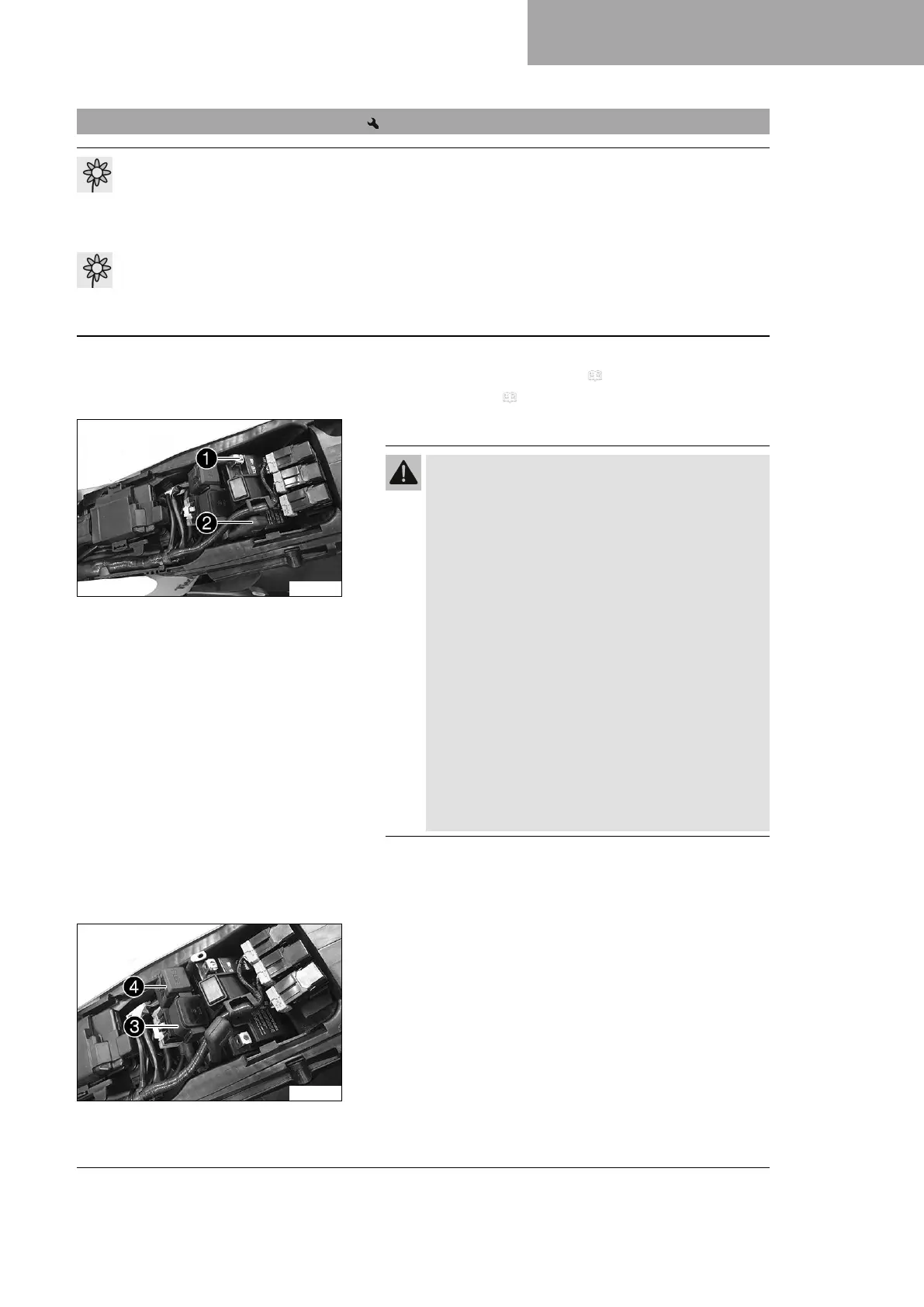

15.1 Removing the 12-V battery
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance
with the applicable regulations.
Preparatory work
– Remove the air filter box cover. ( p. 68)
– Remove the seat. ( p. 66)
S03577-10
Main work
Warning
Risk of injury 12 V batteries contain harmful sub-
stances.
– Keep 12 V batteries out of the reach of children.
– Keep sparks and open flames away from 12 V
batteries.
– Only charge 12 V batteries in well-ventilated
rooms.
– Maintain a minimum clearance from inflammable
materials when charging 12 V batteries.
Minimum clearance 1 m (3 ft)
– Do not charge deeply discharged 12 V batteries if
the charge is already below the minimum voltage.
Minimum voltage
before the start of the
charge
9 V
– Dispose of 12 V batteries with less than the mini-
mum voltage correctly.
–
Disconnect negative cable
1
from the 12-V battery.
–
Pull back positive terminal cover
2
and disconnect the pos-
itive cable from the 12-V battery.
S03578-10
–
Remove starter relay
3
and fuse box
4
from the holding
bracket and hang to the side.
To Next Page
