SERVICE WORK ON THE CHASSIS 12
55

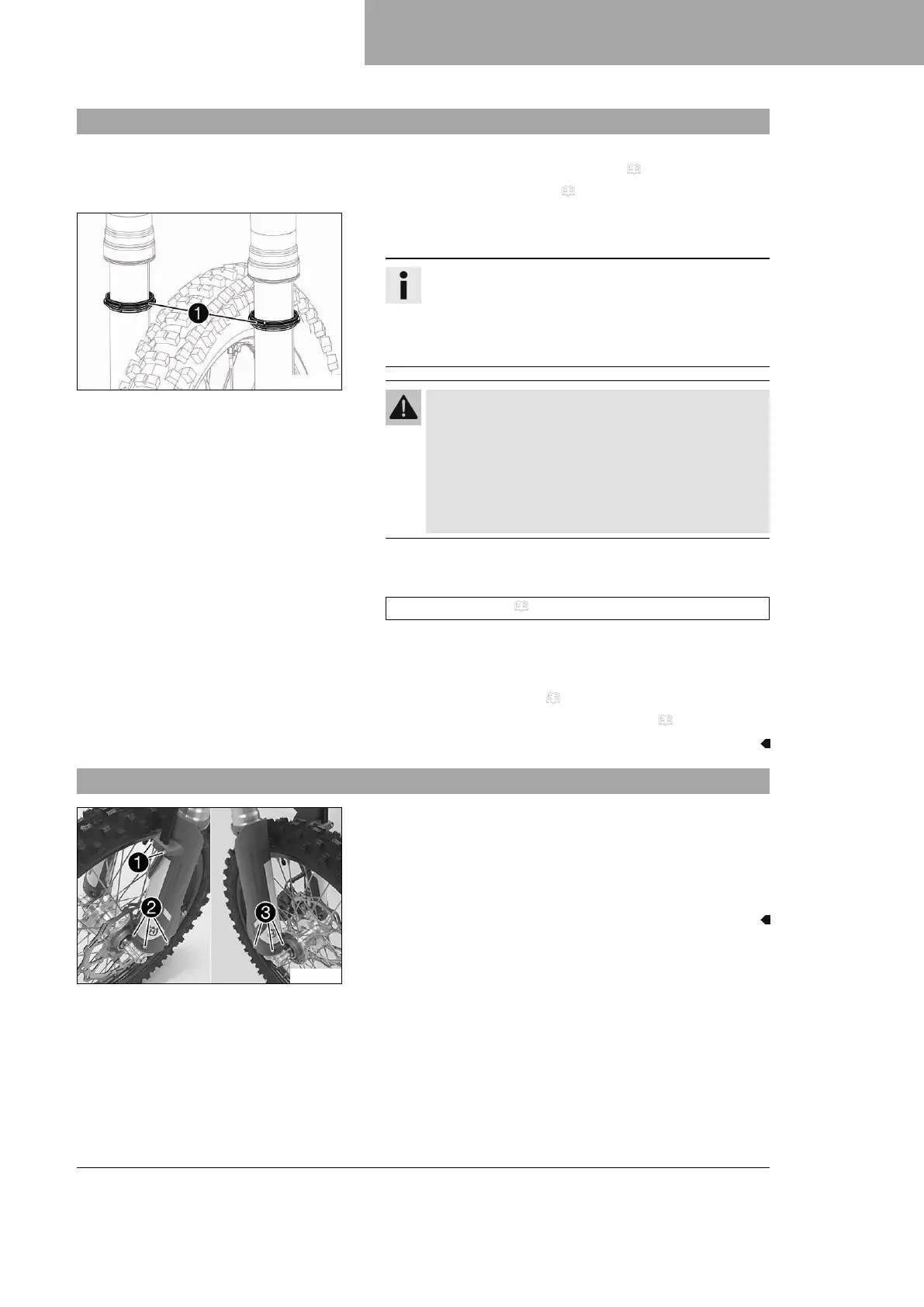

12.4 Cleaning the dust boots of the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 54)
– Remove the fork protector. ( p. 55)
H03152-10
Main work
–
Push dust boots
1
of both fork legs downward.
Info
The dust boots remove dust and coarse dirt parti-
cles from the inside fork tubes. Over time, dirt can
accumulate behind the dust boots. If this dirt is not
removed, the oil seals behind can start to leak.
Warning
Danger of accidents Oil or grease on the brake
discs reduces the braking effect.
– Always keep the brake discs free of oil and
grease.
– Clean the brake discs with brake cleaner when
necessary.
– Clean and oil the dust boots and inner fork tubes of both fork
legs.
Universal oil spray ( p. 151)
– Press the dust boots back into their installation position.
– Remove excess oil.
Finishing work
– Install the fork protector. ( p. 56)
– Remove the motorcycle from the lift stand. ( p. 54)
12.5 Removing the fork protector
F03463-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
on the left fork leg and take off the left
fork protector.
–
Remove screws
3
on the right fork leg and take off the right
fork protector.
