TUNING THE CHASSIS 11
47

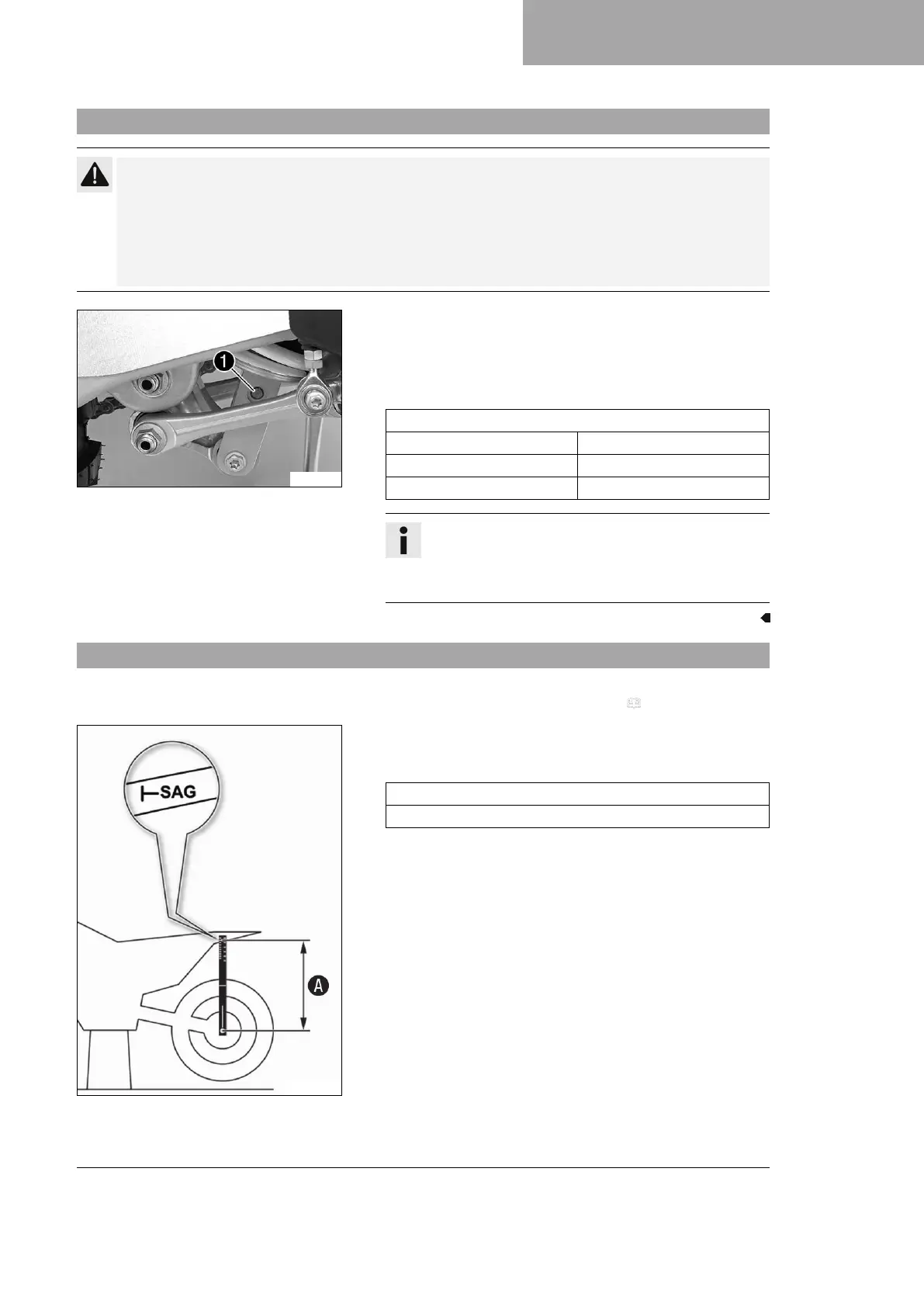

11.5 Adjusting the rebound damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incor-
rectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized Husqvarna Motorcycles workshop will be
glad to help.)
F02303-10
–
Turn adjusting screw
1
clockwise up to the last perceptible
click.
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Rebound damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn
counterclockwise to reduce damping when the shock
absorber rebounds.
11.6 Measuring the dimension of the rear wheel unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 54)
F03462-10
Main work
– Position the sag gage in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090500)
Pin, sag scale (00029990010)
–
Note the value as dimension
A
.
