SERVICE WORK ON THE CHASSIS 12
63

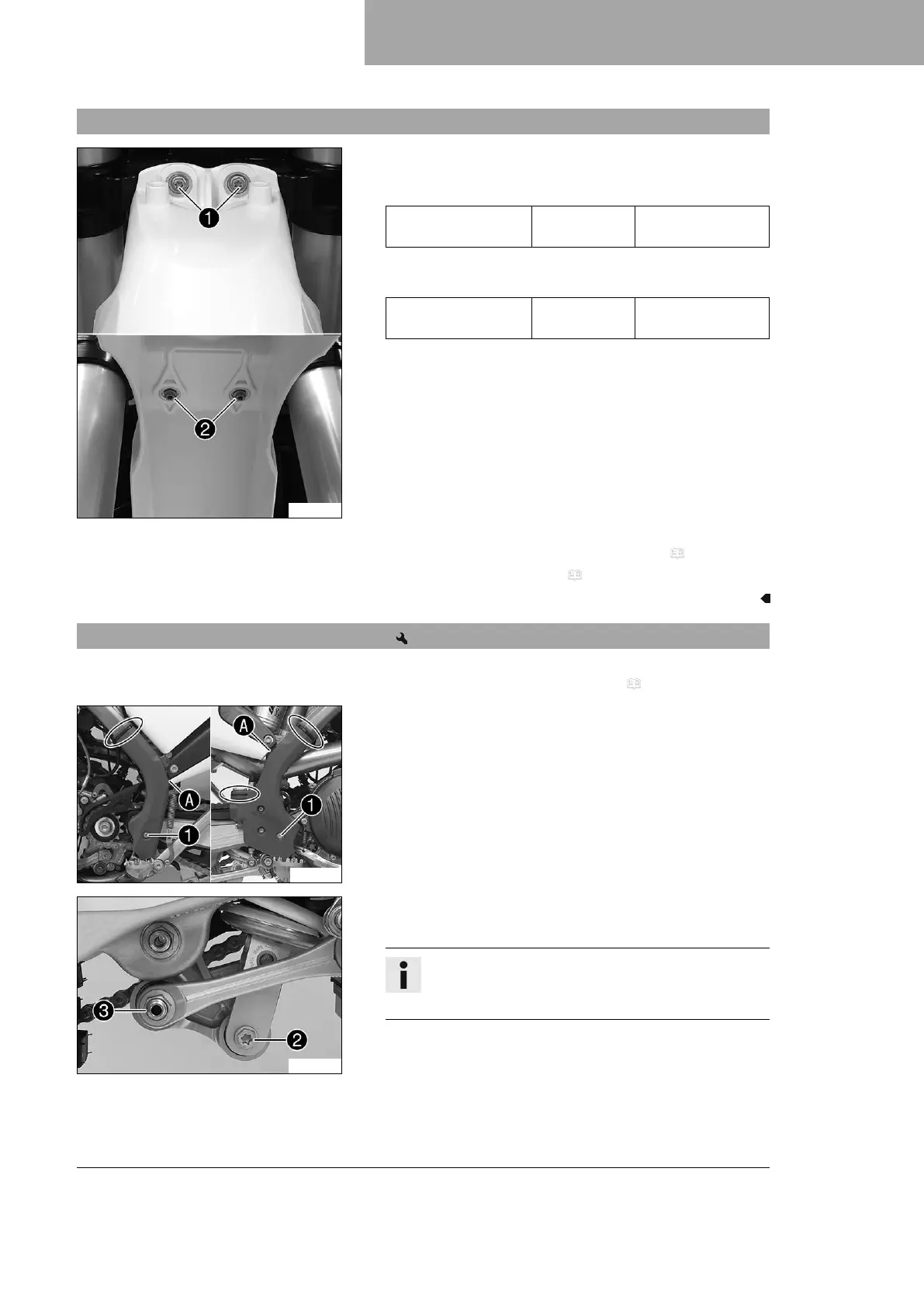

12.15 Installing front fender
H03691-10
Main work
–
Position front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 112)
– Check the headlight setting. ( p. 114)
12.16 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 54)
F03545-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Detach the frame protector in area
A
and take it off.
H03693-10
–
Remove screw
2
.
–
Remove fitting
3
.
Info
Raise the link fork slightly to be able to remove the
screws more easily.
