ELECTRICAL SYSTEM 15
115
» If the boundary between light and dark does not meet
specifications:
– Adjust the headlight range. ( p. 115)

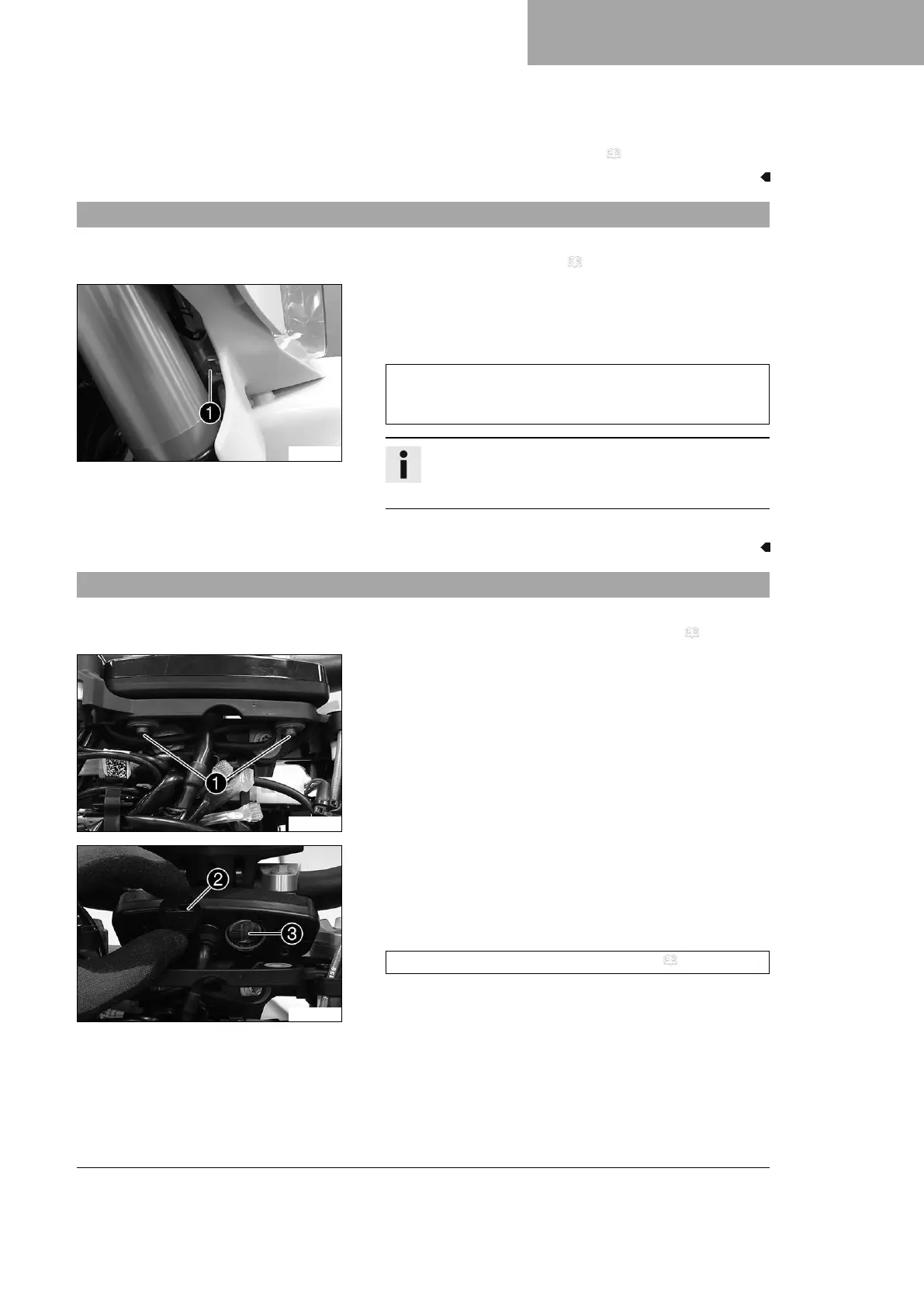

15.11 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 114)
H03755-10
Main work
–
Loosen screw
1
.
– Adjust the headlight range by pivoting the headlight.
Guideline
The boundary between light and dark must be exactly on
the lower mark for a motorcycle with rider (instructions on
how to apply the mark: Checking the headlight setting).
Info
A change in weight on the vehicle may require a cor-
rection of the headlight range.
–
Tighten screw
1
.
15.12 Changing the combination instrument battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 111)
H03756-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
H03757-10
–
Using a coin, turn protection cap
2
all the way counter-
clockwise and take it off.
–
Remove combination instrument battery
3
.
– Insert the combination instrument battery with the label fac-
ing outward.
Combination instrument battery (CR 2032) ( p. 144)
– Check the O-ring of the protection cap for correct seating.
