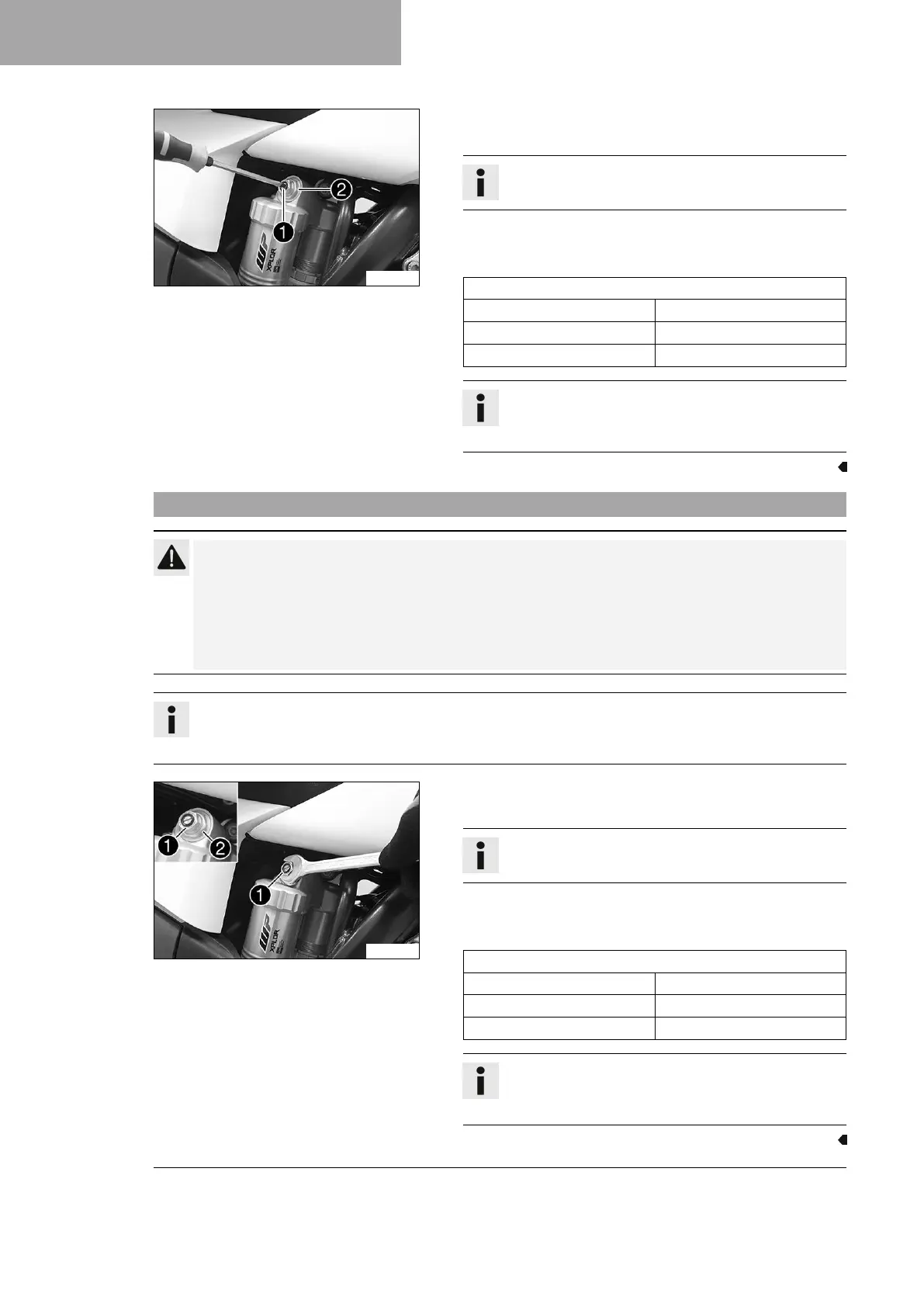

11 TUNING THE CHASSIS
46
S03550-10
–
Turn adjusting screw
1
clockwise with a screwdriver as far
as the last perceptible click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Lowspeed compression damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
11.4 Adjusting the high-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incor-
rectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized Husqvarna Motorcycles workshop will be
glad to help.)
Info
The effect of the high speed compression adjuster can be seen in the fast compression of the shock
absorber.
S03551-10
–
Using an open end wrench, turn adjusting screw
1
clock-
wise all the way.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of turns corresponding
to the shock absorber type.
Guideline
Highspeed compression damping
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
