12 SERVICE WORK ON THE CHASSIS
60
S03575-10
–

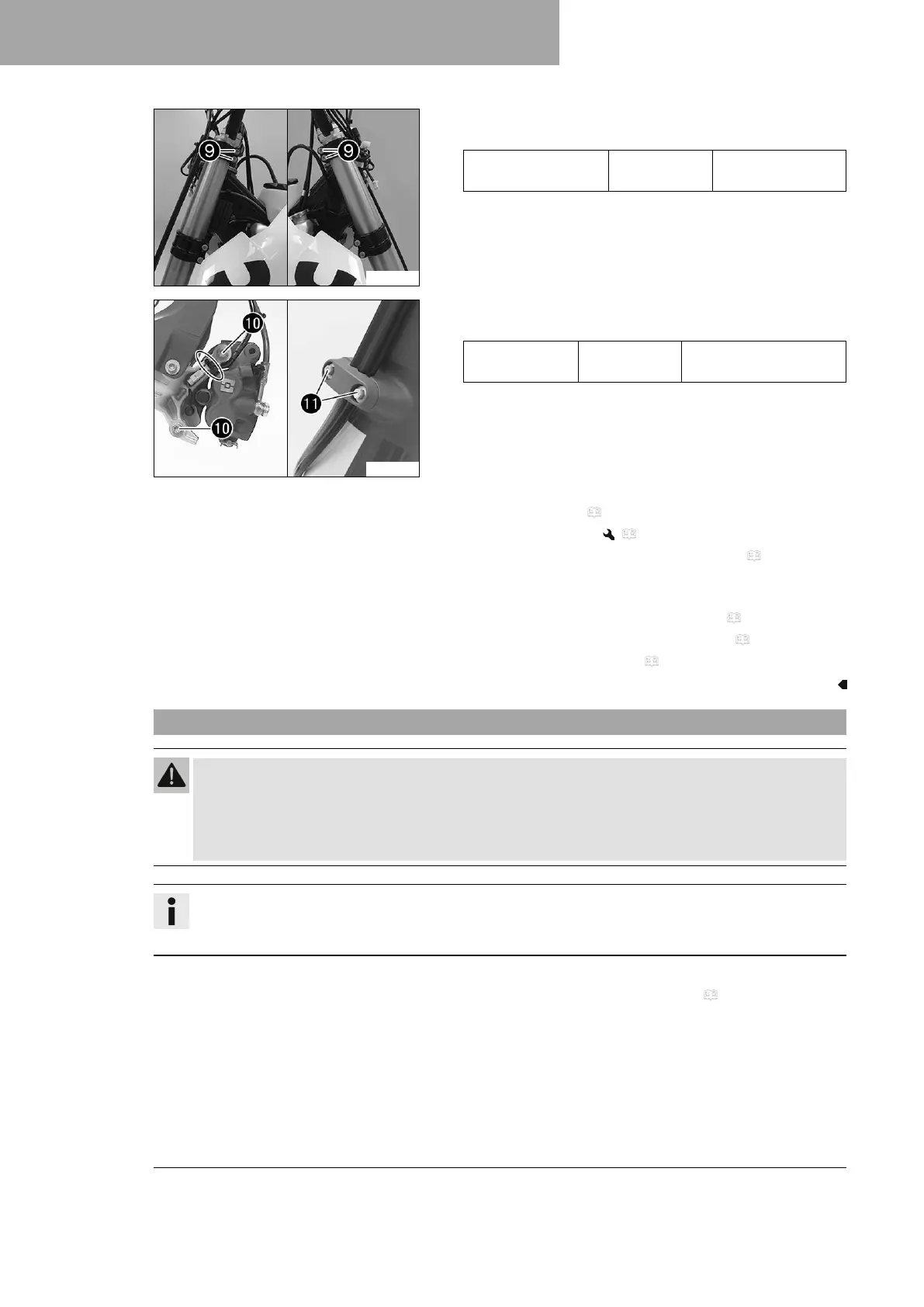

Tighten screws
9
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
S04826-11
–
Position the brake caliper, and mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bl
.
Finishing work
– Install front fender. ( p. 63)
– Install the front wheel. ( p. 100)
– Install the headlight mask with the headlight. ( p. 112)
– Check that the wiring harness, throttle cables, and brake and
clutch lines can move freely and are routed correctly.
– Check the steering head bearing for play. ( p. 60)
– Remove the motorcycle from the lift stand. ( p. 54)
– Check the headlight setting. ( p. 114)
12.11 Checking the steering head bearing play
Warning
Danger of accidents Incorrect steering head bearing play impairs the handling characteristic and
damages components.
– Correct incorrect steering head bearing play immediately. (Your authorized Husqvarna Motorcycles
workshop will be glad to help.)
Info
If the vehicle is operated for a lengthy period with play in the steering head bearing, the bearings and the
bearing seats in the frame can become damaged over time.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 54)
