13 BRAKE SYSTEM
96
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance
with the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid corrodes paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Check the rear brake linings. ( p. 96)

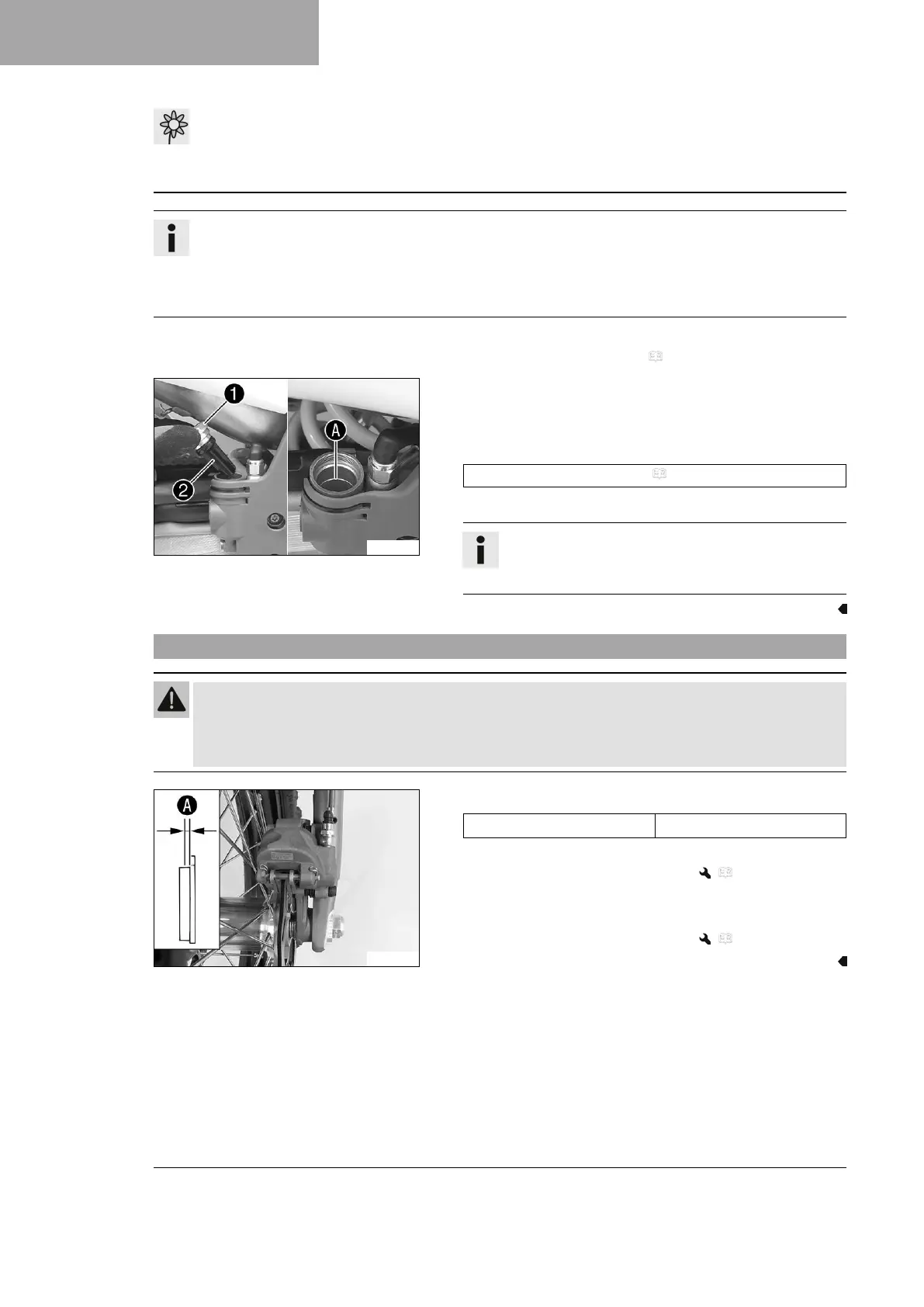

F03485-10
Main work
– Position the vehicle vertically.
–
Remove screw cap
1
with membrane
2
.
–
Add brake fluid up to the marking
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 148)
– Mount and tighten the screw cap with the membrane.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
13.11 Checking the rear brake linings
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized Husqvarna Motorcy-
cles workshop will be glad to help.)
F03486-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 97)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. ( p. 97)
