DO-IT-YOURSELF MAINTENANCE
25
CHANGING THE CLIMATE
CONTROL AIR FILTER
G140D01S-GAT
Checking the Compressor Drive
Belt
When the air conditioning is being
used regularly, the compressor drive
belt tension should be checked at
least once a month.

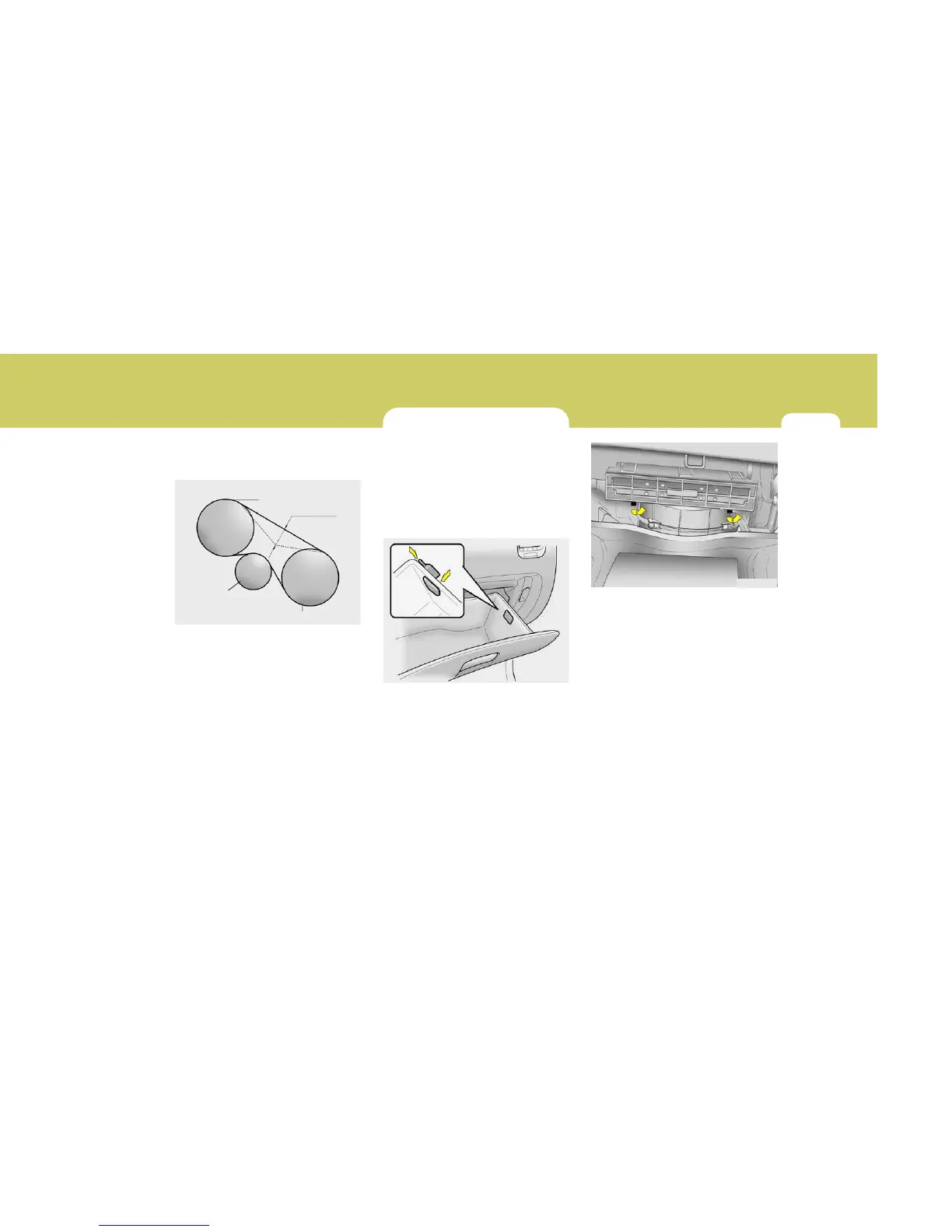

To check the drive belt tension, press
down on the belt halfway between the
engine crankshaft and compressor
pulleys. Pressing with your finger, you
should not be able to deflect this belt
anymore than 8.0 mm. If you have
the instruments to check it with a
force of 98N (22 lb.), the deflection
should be approx. 8.0 mm (0.315 in.).
If the belt is too loose, have it ad-
justed by your Hyundai dealer.
CRANK PULLEY
G140D01A
A/C
TENSION PULLEY
8mm
(0.315 in.)
B140E02FC-AAT
(In Front of Blower Unit)
The climate control air filter is located
in front of the blower unit behind the
glove box.
It helps to decrease pollutants from
entering the car.
1. Open the glove box and remove the
adjusting pins on both sides of the
glove box.
2. Remove the filter cover by pulling
upward the hooks of the filter cover.
HLC2096
KQNA020A
