6
DO-IT-YOURSELF MAINTENANCE
27
G170A01A-GAT

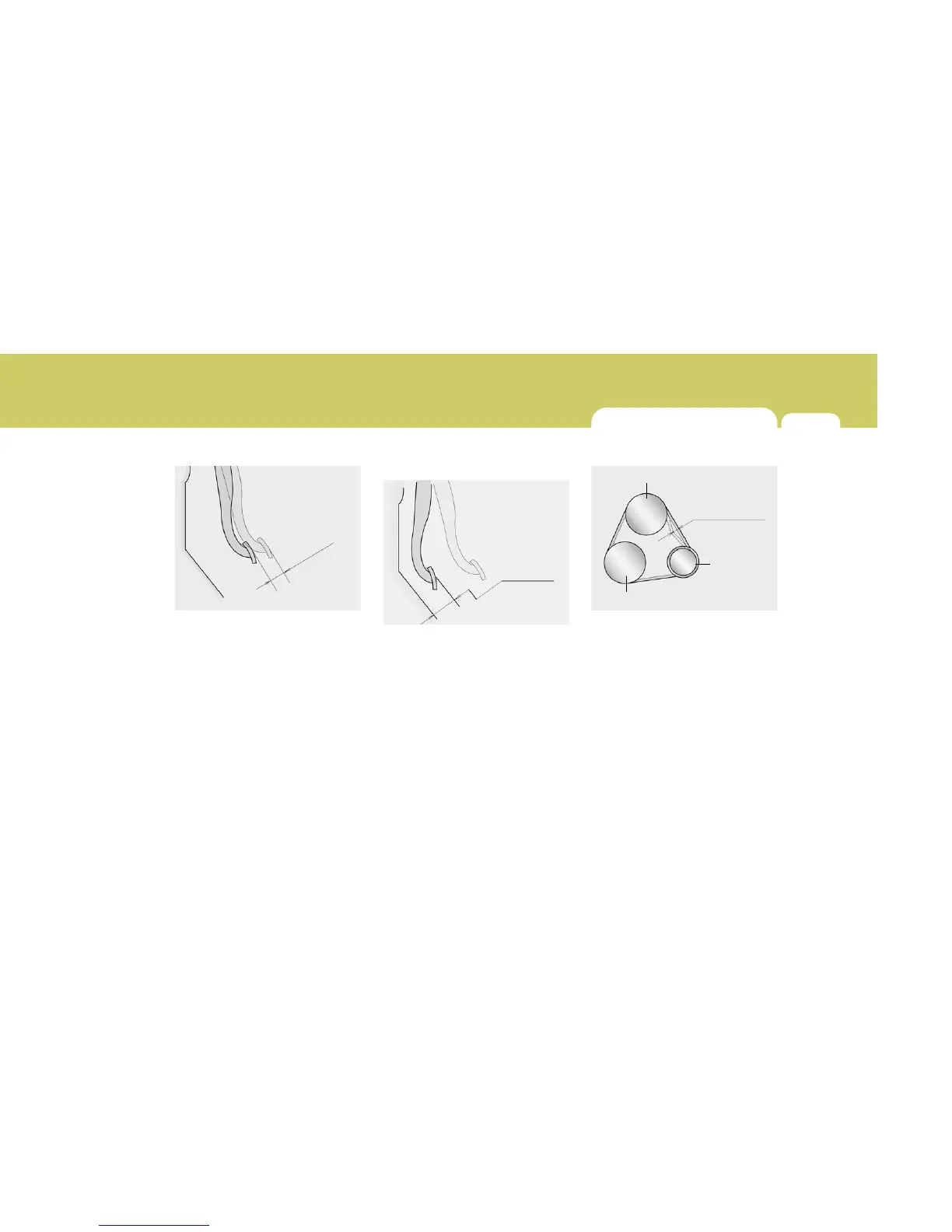

Brake pedal
HXGS508
3 ~ 8 mm
(0.12 ~ 0.31 in.)
With the engine off, press down on
the brake pedal several times to re-
duce the vacuum in the brake booster.
Then, using your hand, press down
slowly on the brake pedal until you
feel a change in resistance. This is
the brake pedal freeplay. The freeplay
should be within the limits specified in
the illustration. If it is not, have it
inspected by your Hyundai dealer and
adjusted or repaired if necessary.
Water Pump Pulley
Alternator
Pulley
Crankshaft Pulley
5~6 mm
(0.2~0.24 in.)
HTB186
G190A01A-GAT
Gasoline Engine
Drive belts should be checked peri-
odically for proper tension and ad-
justed if necessary. At the same time,
belts should be examined for cracks,
wear, fraying or other evidence of
deterioration and replaced if neces-
sary.
Belt routing should also be checked
to be sure there is no interference
between the belts and other parts of
the engine. After a belt is replaced,
the new belt should be adjusted again
after two or three weeks to eliminate
slack resulting from initial stretching
after use.
G180A01A-GAT
CHECKING BRAKE PEDAL
CLEARANCE
G180A01L
45.1 mm
(1.78 in.)
You need a helper to check the brake
pedal clearance. With the engine run-
ning, have your helper press down on
the brake pedal several times and
then hold it down with a force of about
490N (50 kg, 110 lbs). The brake
pedal clearance is the distance from
the top surface of the brake pedal to
the asphalt sheeting under the floor
mat. If the brake pedal clearance is
not within the limits specified in the
illustration, have it inspected by your
Hyundai dealer and adjusted or re-
paired if necessary.
CHECKING DRIVE BELTS
