6
DO-IT-YOURSELF MAINTENANCE
28
CHECKING AND REPLACING
FUSES
G200A01A-AAT

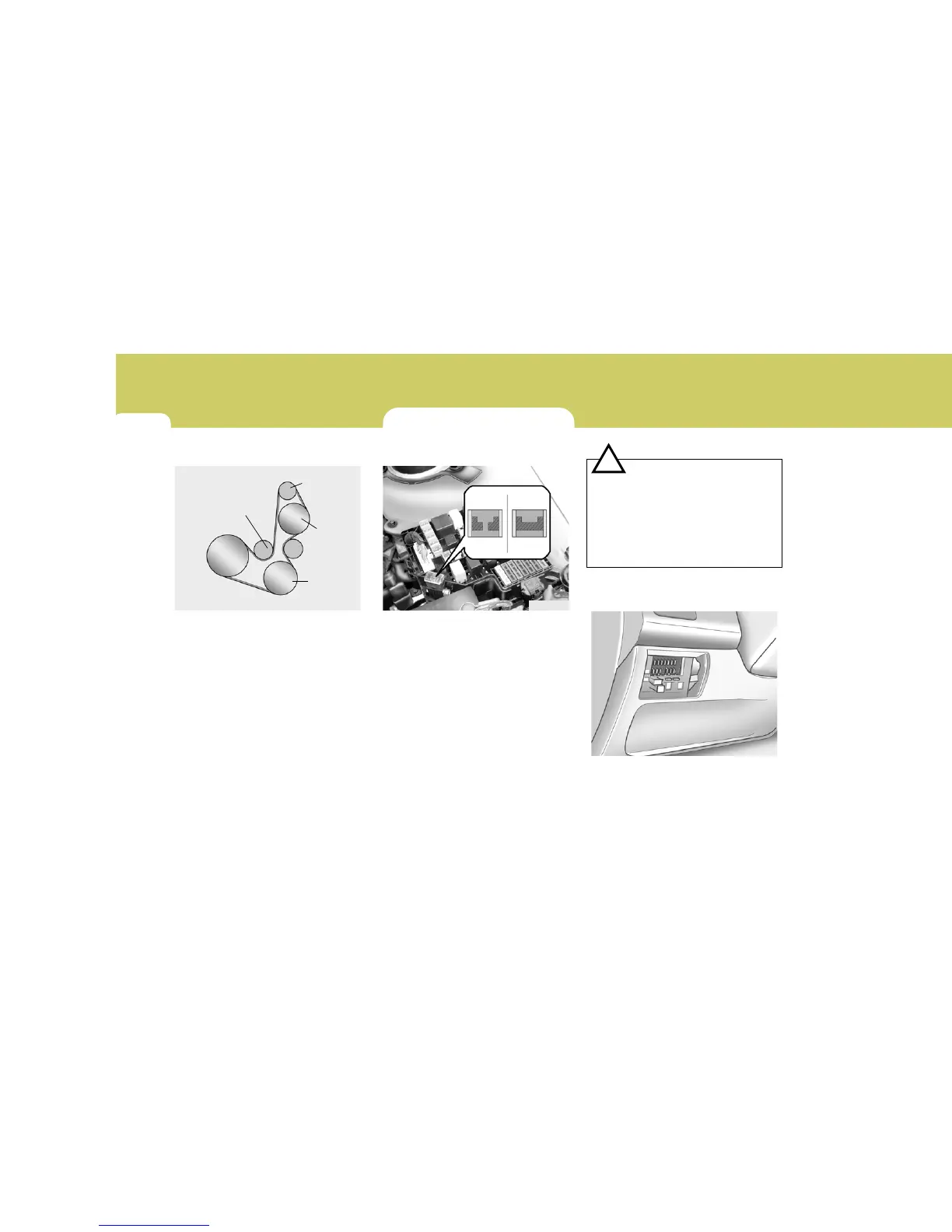

Replacing a Fusible Link
A fusible link will melt if the electrical
circuits from the battery are ever over-
loaded, thus preventing damage to
the entire wiring harness. (This could
be caused by a short in the system
drawing too much current.) If this
ever happens, have a Hyundai dealer
determine the cause, repair the sys-
tem and replace the fusible link. The
fusible links are located in a fuse box
for easy inspection.
GoodBad
G200B01E-AAT
Replacing Accessory Fuses
HFC4010
CAUTION:
When replacing a fusible link, never
use anything but a new fusible
link with the same or lower amper-
age rating. Never use a piece of
wire or a higher-rated fusible link.
This could result in serious dam-
age and create a fire hazard.
!
G200A01FC
G190B01A
Power
steering
pump
A/C comp.
Auto tentioner fully
Alternator
G190B01TB-GAT
Diesel Engine
At the scheduled maintenance inspec-
tion, belts should be examined for
cracks, wear, fraying or other evi-
dence of deterioration and replaced if
necessary.
Belt routing should also be checked
to be sure there is no interference
between the belts and other parts of
the engine.
The fuse box for the lights and other
electrical accessories will be found in
the backside of the multi box located
on the instrument panel to the left
side of the driver.
