6
OWNER MAINTENANCE
25
SG140B1-E

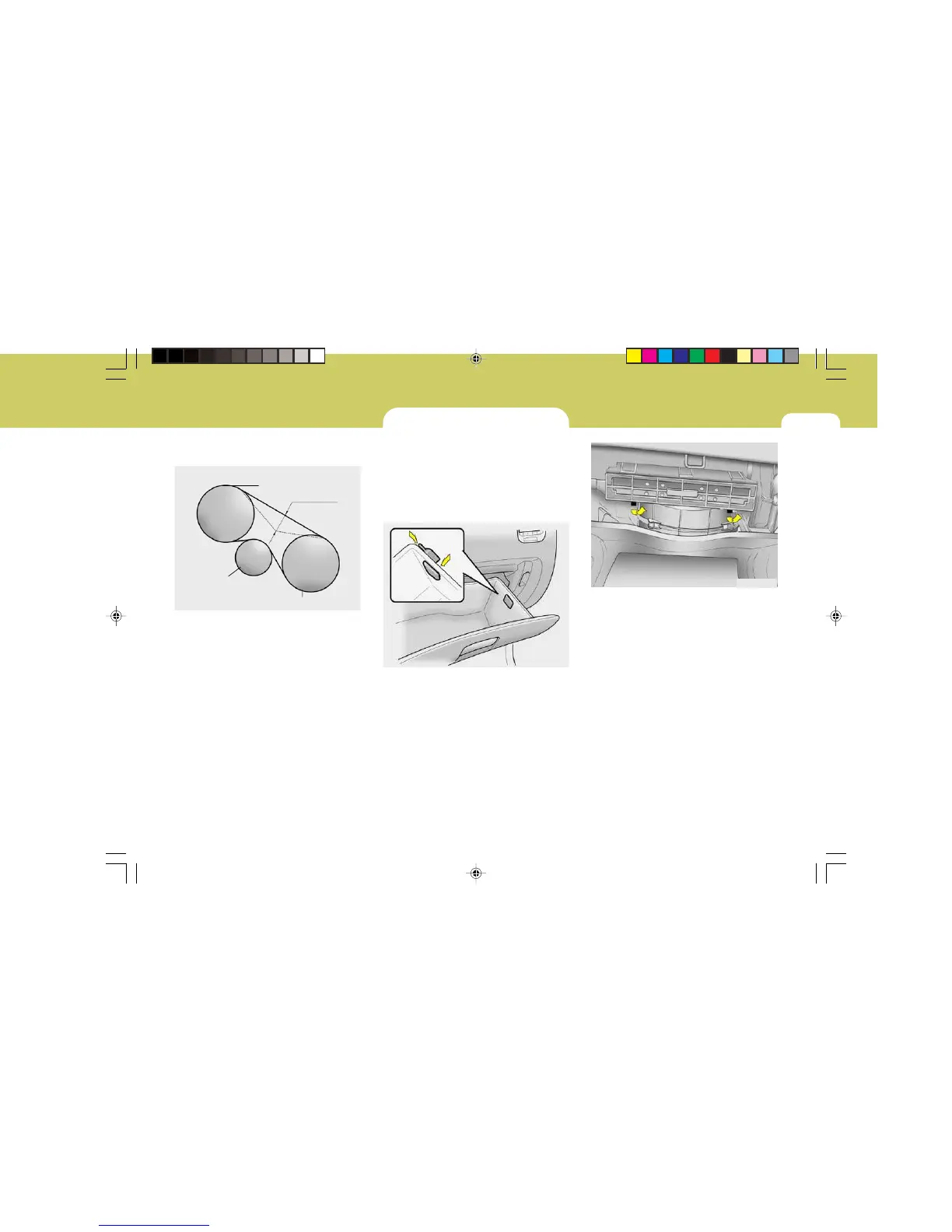

Compressor Drive Belt
The air conditioning compressor drive
belt should be checked to ensure free-
dom from damage or excessive wear
and correct tension. The belt tension
is correct when the belt deflects by
about 0.3 inches (8 mm) when a force
of 98 N is applied to the belt halfway
between the compressor and crank-
shaft pulleys.
Adjustment of the belt should be en-
trusted to a Hyundai authorised re-
pairer.
CRANK PULLEY
G140D01A
A/C
TENSION PULLEY
0.315 in.
(8mm)
CHANGING THE POLLEN
FILTER
B140E02FC-EAT
(In Front of Blower Unit)
The pollen filter is located in front of
the blower unit behind the glove box.
It helps to decrease pollutants from
entering the car.
1. Open the glove box and remove the
adjusting pins on both sides of the
glove box.
2. Remove the filter cover by pulling
upward the hooks of the filter cover.
HLC2096
KQNA020A
fcuk-6.p65 12/27/2006, 10:16 AM25
