6
DO-IT-YOURSELF MAINTENANCE
35
!
WARNING:
o Do not smoke or have any other
open flame near the vehicle while
bleeding the fuel system.
o Be sure to carefully wipe away
any water drained out in this
manner, because the fuel mixed
in the water might be ignited
and result in a fire.

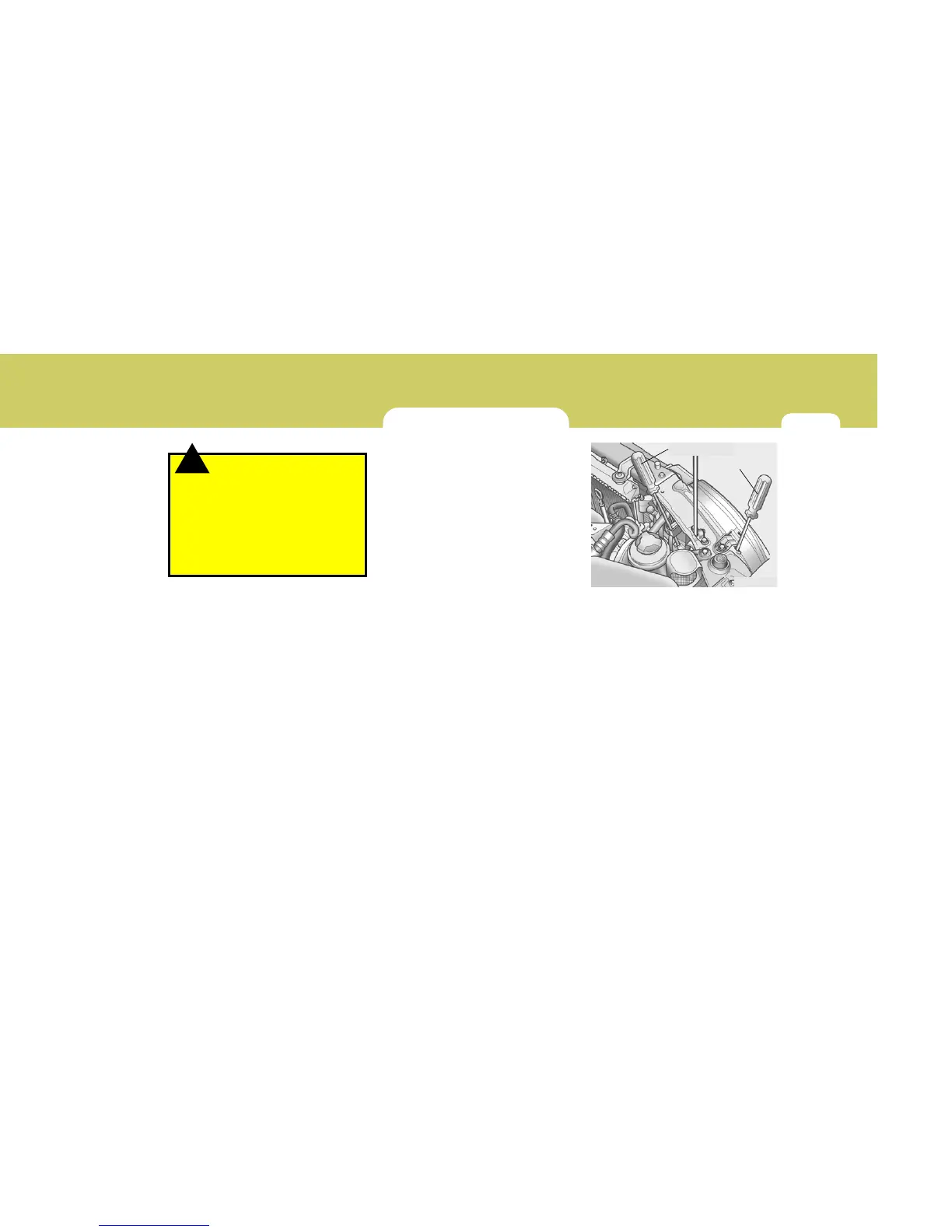

HEADLIGHT AIMING
ADJUSTMENT
G290A01FC-GAT
Before performing aiming adjustment,
make sure of the following.
1. Keep all tires inflated to the correct
pressure.
2. Place the vehicle on level ground
and press the front bumper and
rear bumper down several times.
Place the vehicle at a distance of
3,000 mm (118 in.) from the test
wall.
3. See that the vehicle is unloaded
(except for full levels of coolant,
engine oil and fuel, and spare tire,
jack, and tools).
4. Clean the head lights lens and turn
on the headlight (low beam).
G290A01FC
5. Open the hood.
6. Draw the vertical line (through the
center of each headlight beam pat-
tern) and the horizontal line (through
the center of each headlight beam
pattern) on the aiming screen.
And then, draw a horizontal paral-
lel line at 30 mm (1.18 in.) under
the horizontal line.
7. Adjust each cut-off line of the low
beam to the parallel line with a
phillips screwdriver - VERTICAL
AIMING.
8. Adjust each cut-off line of the low
beam to each vertical line with a
phillips screwdriver - HORIZON-
TAL AIMING.
Horizontal Aiming
Vertical Aiming
To Next Page
