Hyundai Matrix 2007 User Manual

6
DO-IT-YOURSELF MAINTENANCE
39

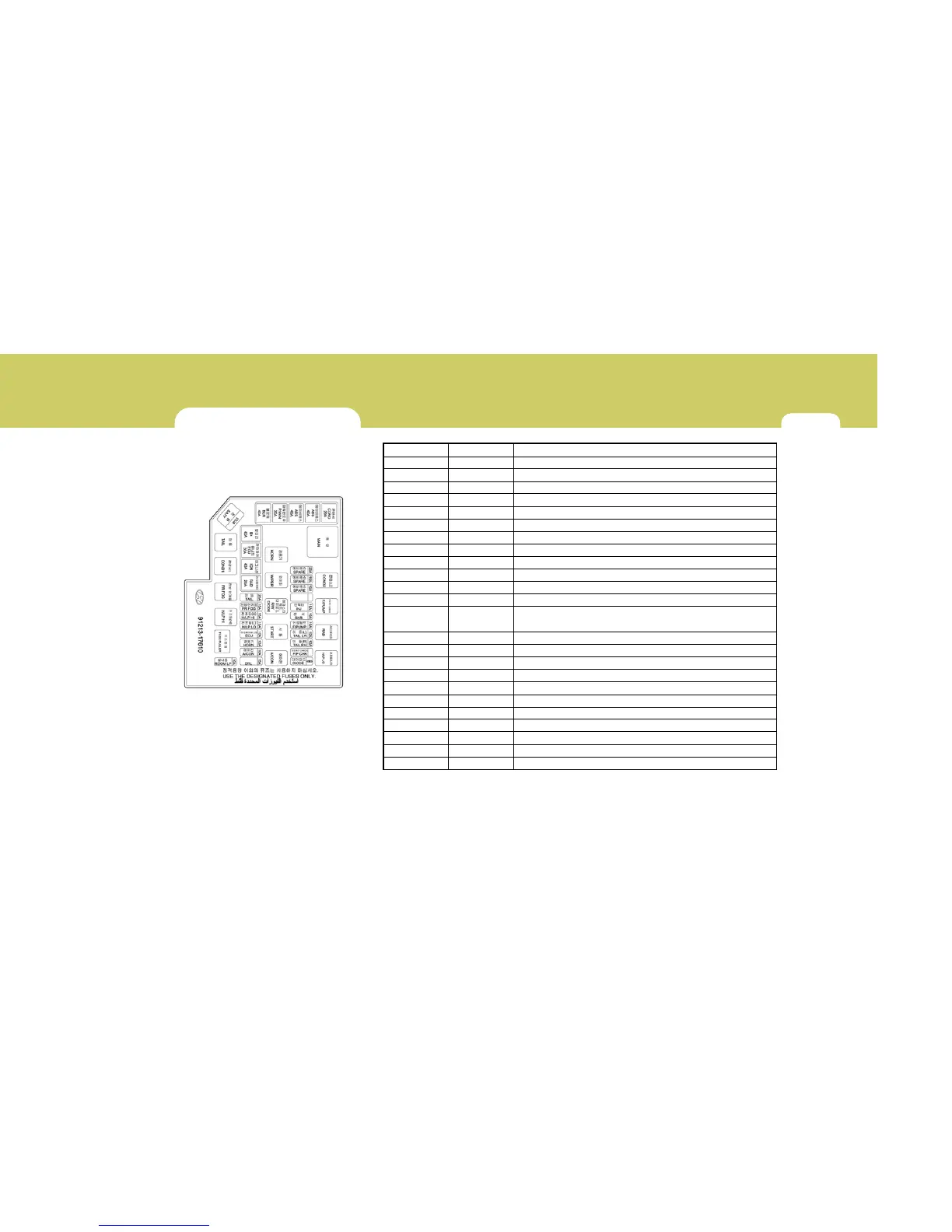

FUSE PANEL DESCRIPTION
G200C03FC-GAT
Engine Compartment
(Gasoline Engine)
G200C03FC
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of
printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
PROTECTED COMPONENTS
Generator
(A/CON, RR HTD, STOP, D/LOCK, HAZARD) Fuse
Generator, Engine control relay, ECM
Radiator fan relay
Start relay, Ignition switch
Blower relay
Power window relay
Condenser fan relay #1
ABS control module, ABS bleeding connector, ESP
ABS control module, ABS bleeding connector, ESP
Fuel pump relay
Injector, lgnition coil
MAP sensor, Oxygen sensor, CP sensor, Knock sensor,
Throttle position sensor
Audio, Room lamp, Overhead console lamp, lnstrument cluster
DRL control module
Horn relay
A/C relay
Front fog lamp relay
ECM, TCM
Tail lamp relay
Left rear combi lamp, Left position lamp, Left License lamp
Right rear combi lamp, Right position lamp, Right License lamp
Left head lamp
Right head lamp, (H/LP IND) Fuse
FUSE RATING
120A
40A
30A
20A
40A
40A
30A
20A
40A
40A
10A
15A
10A
10A
15A
10A
10A
15A
10A
20A
10A
10A
15A
15A
DESCRIPTION
ALT
B+
ECU
RAD
IGN
BLR
P/WIN
COND
ABS
ABS
F/PUMP
INJ
SNSR
ROOM LP
DRL
HORN
A/CON
FR FOG
ECU
LP
TAIL LH
TAIL RH
H/LP LH
H/LP RH
